Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

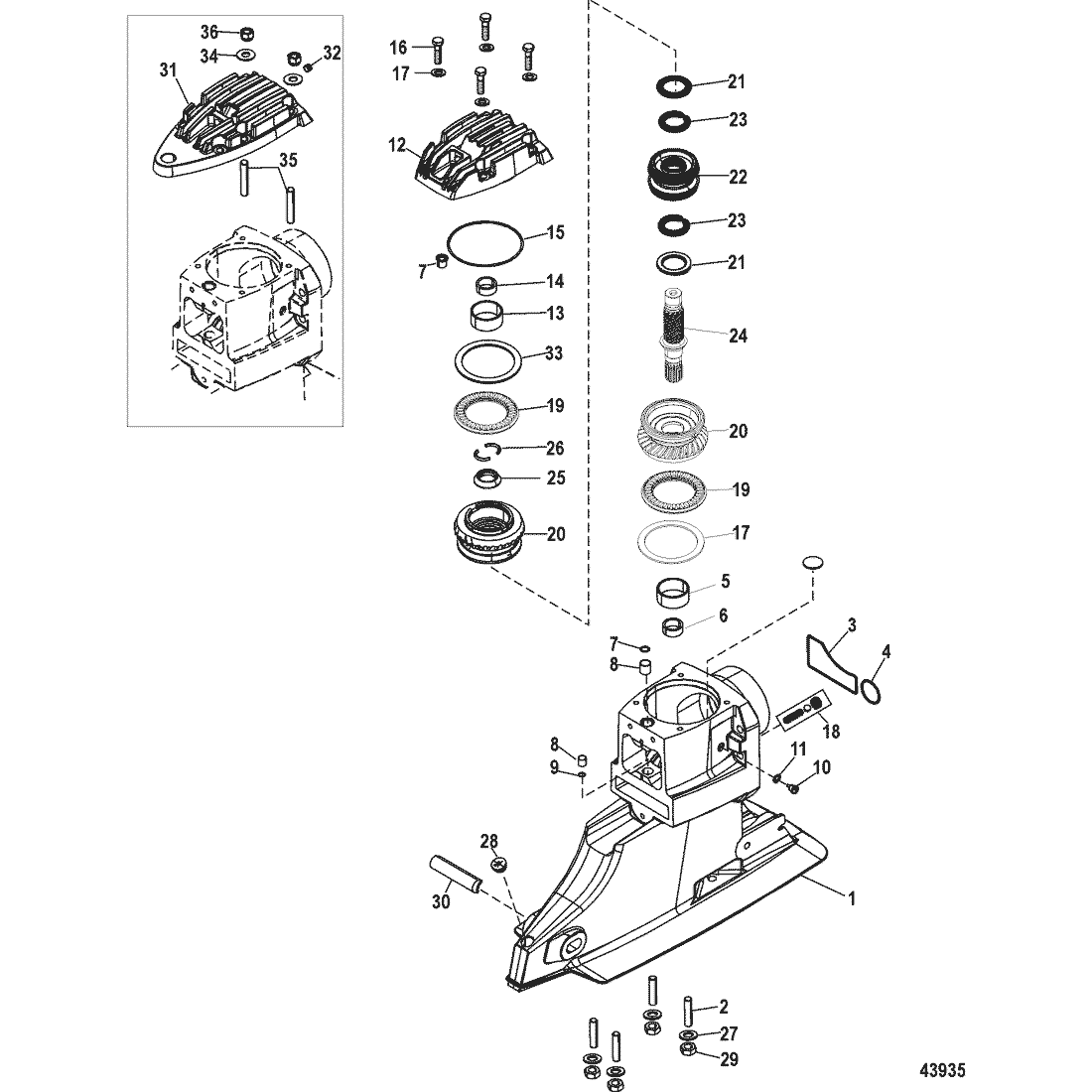

- 865440H56 HOUSING ASSEMBLY, Driveshaft - Complete (16/19) ACT $13,260.00 $11,876.32 1
- 865440H73 HOUSING ASSEMBLY, Driveshaft - Complete (16/19) ACT $13,260.00 $11,876.32 1
- 866459J04 HOUSING ASSEMBLY, Driveshaft - Complete (16/19) ACT $13,260.00 $11,876.32 1
1 865440H70 --HOUSING, Driveshaft - Basic ACT $3,366.57 $3,086.21 1
1 866459J00 --HOUSING, Driveshaft - Basic ACT $3,044.14 $2,790.63 1
2 8M0133358 ----STUD, (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 4
3 16755Q1 ----SEAL ACT $12.39 $12.10 1
4 8M0204681 ----O-RING, (1.424 x .103) 45710 SS $3.79 $3.69 1
5 861791 ----RACE ACT $73.99 $70.86 1
6 843240 ----BEARING ASSEMBLY, Roller ACT $11.59 $11.32 1
7 865866 ----PLUG, Shift Shaft Oil Seal ACT $7.09 $6.93 1
8 861209A1 ----BUSHING KIT ACT $40.49 $39.77 1
9 127091 ------SEAL ACT $8.79 $8.59 1
10 8M0058389 ----PLUG KIT, Drain - Magnetic 67892A06 SS $11.69 $11.41 1
11 8M0204693 ------SEAL 830749 SS $5.19 $5.08 1
12 865507A04 ----COVER ASSEMBLY, Top ACT $657.49 $618.18 1
12 866462A02 ----COVER ASSEMBLY, Top ACT $692.49 $651.31 1
13 861791 ------RACE ACT $73.99 $70.86 1
14 843240 ------BEARING ASSEMBLY, Roller ACT $11.59 $11.32 1
15 97387 --O-RING ACT $11.39 $11.12 1
16 58642 --SCREW, (.375-16 x 1.50) Stainless Steel ACT $4.29 $4.20 4
17 37828 --WASHER, (.390 x .625 x .062) Stainless Steel ACT $0.80 $0.79 4
18 17997A1 --SPRING KIT ACT $10.39 $10.15 1
19 861787 --BEARING ASSEMBLY ACT $40.99 $40.25 2
20 840898A3 --GEAR SET, (16/19) ACT $3,494.49 $3,203.22 1
21 861792 --BEARING ASSEMBLY ACT $45.99 $45.17 2
22 865344A01 --CLUTCH ASSEMBLY ACT $573.49 $539.49 1
23 93505 ----SPRING ACT $8.79 $8.59 2
24 812773T02 --DRIVESHAFT, Upper ACT $495.49 $473.22 1
25 86770 --COLLAR ACT $72.99 $70.14 1
26 8M0204675 --KEEPER 97351 SS $11.29 $11.02 2
27 861854 --WASHER, (.453 x .750 x .032) Stainless Steel ACT $4.19 $4.10 4
28 824928001 --PLUG, Rubber 824928 SS $5.49 $5.37 1
29 8M0143423 --NUT, (.437-20) 35053 SS $9.49 $9.27 4
30 808006 --INSERT, Trim Adjustment ACT $11.39 $11.12 1
31 840838T02 --COVER ASSEMBLY, Top 840838T1 SS $944.99 $888.93 1
32 390721 ----PLUG, Pipe (.125-27) Brass ACT $9.29 $9.07 1
33 864596058 --SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing ACT $41.99 $41.07 AR
33 864596059 --SHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing ACT $40.49 $39.61 AR
33 864596060 --SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing ACT $41.49 $40.67 AR
33 864596061 --SHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing ACT $42.49 $41.65 AR
33 864596062 --SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing ACT $41.49 $40.66 AR
33 864596063 --SHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing ACT $42.49 $41.65 AR
33 864596064 --SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing ACT $40.49 $39.77 AR
33 864596065 --SHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing ACT $40.49 $39.77 AR
33 864596066 --SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing ACT $40.49 $39.77 AR
34 37828 WASHER, (.390 x .625 x .062) Stainless Steel ACT $0.80 $0.79 6
35 840851 STUD ACT $26.69 $26.19 6
36 82671013 NUT, (.375-24) Stainless Steel ACT $4.69 $4.59 6
- 16709A2 SEAL KIT, Driveshaft Housing ACT $140.49 $132.00 1
