| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

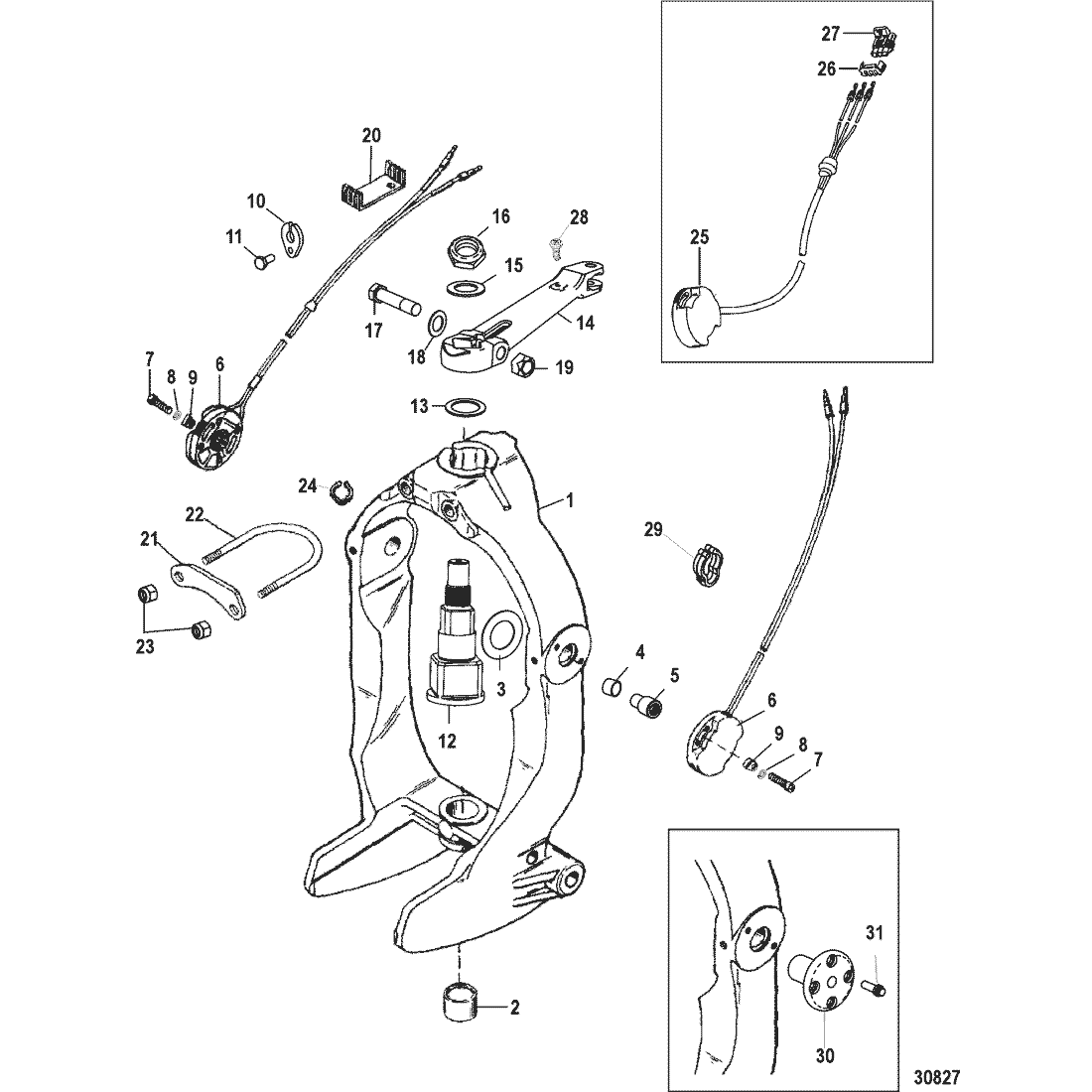

| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 822374A4 | SS |
|
$1,999.99 | $1,791.05 | 1 | |
| 1 | 8M0062440 | GIMBAL RING ASSEMBLY | 822374A14 | SS |
|
$1,999.99 | $1,791.05 | 1 | |
| 1 | 8M0063519 | GIMBAL RING ASSEMBLY | 866456A01 | SS |
|
$1,507.99 | $1,350.65 | 1 | |
| 1 | 822374A17 | GIMBAL RING ASSEMBLY | ACT |
|
$1,785.49 | $1,598.93 | 1 | ||
| 2 | 847638 | --BUSHING | ACT | $57.49 | $54.15 | 1 | |||
| 3 | 41721 | --WASHER | ACT | $7.89 | $7.71 | 2 | |||
| 4 | 847637 | --BUSHING | ACT | $31.29 | $30.69 | 2 | |||
| 5 | 86801 | SCREW, Hinge Pin | ACT | $35.49 | $34.74 | 2 | |||
| 6 | 805320A03 | SWITCH ASSEMBLY, Trim and Limit | 805320A1 | SS |
|
$176.99 | $159.19 | 1 | |
| 7 | 37978 | SCREW, (#10-32 x .750) Stainless Steel | ACT | $3.39 | $3.30 | 4 | |||
| 8 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 4 | |||
| 9 | 57008 | RETAINER | ACT | $3.99 | $3.91 | 4 | |||
| 10 | 12078 | CLAMP | ACT | $13.59 | $13.27 | 1 | |||
| 11 | 28635 | SCREW, (.250-20 x .620) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 12 | 98230A1 | SHAFT ASSEMBLY, Upper Swivel | ACT | $371.49 | $343.79 | 1 | |||
| 12 | 866718A01 | SHAFT ASSEMBLY, Upper Swivel | ACT |
|
$394.49 | $364.95 | 1 | ||
| 13 | 98548 | WASHER, (1.125 ) | ACT | $6.99 | $6.83 | 1 | |||
| 14 | 866322A01 | LEVER ASSEMBLY, Steering | 98262A1 | SS |
|
$313.99 | $283.00 | 1 | |
| 15 | 85344 | WASHER, (.750 Inside Diameter) | ACT | $2.79 | $2.72 | 1 | |||
| 16 | 8M2014641 | NUT, (.750-16) | 82671323 | SS |
|
$17.89 | $17.46 | 1 | |
| 17 | 807204 | SCREW, (.437-20 x 2.00) | ACT | $4.49 | $4.39 | 1 | |||
| 18 | 861854 | WASHER, (.453 x .750 x .032) Stainless Steel | ACT | $4.19 | $4.10 | 1 | |||
| 19 | 8M2008293 | NUT, (.437-20) | ACT | $1.20 | $1.18 | 1 | |||
| 20 | 79146 | RETAINER | ACT | $5.59 | $5.47 | 1 | |||
| 21 | 816510T | BRACKET | ACT | $69.49 | $65.22 | 1 | |||
| 22 | 805164 | U BOLT | ACT |
|
$37.49 | $36.83 | 1 | ||
| 22 | 8M0120158 | U BOLT | 866324 | SS |
|
$33.19 | $32.57 | 1 | |
| 23 | 862903 | NUT, (.375-24) | ACT |
|
$3.59 | $3.50 | 2 | ||
| 23 | 859116 | NUT, (.437-20) | ACT |
|
$5.09 | $4.98 | 2 | ||
| 23 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS |
|
$5.29 | $5.17 | 2 | |
| 24 | 818557 | CLAMP | ACT | $7.99 | $7.81 | 1 | |||
| 25 | 8M0107462 | SENDER ASSEMBLY, Trim, Analog | 863187A1 | NLA |
|
$287.99 | $259.34 | 1 | |
| 25 | 8M0095310 | SENDER ASSEMBLY, Trim, Digital | ACT |
|
$178.49 | $160.85 | 1 | ||
| 26 | 831957 | --RETAINER | ACT | $2.59 | $2.53 | 1 | |||
| 27 | 8307973 | --CONNECTOR | ACT | $5.69 | $5.56 | 1 | |||
| 28 | 45742 | SCREW, (.190-32 x .312) | ACT | $1.10 | $1.08 | 1 | |||
| 28 | 8M0113176 | SCREW, (#10-24 x .38) | 807754 | SS |
|
$1.10 | $1.08 | 1 | |
| 29 | 818557001 | CLAMP | ACT | $9.89 | $9.66 | 1 | |||
| 30 | 8219971 | PIN, Hinge | ACT |
|
$226.99 | $204.27 | 2 | ||
| 31 | 840907 | SCREW, (.250-20 x .750) | ACT |
|
$4.69 | $4.59 | 8 | ||
| NS | 805134A4 | ROTOR KIT, Trim Sender | ACT |
|
$44.49 | $43.62 | AR | ||
| NS | 805130A6 | SENDER KIT, Dual Station | ACT | $120.73 | $108.86 | 1 |
