| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

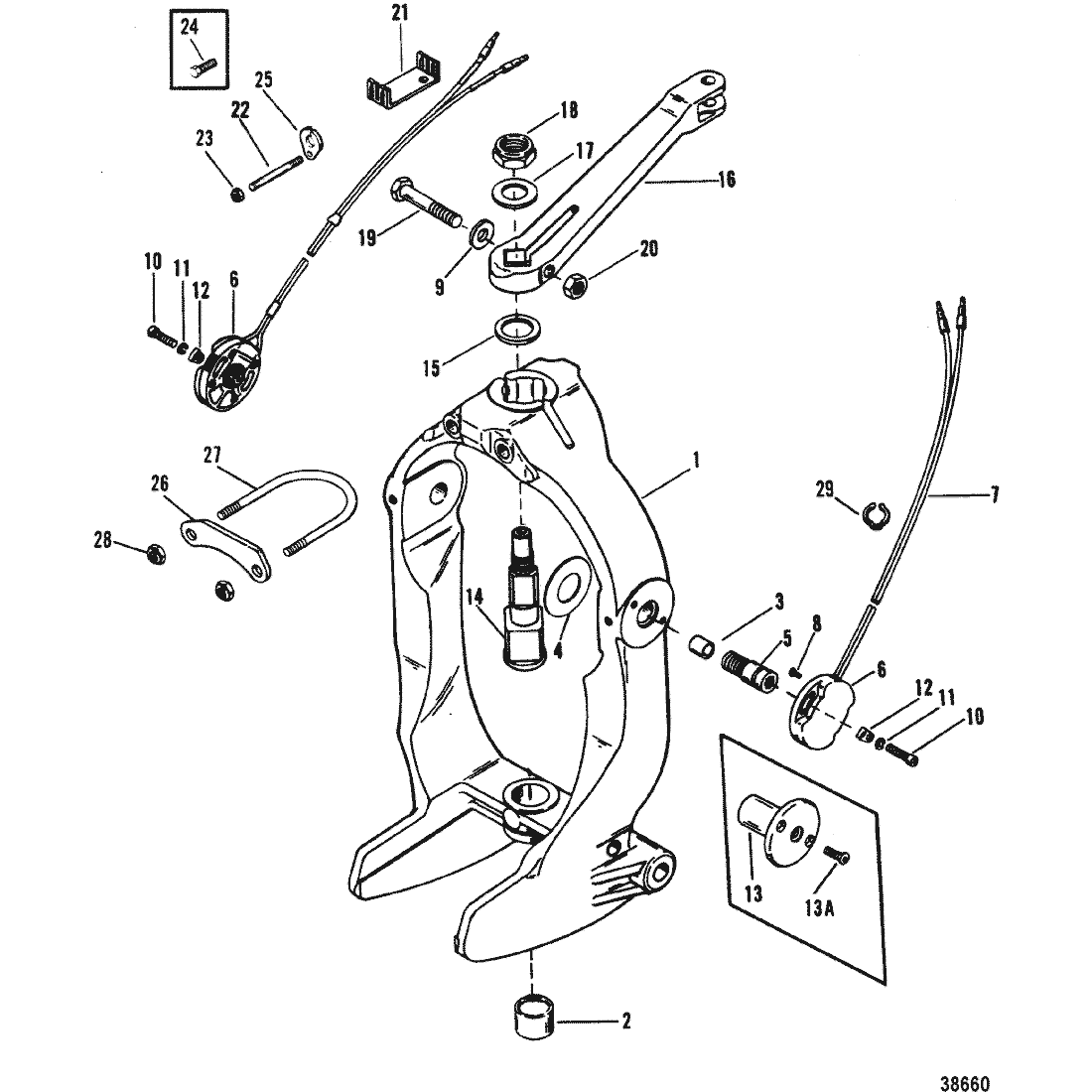

| 1 | 8M0062440 | GLMBAL RING ASSEMBLY, For Use With Trim Senders | 44211A2 | SS |
|
$1,999.99 | $1,833.18 | 1 | |
| 2 | 847638 | --BEARING, For Use With Trim Senders | 99352 | SS |
|
$57.49 | $55.31 | 1 | |
| 3 | 847637 | --BUSHING, For Use With Trim Senders | ACT | $31.29 | $30.69 | 2 | |||
| 4 | 41721 | --WASHER, For Use With Trim Senders | ACT | $7.89 | $7.71 | 2 | |||
| 5 | 86801 | SCREW, Hinge Pin, For Use With Trim Senders | ACT | $35.49 | $34.74 | 2 | |||
| 6 | 64947 | SENDER, For Use With Trim Senders | ACT |
|
$22.99 | $22.51 | 1 | ||
| 7 | 19216 | HARNESS ASSEMBLY, For Use With Trim Senders | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 46942 | SCREW, (#6-20 x .3125), For Use With Trim Senders | ACT |
|
$1.10 | $1.08 | 2 | ||
| 6 | 805320A03 | SWITCH ASSEMBLY, For Use With Trim Senders | 805320A1 | SS |
|
$176.99 | $166.29 | 1 | |
| 9 | 861854 | WASHER, For Use With Trim Senders | 91964 | SS |
|
$4.19 | $4.10 | 1 | |
| 10 | 37978 | SCREW, (#10-32 x .750) Stainless Steel, For Use With Trim Senders | ACT | $3.39 | $3.30 | 4 | |||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel, For Use With Trim Senders | ACT | $1.20 | $1.18 | 4 | |||
| 12 | 57008 | RETAINER, For Use With Trim Senders | ACT | $3.99 | $3.91 | 4 | |||
| 1 | 822374A17 | GIMBAL RING ASSEMBLY, For Use Without Trim Senders | 822374A3 | SS |
|
$1,785.49 | $1,636.55 | 1 | |
| 2 | 847638 | --BUSHING, For Use Without Trim Senders | ACT | $57.49 | $55.31 | 1 | |||
| 4 | 41721 | --WASHER, For Use Without Trim Senders | ACT | $7.89 | $7.71 | 2 | |||
| 13 | 821997 | PIN, Hinge, For Use Without Trim Senders | ACT | $200.99 | $189.29 | 2 | |||
| 13A | 821579 | SCREW, (#10-24 x .500), For Use Without Trim Senders | ACT | $4.79 | $4.69 | 4 | |||
| 14 | 98230A1 | SHAFT ASSEMBLY | ACT | $371.49 | $354.97 | 1 | |||
| 15 | 98548 | WASHER, (1.125 ) | ACT | $6.99 | $6.83 | 1 | |||
| 16 | 866322A01 | LEVER ASSEMBLY | 98262A1 | SS |
|
$313.99 | $295.62 | 1 | |
| 17 | 85344 | WASHER, (.750 Inside Diameter) | ACT | $2.79 | $2.72 | 1 | |||
| 18 | 8M2014641 | NUT, (.750-16) | 25599 | SS |
|
$17.89 | $17.46 | 1 | |
| 19 | 807204 | SCREW, (.437-20 x 2.00) | 32995 | SS |
|
$4.49 | $4.39 | 1 | |
| 20 | 8M2008293 | NUT, (.437-20) | 98533 | SS |
|
$1.20 | $1.18 | 1 | |
| 21 | 79146 | RETAINER | ACT | $5.59 | $5.47 | 1 | |||
| 22 | 8M0034450 | STUD, (.250-20/.250-28 x 1.01) | 12097 | SS |
|
$13.59 | $13.27 | 1 | |
| 23 | 8267119 | NUT, (.250-28) | 13438 | SS |
|
$2.59 | $2.53 | 1 | |
| 24 | 28635 | SCREW, (.250-20 x .620) Stainless Steel | ACT |
|
$1.80 | $1.76 | 1 | ||
| 25 | 12078 | CLAMP | ACT | $13.59 | $13.27 | 1 | |||
| 26 | 816510T | BRACKET | ACT | $69.49 | $66.61 | 1 | |||
| 27 | 805164 | U BOLT | ACT | $37.49 | $36.83 | 1 | |||
| 28 | 862903 | NUT, (.375-24) | 134371 | SS |
|
$3.59 | $3.50 | 2 | |
| 29 | 818557 | CLAMP | ACT | $7.99 | $7.81 | 1 |
