Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

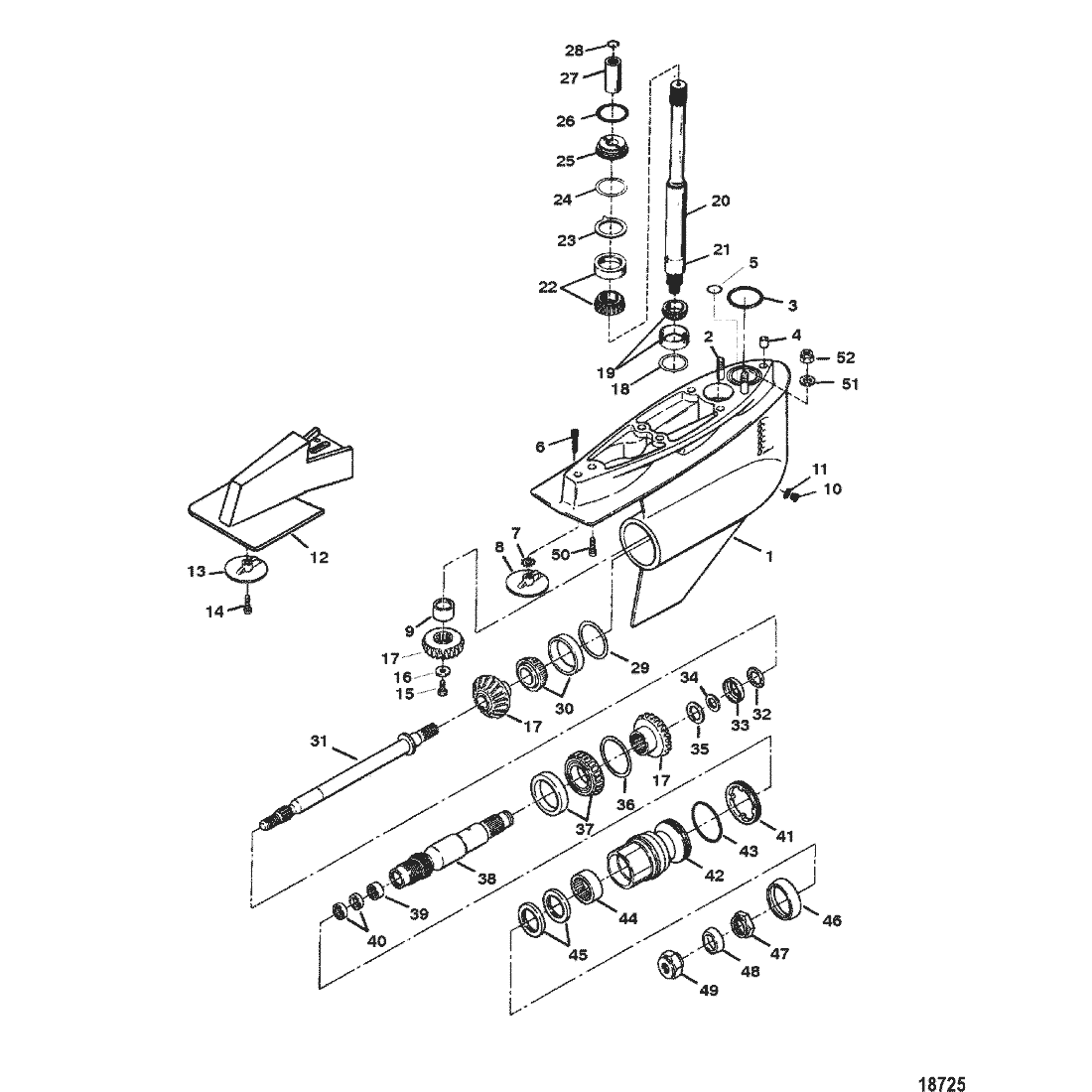

-- 8M0046738 GEAR HOUSING ASSEMBLY 8866A20 SS $6,811.43 $6,334.49 1
-- 8M0046738 GEAR HSG (1.8:1 Ratio) 8866A32 SS $6,811.43 $6,334.49 1
-- 8M0046735 GEAR HSG (1.65:1 Ratio) 8866A24 SS $6,811.43 $6,334.49 1
-- 8M0046733 GEAR HSG (1.50:1 Ratio) 8866A19 SS $6,811.43 $6,334.49 1
1 8866G01 --GEAR HOUSING ASSEMBLY, 8 Hole Water Pick-Up 8866A18 SS $0.00 $0.00 1
1 8866G01 --GEAR HOUSING ASSEMBLY, 9 Hole Water Pick-Up 8866A23 SS $0.00 $0.00 1
2 8M0133358 ----STUD, (.437-14/.437-20 x 2.060) 579201 SS $17.29 $16.94 2
3 822370 ----O-RING, (2.362 x .103) ACT $4.19 $4.10 1
4 805344 ----SEAL, (.625 Outside Diameter) ACT $4.19 $4.10 1
5 8M0204680 ----SEAL 45577 SS $4.29 $4.20 1
6 8M0204686 ----SCREW, (.437-14 x 1.750) 806327 SS $6.99 $6.83 1
7 806210 ----LOCKWASHER, (.437) ACT $1.80 $1.76 1
8 76214Q5 ----TRIM TAB ASSEMBLY 76214A2 SS $29.99 $29.38 1
9 86754T ----BEARING, Roller 86754 SS $81.99 $76.91 1
10 8M0058389 ----SCREW 14834A1 SS $11.69 $11.41 2
11 191833 ----WASHER, Fiber 19183 SS $1.45 $1.42 1
12 805702A1 ----PLATE ASSEMBLY, Extension NLA $0.00 $0.00 1
13 762144 ------ANODE ACT $20.29 $19.89 1
14 8M0204686 ------SCREW, (.437-14 x 1.750) 806327 SS $6.99 $6.83 1
15 34353 --SCREW, (.375-16 x 1.00) ACT $2.59 $2.53 1
16 805068 --WASHER ACT $17.69 $17.26 1
17 822535A1 --GEAR SET, (16/27) ACT $1,131.49 $1,013.31 1
17 822535A1 --GEAR SET, (16/27) (1.81:1 Ratio) ACT $1,131.49 $1,013.31 1
17 824517A1 --GEAR SET, (18/25) (1.65:1 Ratio) ACT $1,008.49 $902.95 1
17 805448A1 --GEAR SET, (15/19) (1.50:1 Ratio) ACT $874.49 $796.41 1
18 92914A1 --SHIM KIT ACT $48.49 $47.57 AR
19 8M0103470 --BEARING ASSEMBLY, Tapered Roller 66668A1 SS $45.99 $45.17 1
20 858517A3 --DRIVESHAFT 805370A1 SS $792.99 $721.80 1
21 815901 ----RACE, Bearing ACT $63.49 $59.80 1
22 8M0103473 --BEARING ASSEMBLY, Tapered Roller 86748A1 SS $53.99 $50.74 1
23 86739 --TAB WASHER ACT $18.19 $17.75 1
24 86749A1 --SHIM KIT ACT $45.99 $45.09 AR
25 8M0046302 --SPACER 92916 SS $15.30 $14.92 1
26 20826 --O-RING, (2.230 x .139) ACT $5.29 $5.17 1
27 88243A3 --COUPLING ASSEMBLY ACT $116.49 $105.03 1
28 88242 ----RING, Retaining ACT $1.10 $1.08 1
29 87157A1 --SHIM KIT ACT $64.99 $61.23 AR
30 8M0103471 --BEARING ASSEMBLY, Tapered Roller 86752A1 SS $70.99 $66.79 1
31 865322T --PROPELLER SHAFT, Inner 805073T SS $1,769.49 $1,584.73 1
32 805322 --BEARING, Caged Roller ACT $58.99 $55.47 1
33 8M0177335 --BUSHING 805072 SS $109.49 $98.49 1
34 805627A1 --SHIM ASSEMBLY ACT $21.39 $20.95 AR
35 8M2012170 --RING, Retaining 805096 SS $5.69 $5.56 1
36 805078A1 --SHIM ASSEMBLY ACT $79.99 $75.18 AR
37 8M0103477 --BEARING ASSEMBLY, Tapered Roller 805182A1 SS $171.49 $154.61 1
38 865315A02 --PROPELLER SHAFT, Outer 805074A2 SS $1,564.99 $1,401.44 1
39 57410 ----BEARING, Roller ACT $35.49 $34.78 1
40 8M0033407 ----SEAL, Oil 805077 SS $87.49 $82.33 2
41 8M2013382 --RETAINER 805330 SS $122.99 $110.51 1
42 865876A01 --CARRIER ASSEMBLY, Bearing 805329A1 SS $638.99 $581.75 1
43 805331 ----O-RING ACT $1.99 $1.95 1
44 805079T ----BEARING, Roller 805079 SS $182.99 $164.60 1
45 861694 ----SEAL, Oil 805080 SS $65.99 $61.92 2
46 805100 THRUST HUB, Front 805100T SS $37.87 $37.19 1
47 8M0105210 PROP NUT, Front 805092 SS $65.17 $61.37 1
48 805101T THRUST HUB, Rear ACT $43.94 $43.16 1
49 862907 PROP NUT, Rear 805093 SS $22.73 $22.33 1
50 90084 SCREW, (.437-14 x 1.500) ACT $4.59 $4.49 1
51 861854 WASHER 91964 SS $4.19 $4.10 2
52 8M0143423 NUT, (.437-20) 35053 SS $9.49 $9.27 2
- 76868A04 SEAL KIT 76868A2 SS $161.99 $145.67 -
- 16709A2 SEAL KIT ACT $140.49 $126.37 -
- 809666A02 PROP NUT/ANODE KIT, Aluminum ACT $189.99 $171.29 1
- 809666A03 PROP NUT/ANODE KIT, Magnesium ACT $201.99 $181.81 1
