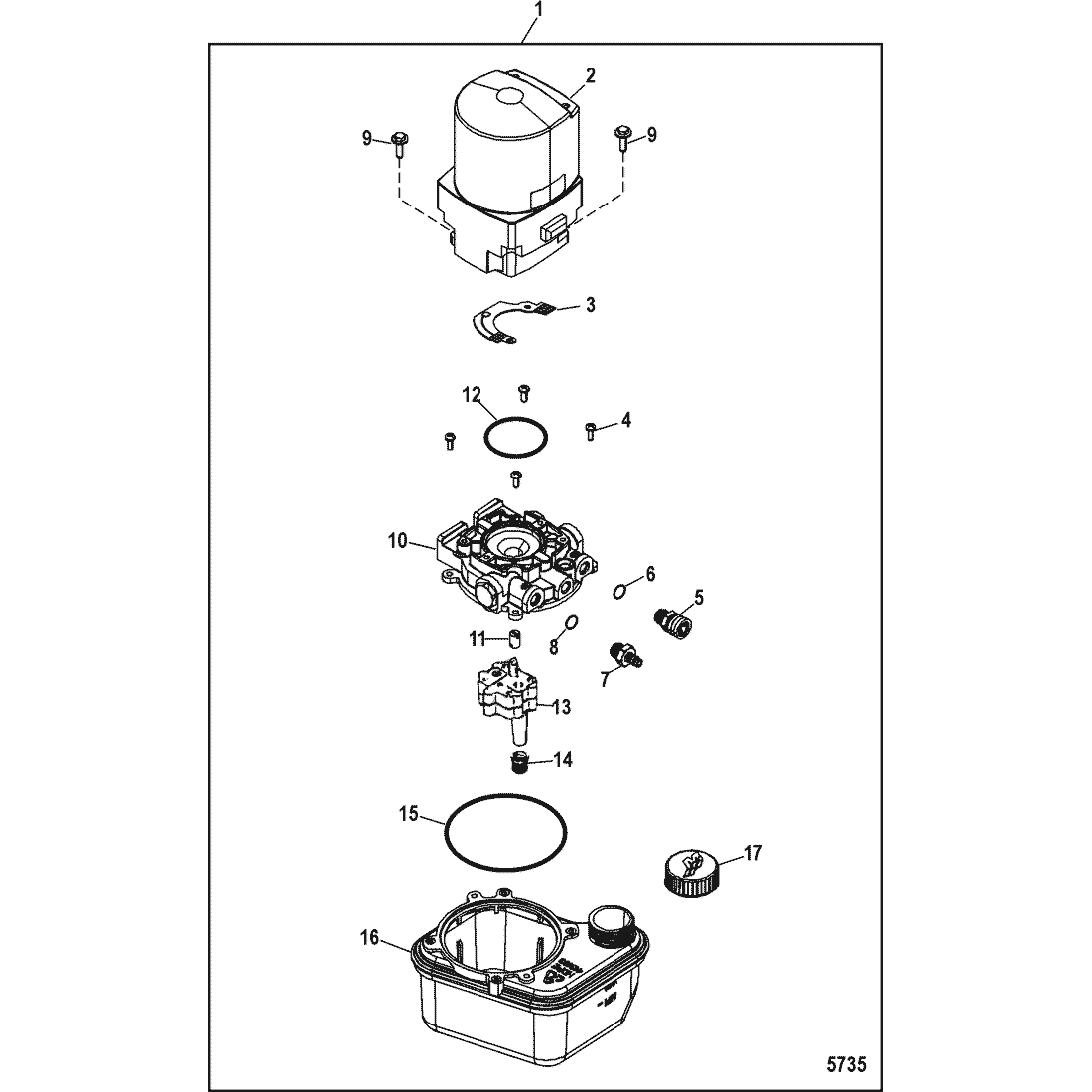

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 865380A13 | PUMP/MOTOR ASSEMBLY, Trim - 12 Volt | ACT |
|
$1,168.49 | $1,070.80 | 1 | ||
| 2 | 891736T | --MOTOR ASSEMBLY, Complete | ACT |
|
$378.99 | $362.00 | 1 | ||
| 3 | 892608 | ----BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter | ACT | $18.79 | $18.42 | 1 | |||
| 4 | 883167 | --SCREW, (#8-32) | ACT | $6.69 | $6.54 | 4 | |||
| 5 | 865413002 | --FITTING, Stainless Steel, Female Quick Connect | 865413001 | SS |
|
$46.49 | $45.66 | 1 | |
| 6 | 891868 | --O-RING | ACT | $11.39 | $11.12 | 1 | |||
| 7 | 865412001 | --FITTING, Stainless Steel, Male Quick Connect | ACT | $65.99 | $63.48 | 1 | |||
| 8 | 891868 | --O-RING | ACT | $11.39 | $11.12 | 1 | |||
| 9 | 823444 | --SCREW | ACT | $2.99 | $2.92 | 2 | |||
| 10 | 808728T | --ADAPTER ASSEMBLY | ACT |
|
$416.99 | $398.39 | 1 | ||
| 11 | 803852 | ----COUPLING | ACT | $63.99 | $61.40 | 1 | |||
| 12 | 89498 | ----O-RING, Motor End | ACT | $11.39 | $11.12 | 1 | |||
| 13 | 18529 | ----PUMP ASSEMBLY, With Screws | ACT | $417.99 | $399.14 | 1 | |||
| 14 | 89496 | ----FILTER | ACT | $13.09 | $12.78 | 2 | |||
| 15 | 17645 | ----O-RING, Reservoir End | ACT | $19.49 | $19.07 | 1 | |||
| 16 | 883166A2 | --RESERVOIR KIT, With Filters and O-Ring | ACT |
|
$123.49 | $116.31 | 1 | ||
| 17 | 8M0188327 | ----CAP, Standard | 861597 | NLA |
|
$8.29 | $8.10 | 1 | |
| 17 | 8M0188327 | ----CAP, Oil Reservoir, Rough Water Application | 865448A01 | SS |
|
$8.29 | $8.10 | OPT | |
| NS | 812498A1 | VALVE KIT, Relief, Up Pressure | ACT | $107.49 | $101.16 | 1 | |||
| NS | 812499A1 | VALVE KIT, Relief, Down Pressure | ACT | $118.99 | $111.67 | 1 | |||
| NS | 95353A1 | VALVE KIT, Relief | ACT | $68.99 | $66.37 | 1 | |||
| NS | 18545A1 | REPAIR KIT | ACT | $174.99 | $164.57 | 1 | |||
| NS | 891737 | BRUSH KIT | ACT | $52.49 | $50.34 | 1 |
