Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

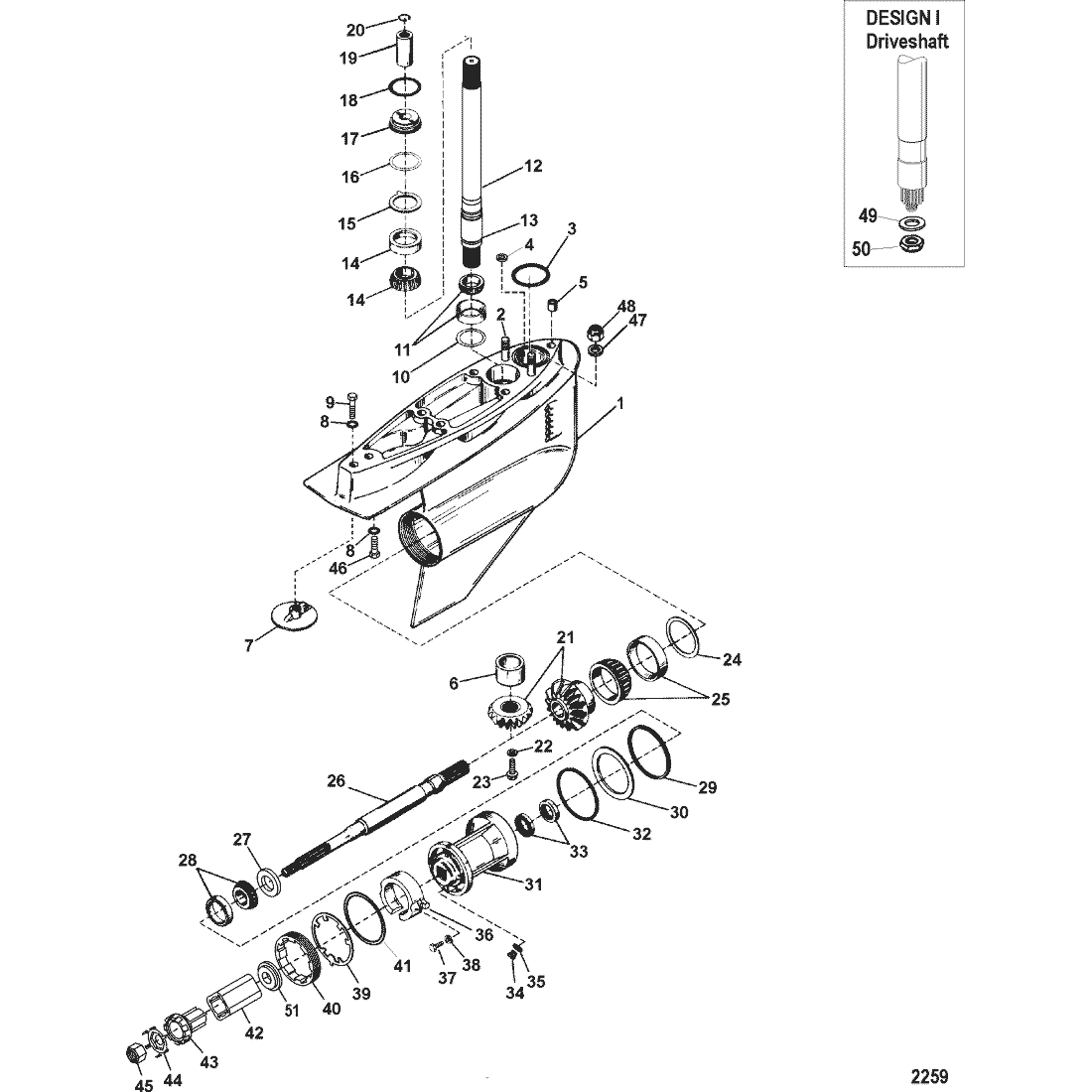

_ 8866A63 GEAR HOUSING ASSEMBLY (Complete) 8866A15 SS $6,811.43 $6,334.49 1
_ 8866A55 GEAR HOUSING ASSEMBLY (Complete) NLA $0.00 $0.00 1
_ 8866A63 GEAR HOUSING ASSEMBLY (Complete) ACT $6,811.43 $6,334.49 1
1 8866A64 --GEAR HOUSING ASSEMBLY ACT $3,636.93 $3,257.42 1
1 8866A54 --GEAR HOUSING ASSEMBLY NLA $0.00 $0.00 1
1 8866A64 --GEAR HOUSING ASSEMBLY ACT $3,636.93 $3,257.42 1
2 8M0133358 ----STUD, (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 2
3 8M0214925 ----O-RING 33465 SS $5.29 $5.17 1
4 8M0204680 ----SEAL 455771 SS $4.29 $4.20 1
5 805344 ----SEAL, (.625 Outside Diameter) ACT $4.19 $4.10 1
6 86754T ----BEARING ASSEMBLY, Roller ACT $81.99 $76.91 1
7 76214Q5 ----ANODE KIT ACT $29.99 $29.38 1
8 806210 ----LOCKWASHER, (.437) ACT $1.80 $1.76 1
9 8M0204686 ----SCREW, (.437-14 x 1.750) 806327 SS $6.99 $6.83 1
10 92914A1 --SHIM KIT ACT $48.49 $47.57 AR
11 8M0103470 --BEARING ASSEMBLY, Tapered Roller 66668A1 SS $45.99 $45.17 1
12 858517A3 --DRIVESHAFT ASSEMBLY, (16.085 Long) ACT $792.99 $721.80 1
13 815901 ----RACE, Bearing ACT $63.49 $59.80 1
14 8M0103473 --BEARING ASSEMBLY, Tapered Roller 86748A1 SS $53.99 $50.74 1
15 86739 --TAB WASHER ACT $18.19 $17.75 1
16 86749A1 --SHIM KIT ACT $45.99 $45.09 AR
17 8M0046302 --SPACER 92916 SS $15.30 $14.92 1
18 20826 --O-RING, (2.230 x .139) ACT $5.29 $5.17 1
19 88243A3 --COUPLING ASSEMBLY ACT $116.49 $105.03 1
20 88242 ----RING, Retaining ACT $1.10 $1.08 1
21 14063A1 --GEAR SET, (15/19) ACT $899.99 $819.31 1
22 805068 --WASHER ACT $17.69 $17.26 1
23 34353 --SCREW, (.375-16 x 1.00) ACT $2.59 $2.53 1
24 87157A1 --SHIM KIT ACT $64.99 $61.23 AR
25 8M0103471 --BEARING ASSEMBLY, Tapered Roller 86752A1 SS $70.99 $66.79 1
26 41630T --PROPELLER SHAFT ACT $999.99 $910.64 1
27 90886 --WASHER ACT $68.49 $64.35 1
28 8M0103470 --BEARING ASSEMBLY, Tapered Roller 66668A1 SS $45.99 $45.17 1
29 67440T --LOAD RING ACT $41.99 $41.24 1
30 42256 --THRUST WASHER, (.105 Inch Thick) ACT $33.99 $33.25 1
31 41641A18 --CARRIER ASSEMBLY, Bearing 41641A8 NLA $423.49 $392.06 1
32 8M0214920 ----O-RING 31534 SS $6.29 $6.15 1
33 8M0204670 ----SEAL 76868 SS $19.19 $18.73 2
34 8M0058389 ----FITTING KIT, Magnetic, Plug Fill/Drain 67892A1 SS $11.69 $11.41 1
35 191833 ------WASHER 191832 SS $1.45 $1.42 1
36 806188Q01 ----ANODE ASSEMBLY 806188A1 SS $36.99 $36.34 1
37 806290 ------SCREW, (#10-32 x .625) ACT $1.20 $1.18 2
38 69432 ------LOCKWASHER, External (#10) ACT $1.00 $0.98 2
39 18323 ----TAB WASHER ACT $24.89 $24.39 1
40 8M0168577 --RETAINER 79448 SS $43.49 $42.72 1
41 863195 --SPACER NLA $0.00 $0.00 1
42 835290Q1 DRIVE SLEEVE, Plastic 835290A1 SS $31.16 $30.61 1
43 826074Q1 ADAPTOR, Brass, Propeller 826074T1 SS $39.38 $38.68 1
44 816629Q TAB WASHER 816629 SS $5.90 $5.80 1
45 52707Q1 PROP NUT KIT, (.750-16) ACT $16.41 $16.12 1
46 90084 SCREW, (.437-14 x 1.500) ACT $4.59 $4.49 1
47 861854 WASHER, (.453 x .750 x .032) Stainless Steel ACT $4.19 $4.10 2
48 8M0143423 NUT, (.437-20) 35053 SS $9.49 $9.27 2
49 86746 WASHER ACT $16.99 $16.62 1
50 20739 NUT, (.750-16) ACT $5.89 $5.76 1
51 835467Q01 THRUST HUB 8354671 SS $41.60 $40.85 1
- 888758Q02 ANODE KIT, Aluminum (Bravo I) 888758A1 SS $96.99 $91.35 AR
- 888757Q02 ANODE KIT, Magnesium (Bravo I) 888757A1 SS $137.99 $124.19 AR
