Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

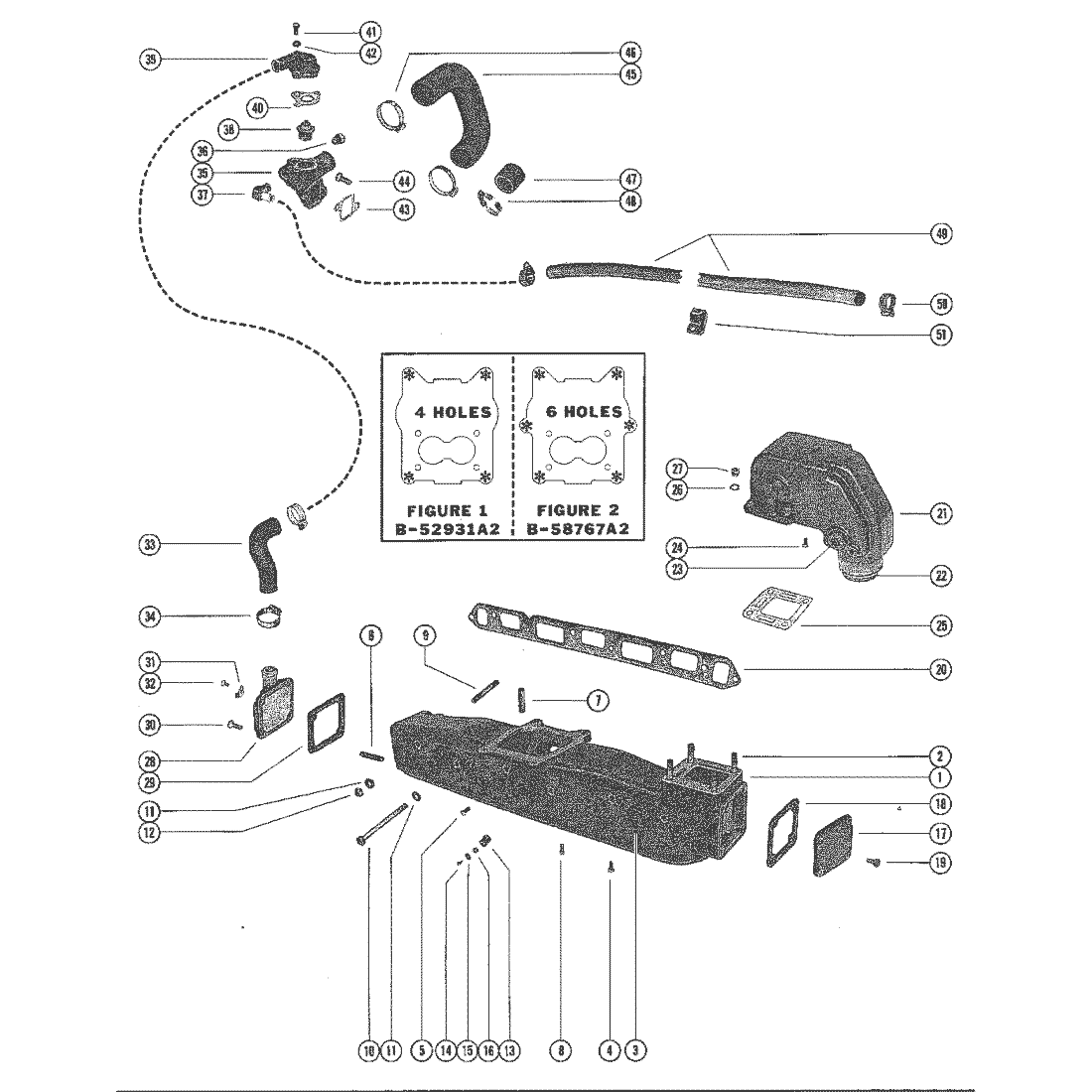

1 58759A14 EXHAUST MANIFOLD ASSEMBLY (4 MOUNTING HOLES-SEE FIGURE #1) 52969A1 SS $0.00 $0.00 1
1 58759A14 EXHUST MANIFOLD ASSEMBLY (6 MOUNTING -SEE FIGURE #2) 58759A1 SS $0.00 $0.00 1
2 8M0204664 --STUD, EXHAUST MANIFOLD TO EXHIUST ELBOW (1 3/4") 49545 SS $2.99 $2.92 4
3 48118 --PLUG, EXHUST MANIFOLD NLA $0.00 $0.00 4
4 68307 --PLUG, PIPE-EXHAUST MANIFOLD (1/8-27) ACT $12.29 $12.00 1
5 8M0204652 --PLUG, PIPE-EXAHUST MANIFOLD (1/4-18) 32561 SS $6.79 $6.64 1
6 54177 --STUD, ALERNATOR BRACE ATTACHING NLA $0.00 $0.00 1
7 55644 --TUBE, HEAT-EXHAUST MANIFOLD NLA $0.00 $0.00 1
8 98256 --SCREW, EXHAUST MANIFOLD (1/2") 20776 SS $0.00 $0.00 2
9 52093 STUD, EXHAUST MANIFOLD TO CYLINDER BLOCK (5 1/4") NLA $0.00 $0.00 2
10 52143 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 3/4") NLA $0.00 $0.00 4
11 20553 WASHER, EXHAUST MANIFOLD SCREW AND STUD ACT $1.50 $1.47 6
12 49838 NUT, EXHAUST MANIFOLD STUD ACT $1.10 $1.08 2
13 22740 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD 93/8")- ACT $5.09 $4.98 1
13 60517 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8") NLA $0.00 $0.00 1
13 60516 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (9/16") NLA $0.00 $0.00 1
14 32228 SCREW, WIRING HARNESS CLAMP FASTENIGN (5/8") 29240 SS $1.80 $1.76 3
15 24676 WASHER, WIRING HARNESS CLAMP FASTING SCREW ACT $1.50 $1.47 3
16 8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW(EARLY MODELS) 22789 SS $1.10 $1.08 1
17 73813A1 END CAP, EXHAUST MANIFOLD (REAR) 54870 SS $19.99 $19.56 1
18 480431 GASKET, END CAP TO EXHAUST MANIFOLD 48043 SS $5.49 $5.37 1
19 23703 SCREW, END CAP TO EXHAUST MANIFOLD (7/8") 25038 SS $1.64 $1.60 4
17 73813A1 END CAP, EXHAUST MANIFOLD (REAR) ACT $19.99 $19.56 1
18 807218 GASKET, END CAP TO EXHAUST MANIFOLD 73814 SS $4.69 $4.59 1
19 25299 SCREW, END CAP TO EXHAUST MANIFOLD (3/4") NLA $0.48 $0.47 4
20 46401 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD ACT $20.99 $20.62 1
21 76351A04 EXHAUST ELBOW ASSEMBLY (SERIAL #AN DBELOW) 60426A1 SS $414.49 $395.93 1
21 76351A04 EXHAUST ELBOW ASSEMBLY (SERIAL # AND UP) 76351A1 SS $414.49 $395.93 1
22 58616A2 --TUBE, WATER SEPARATION-EXHAUST ELBOW 58616A1 SS $160.49 $150.83 1
23 48118 --PLUG, EXHAUST ELBOW (1-14)-EARLY MODELS NLA $0.00 $0.00 4
23 416223 --PLUG, EXHAUST ELBOW (3/4-14)-LATE MODELS 33198 SS $3.49 $3.40 4
24 68307 --PLUG, PIPE-EXHAUST ELBOW (1/8-27) ACT $12.29 $12.00 1
25 997772 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD 52076 SS $4.59 $4.49 1
26 35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD 37459 SS $1.20 $1.18 4
27 49838 NUT, EXHAUST TO ELBOW TO EXHAUST MANIFOLD STUD ACT $1.10 $1.08 4
28 60252A2 END CAP/CONNECTOR, EXHAUST (FRONT) 60252 SS $161.49 $152.09 1
29 480431 GASKET, END CAP/ CONNECTOR TO EXHAUST MANIFOLD 48043 SS $5.49 $5.37 1
30 23703 SCREW, END CAP/ CONNECTOR TO EXHAUST MANIFOLD (7/8") 25038 SS $1.64 $1.60 4
30 37562 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1") ACT $2.99 $2.92 4
31 33361 CLIP, WIRING HARNESS RETAINER EARLY MODELS NLA $0.00 $0.00 1
32 98256 SCREW, WIRING HARNESS RETAINING CLIP EARLY MODELS 20776 SS $0.00 $0.00 1
33 52481 HOSE, WATER DISTRIBUTION BLOCK TO END CAP/ CONNECTOR NLA $55.42 $53.32 1
34 815504220 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND END CAP CONNECTO 32880 SS $7.59 $7.42 2
35 861493A07 BLOCK ASSEMBLY, WATER DISTRIBUTION-CYLINDER BLOCK 47587A2 SS $193.49 $181.99 1
36 8M0180565 --PLUG, PIPE-WATER DISTRIBUTION BLOCK 32803 SS $7.99 $7.81 1
36 328022 --PLUG, PIPE-WATER DISTRIBUTION BLOCK 32802 SS $7.59 $7.42 1
35 861493A07 BLOCK ASSEMBLY, WATER DISTRIBUTION-CYLINDER BLOCK 63908A2 SS $193.49 $181.99 1
36 328022 --PLUG, PIPE-WATER DISTRIBUTION BLOCK 32802 SS $7.59 $7.42 2
37 53509 ELBOW, WATER DISTRIBUTION BLOCK NLA $0.00 $0.00 1
38 59078 THERMOSTAT ACT $39.49 $38.71 1
39 861493A07 COVER ASSEMBLY, THERMOSTAT-WATER DISTRIBUTION BLOCK 60372A1 SS $193.49 $181.99 1
40 475901 GASKET, THERMOSTAT COVER 47590 SS $3.39 $3.30 1
41 53512 SCREW, COVER TO DISTRIBUTION BLOCK (3/4") NLA $0.00 $0.00 2
41 881892 SCREW, COVER TO DISTRIBUTION BLOCK (1 3/4") 60374 SS $3.69 $3.59 2
41 67450 SCREW, COVER TO DISTRIBUTION BLOCK (2 1/4") 52447 SS $0.00 $0.00 1
42 36533 WASHER, COVER TO DISTRIBUTION BLOCK SCREW ACT $1.50 $1.47 1
43 8146801 GASKET, WATER DISTRIBUTION BLOCK 33680 SS $4.19 $4.10 1
44 21077 SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8") NLA $0.64 $0.63 2
45 8M0071007 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP 47640 SS $45.99 $45.11 1
46 815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP 32781 SS $17.29 $16.94 2
47 32877 COVER, WATER PUMP (1 1/16"LONG) ACT $7.99 $7.81 1
48 8M0204717 CLAMP, WATER PUMP COVER TO WATER PUMP 38426 SS $6.89 $6.73 1
49 47642 HOSE, INLET-WATER DISTRIBUTION BLOCK TO DRIVE UNIT 39315A1 SS $28.89 $28.32 1
50 815504310 CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT 32779 SS $17.99 $17.56 2
51 58003 CLAMP, INLET HOSE TO MANIFOLD NLA $0.00 $0.00 1
