| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

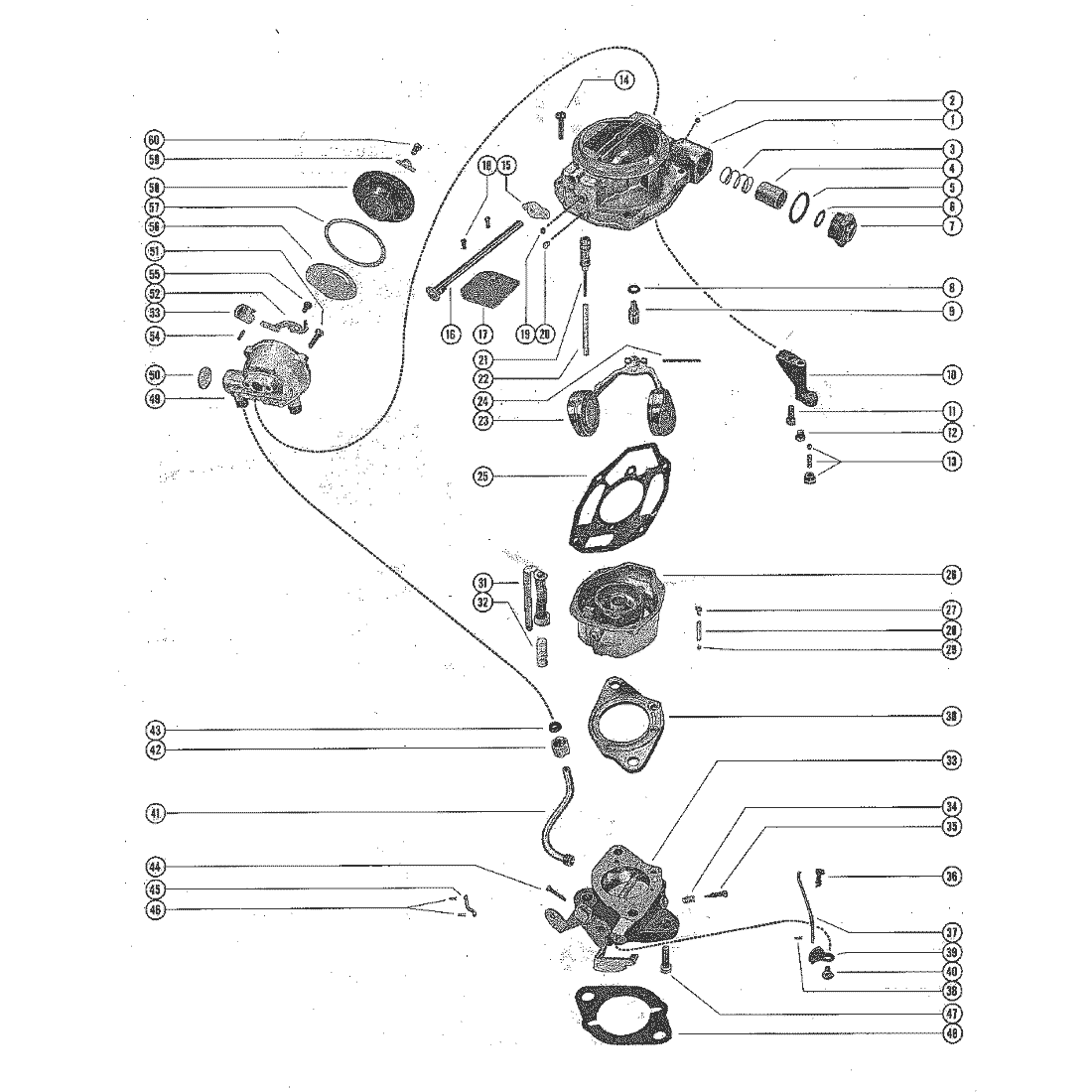

| - | 2608 | CARBURETOR ASSEMBLY, COMPLETE (BC) | 2428 | SS |
|
$0.00 | $0.00 | 1,,, | |
| - | 2609 | CARBURETOR ASSEMBLY, COMPLETE (B) | 2431 | SS |
|
$0.00 | $0.00 | ,1,, | |
| - | 2608 | CARBURETOR ASSEMBLY, COMPLETE (BC) | NLA |
|
$0.00 | $0.00 | ,,1, | ||
| - | 2609 | CARBURETOR ASSEMBLY, COMPLETE (B) | NLA |
|
$0.00 | $0.00 | ,,,1 | ||
| 1 | 2429 | --AIR HORN ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 1 | 2432 | --AIR HORN ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| 2 | 2050 | --PLUG AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 3 | 33624 | --SPRING, FUEL INLET FILTER NUT - AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 4 | 2150 | --FILTER, FUEL INLET - AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 5 | NSS | --GASKET, FUEL INLET FILTER NUT - AIR HORN |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 6 | NSS | --GASKET, FUEL INLET FILTER NUT - AIR HORN |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 7 | 33631 | --NUT, FUEL INLET FILTER - AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 8 | NSS | --GASKET INLET NEEDLE AND SEAT |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 9 | NSS | --INLET NEEDLE AND SEAT ASSEMBLY, AIR HORN |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 10 | 2430 | --MAIN WELL SUPPORT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 10 | 2433 | --MAIN WELL SUPPORT ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| 11 | 33617 | --SCREW, MAIN WELL SUPPORT TO AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 12 | 2447 | --JET, MAIN WELL SUPPORT (STANDARD) | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 12 | 2446 | --JET, MAIN WELL SUPPORT (STANDARD) | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| 13 | NSS | --POWER VALVE ASSEMBLY, MAIN WELL SUPPORT |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 14 | 33622 | --SCREW, AIR HORN TO FLOAT BOWL | NLA |
|
$0.00 | $0.00 | 4,4,4,4 | ||
| 15 | 2153 | --LEVER, CHOKE - CHOKE SHAFT | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 16 | 2157 | --CHOKE SHAFT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 17 | 2149 | --VALVE, CHOKE - CHOKE SHAFT | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 18 | 33045 | --SCREW, CHOKE VALVE TO CHOKE SHAFT | NLA |
|
$0.00 | $0.00 | 2,,2, | ||
| 19 | 2141 | --PLUG, IDLE PASSGE - OUTER (AIRORN) | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 20 | 2143 | --PLUG, IDLE PASSAGE - INNER (AIR HORN) | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 21 | 2148 | --PISTON, POWER - AIR HORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 22 | 33618 | --SPRING, POWER PISTON | NLA |
|
$0.00 | $0.00 | 1,1,, | ||
| 23 | 2610 | --FLOAT ASSEMBLY | 2144 | SS |
|
$0.00 | $0.00 | 1,1,, | |
| 23 | 2613 | --FLOAT ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,,1,1 | ||
| 24 | 33037 | --PIN,HINGE - FLOAT TO AIR BORN | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 25 | NSS | --GASKET, AIR HORN |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 26 | 2164 | --FLOAT BOAT ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 27 | NSS | --GUIDE, PUMP DISCHARGE - FLOAT BOWL |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 28 | NSS | --SPRING, DUMP DISCHARGE - FLOAT BOWL |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 29 | NSS | --BALL, PUMP DISCHARGE - FLOAT BOWL |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 30 | NSS | --GASKET, THROTTLE BODY |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 31 | NSS | --PUMP ASSEMBLY, FLOAT BOWL |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 32 | NSS | --SPRING, FLOAT BOWL PUMP RETURN |
|
$0.00 | $0.00 | 1,1,1,1 | |||
| 33 | 2165 | --THROTTLE BODY ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 33 | 2169 | --THROTTLE BODY ASSEMBLY | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| 34 | 36445 | --SPRING, IDLE ADJUSTING NEEDLE | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 35 | 2142 | --IDLE ADJUSTING NEEDLE, THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 36 | NSS | --CLIP, CHOKE ROD (UPPER) |
|
$0.00 | $0.00 | 1,,1, | |||
| 37 | 2155 | --ROD, CHOKE | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 38 | NSS | --CLIP, CHOKE ROD (LOWER) |
|
$0.00 | $0.00 | 1,,1, | |||
| 39 | 2160 | --CAM, FAST IDLE - THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 39 | 2146 | --CAM, FAST IDLE - THROTTLE BODY | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| 40 | 33042 | --SCREW, FAST IDLE CAM TO THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,1,, | ||
| 40 | 33042 | --SCREW, FAST IDLE CAM TO THROTTLE BODY | 33632 | SS |
|
$0.00 | $0.00 | ,,1,1 | |
| 41 | 33633 | --CHOKE TUBE ASSEMBLY, THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 42 | 33627 | --NUT, CHOKE TUBE TO CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 43 | NSS | --PACKING, CHOKE TUBE NUT |
|
$0.00 | $0.00 | 1,,1, | |||
| 44 | 2061 | --IDLE STOP SCREW, THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 45 | 2154 | --LINK, PUMP TO THROTTLE BODY | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 46 | NSS | --PIN, HAIR - PUMP LINK RETAINING |
|
$0.00 | $0.00 | 2,2,2,2 | |||
| 47 | 33630 | --SCREW, THROTTLE BODY TO FLOAT BOWL | NLA |
|
$0.00 | $0.00 | 2,2,2,2 | ||
| 48 | 33460 | --GASKET, CARBURETOR FLANGE | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| 49 | 2152 | --CHOKE HOUSING ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 50 | 33041 | --WELCH PLUG, CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 51 | 33053 | --SCREW, CHOKE HOUSING TO AIR HORN | NLA |
|
$0.00 | $0.00 | 2,,2, | ||
| 52 | 2167 | --LEVER ASSEMBLY, CHOKE PISTON | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 53 | 2059 | --CHOKE PISTON, CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 54 | 33049 | --PIN, CHOKE PISTON TO CHOKE PISTON LEVER | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 55 | 33056 | --SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 56 | 2110 | --PLATE, BAFFLE - CHOKE HOUSING | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| 57 | NSS | --GASKET, STAT COVER AND COIL |
|
$0.00 | $0.00 | 1,,1, | |||
| 58 | 2163 | --STAT COVER AND COIL ASSEMBLY | NLA |
|
$0.00 | $0.00 | 3,,3, | ||
| 59 | 33036 | --RETAINER, STAT COVER AND COIL SCREW | NLA |
|
$0.00 | $0.00 | 3,,3, | ||
| 60 | 33047 | --SCREW, STAT COVER AND COIL TO CHGOKE HOUSING | NLA |
|
$0.00 | $0.00 | 3,,3, | ||
| -- | 3458 | OVERHAUL KIT | 2151 | SS |
|
$0.00 | $0.00 | 1,1,, | |
| -- | 3463 | OVERHAUL KIT | 2612 | SS |
|
$0.00 | $0.00 | ,,1,1 | |
| -- | 3458 | OFF ENGINE KIT | 2101 | SS |
|
$0.00 | $0.00 | 1,1,, | |
| -- | 2611 | OFF ENGINE KIT | NLA |
|
$0.00 | $0.00 | ,,1,1 | ||
| -- | 2102 | GASKET KIT 1 | NLA |
|
$0.00 | $0.00 | 1,1,1,1 | ||
| -- | 2215 | ALTITUDE KIT (5,000 FT) | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| -- | 2216 | ALTITUDE KIT (5,000 FT) | NLA |
|
$0.00 | $0.00 | 1,,1, | ||
| -- | 2219 | ALTITUDE KIT (5,000 FT) | NLA |
|
$0.00 | $0.00 | ,1,,1 | ||
| -- | 2220 | ALTITUDE KIT (10,000 FT) | NLA |
|
$0.00 | $0.00 | ,1,,1 |
