Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

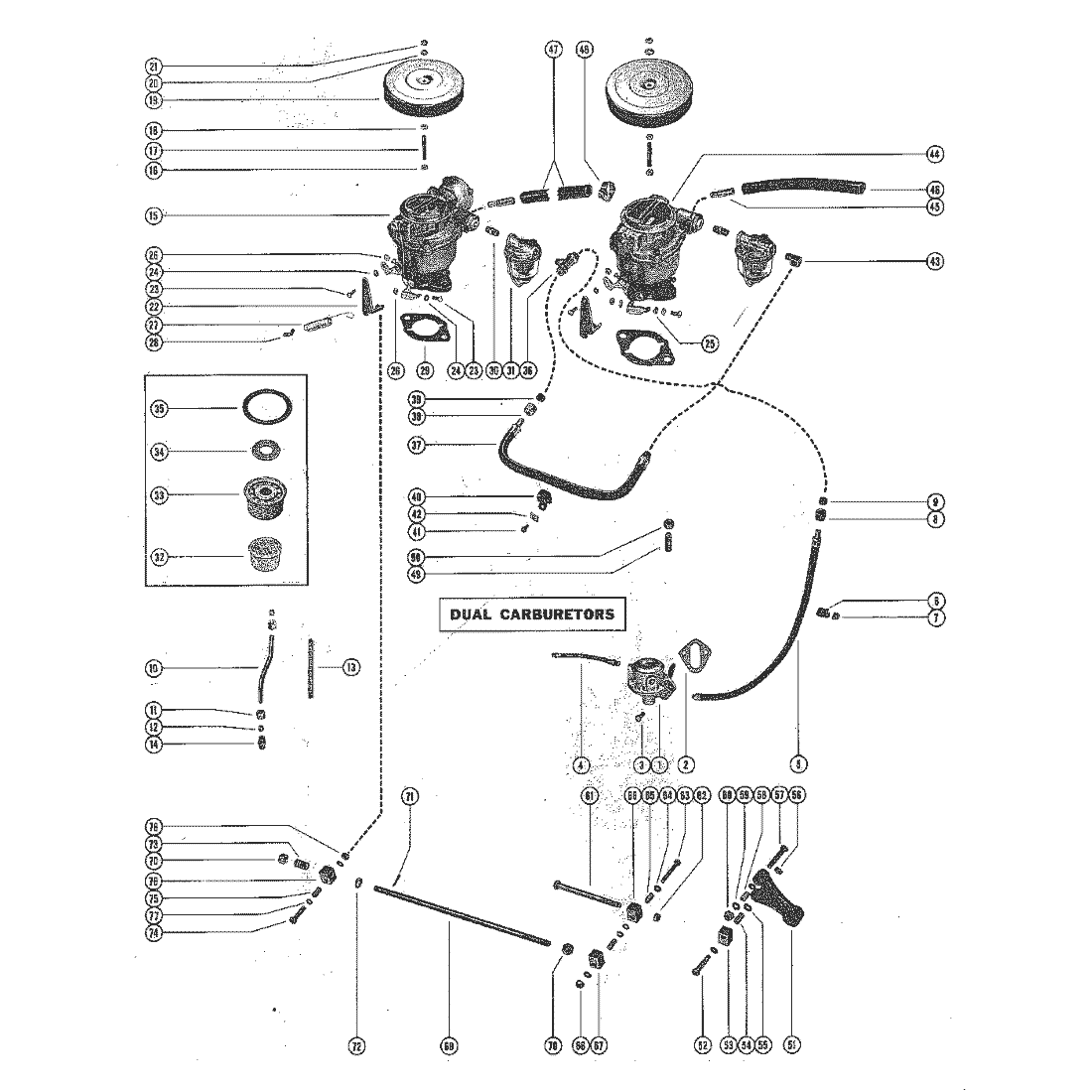

1 32722 FUEL PUMP ASSEMBLY NLA $0.00 $0.00 1
- 33357 FUEL PUMP REPAIR KIT NLA $0.00 $0.00 1
- 33358 FUEL PUMP DIAPHRAGM KIT NLA $0.00 $0.00 1
2 34213 GASKET, FUEL PUMP MOUNTING ACT $7.09 $6.93 1
3 45488 BOLT, FUEL PUMP TO CYLINDER BLOCK (3/4") 34554 SS $0.00 $0.00 2
4 17008 FUEL LINE, FUEL TANK TO FUEL PUMP 30466 SS $0.00 $0.00 1
5 17006 FUEL LINE, FUEL PUMP TO FUEL FILTER (24") 33099 SS $0.00 $0.00 1
6 22627 CLIP, FUEL LINE TO COIL BRACKET NLA $0.00 $0.00 1
7 8M0084613 "D" WASHER, FUEL LINE CLIP SCREW 22789 SS $1.10 $1.08 1
8 30177 NUT, FUEL LINE TO TEE NLA $0.00 $0.00 1
9 30175 SLEEVE, FUEL LINE NUT TO TEE NLA $0.00 $0.00 1
10 33097A1 PIPE ASSEMBLY, NLA $0.00 $0.00 1
11 21310 --NUT NLA $0.00 $0.00 2
12 21309 --SLEEVE, NLA $0.00 $0.00 2
13 34292 --COVERING, CHOKE PIPE NLA $0.00 $0.00 1
14 21373 CONNECTOR, INTAKE MANIFOLD COVER TO CHOKE PIPE NLA $0.00 $0.00 1
15 2608 CARBURETOR ASSEMBLY, FRONT (BC)(SEEF10 FOR BREAKDOWN) 2428 SS $0.00 $0.00 1
15 2608 CARBURETOR ASSEMBLY, FRONT (BC)(SEE F10 FOR BREAKDOWN) NLA $0.00 $0.00 1
16 29031 NUT, JAM - FLAME ARRESTOR MOUNTING STUD NLA $3.54 $3.46 2
17 33102 STUD, FLAME ARRESTOR MOUNTING - CARBURETOR NLA $0.00 $0.00 2
18 8267139 NUT, FLAME ARRESTOR MOUNTING STUD (BOTTOM) 28941 SS $2.59 $2.53 2
19 85786A1 FLAME ARRESTOR 33061 SS $0.00 $0.00 2
20 22937 WASHER, FLAME ARRESTOR MOUNTING STUD ACT $3.79 $3.69 2
21 826709109 NUT, FLAME ARRESTOR MOUNTING STUD (TOP) 20586 SS $3.59 $3.50 2
22 33108 PLATE, THROTTLE - CARBURETOR NLA $0.00 $0.00 2
23 69022 SCREW, THROTTLE PLATE TO CARBURETOR 20100 SS $1.10 $1.08 4
24 26014 WASHER, THROTTLE PLATE TO CARBURETOR SCREW NLA $0.00 $0.00 5
25 847883 WASHER, THROTTLE PLATE TO CARBURETOR SCREW 20128 SS $5.20 $5.08 5
26 20110 NUT, THROTTLE PLATE TO CARBURETOR SCREW ACT $1.70 $1.66 4
27 33453 SPRING, THROTTLE RETURN - FRONT CARBURETOR (2 3/4") NLA $0.00 $0.00 1
27 35874 SPRING, THROTTLE RETURN - REAR CARBURETOR (4 3/4") NLA $0.00 $0.00 1
27 35875 SPRING, THROTTLE RETURN REAR CARBURETOR (6 1/4")( NLA $0.00 $0.00 1
28 78201 RETAINER,INTAKE MIANIFOLD COVER SCREW-THROTTLE RETURN SPRING 26551 SS $0.00 $0.00 1
29 33460 GASKET, CARBURETOR TO INTAKE MANIFOLD COVER NLA $0.00 $0.00 2
30 32876 NIPPLE, FUEL FILTER TO CABURETOR NLA $0.00 $0.00 2
31 35382A1 FUEL FILTER ASSEMBLY, CABURETOR NLA $0.00 $0.00 2
32 35157 --BOWL, ALUMINUM - FUEL FILTER NLA $0.00 $0.00 2
33 33744 --ELEMENT, FUEL FILTER NLA $0.00 $0.00 2
34 33746 --GASKET, FUEL FILTER ELEMENT NLA $0.00 $0.00 2
35 33745 --GASKET ,FUEL FILTER BOWL NLA $0.00 $0.00 2
36 33740 TEE, FUEL FILTER TO FUEL LINES NLA $0.00 $0.00 1
37 17005 FUEL LINE, FUEL FILTER TO FUEL FILTER (14 1/2") 33098 SS $0.00 $0.00 1
38 30177 NUT, FUEL LINE TEE NLA $0.00 $0.00 1
39 30175 SLEEVE, FUEL LINE TO TEE NUT NLA $0.00 $0.00 1
40 22627 CLIP, FUEL FILTER FUEL LINE NLA $0.00 $0.00 1
41 22654 SCREW, FUEL FILTER FUEL LINE CLIP TO CABURETOR NLA $0.00 $0.00 1
42 8M0084613 "D" WASHER, FUEL LINE CLIP SCREW 22789 SS $1.10 $1.08 1
43 59351 ELBOW, FUEL FILTER TO FUEL LINE 23125 SS $8.79 $8.59 1
44 2609 CARBURETOR ASSEMBLY, REAR (B) (SEE F10 FOR BREAKDOWN 2431 SS $0.00 $0.00 1
44 2609 CARBURETOR ASSEMBLY, REAR (B) (SEE F10 FOR BREAKDOWN) NLA $0.00 $0.00 1
46 34423 HOSE, VENT - REAR CARBURETOR TO VENT ELBOW (10") 36119 SS $33.99 $33.25 1
47 34423 HOSE, VENT - FRONT CARBURETOR TO VENT ELBOW (12 5/8") 33458 SS $33.99 $33.25 1
48 815504206 CLAMP, VENT HOSE TO VENT ELBOW 35830 SS $6.79 $6.64 2
49 20550 STUD, CARBURETOR MOUNTING - INTAKE MANIFOLD COVER NLA $0.00 $0.00 4
50 25269 NUT, CARBURETOR MOUNTING STUD NLA $3.15 $3.08 4
51 33091 LEVER, THROTTLE - MANIFOLD BODY NLA $0.00 $0.00 1
52 98509 SCREW, SWIVEL JOINT TO THROTTLE LEVER (1 1/8") 22958 SS $0.00 $0.00 1
53 33104 SWIVEL JOINT, THROTTLE LEVER NLA $0.00 $0.00 1
54 33109 BUSHING, SWIVEL JOINT TO THROTTLE LEVER SCREW NLA $0.00 $0.00 1
55 847883 WASHER, SWIVEL JOINT TO THROTTLE LEVER SCREW 20128 SS $5.20 $5.08 2
56 8267086 NUT, SWIVEL JOINT TO THROTTLE LEVER SCREW 20190 SS $1.70 $1.66 1
57 73656 SCREW, REMOTE CONTROL CABLE TO THROTTLE LEVER (1 3/8") 24233 SS $0.00 $0.00 1
58 32818 BUSHING, REMOTE CONTROL CABLE TO THROTTLE SCREW NLA $0.00 $0.00 1
59 847883 WASHER, REMOTE CONTROL CABLE TO THROTTLE LEVER SCREW 20128 SS $5.20 $5.08 2
60 8267086 NUT, REMOTE CONTROL CABLE TO THROTTLE LEVER SCREW 20190 SS $1.70 $1.66 1
61 88488 SCREW, THROTTLE PLATE SWIVEL JOINT TO THROTTLE LEVER SLIP JO 31471 SS $0.00 $0.00 1
62 25168 NUT, JAM - THROTTLE PLATE SWIVEL JOINT TO THROTTLE LEVER SLI NLA $0.00 $0.00 1
63 33123 SCREW, SWIVEL JOINT AND SLIP JOINT TO THROTTLE PLATE (1 1/2" NLA $0.00 $0.00 1
64 847883 WASHER, SWIVEL JOINT AND SLIP JOINT TO THROTTLE PLATE SCREW 20128 SS $5.20 $5.08 4
65 33109 BUSHING, SWIVEL JOINT AND SLIP JOINT TO THROTTLE PLATE SCREW NLA $0.00 $0.00 2
66 33105 SLIP JOINT, THROTTLE PLATE (REAR CARBURETOR) NLA $0.00 $0.00 1
67 33104 SWIVEL JOINT, THROTTLE PLATE NLA $0.00 $0.00 1
68 20110 NUT, SWIVEL JOINT AND SLIP JOINT TO THROTTLE PLATE SCREW ACT $1.70 $1.66 1
69 33103 LINK ROD, CARBURETOR THROTTLE PLATE TO CARBURETOR THROTTLE P NLA $0.00 $0.00 1
70 25168 NUT, JAM - CARBURETOR THROTTLE PLATE LINK ROD NLA $0.00 $0.00 2
71 26953 COTTER PIN, CARBURETOR THROTTLE PLATE LINK ROD ACT $4.19 $4.10 1
72 20028 WASHER, CARBURETOR THROTTLE PLATE LINK ROD ACT $1.80 $1.76 1
73 20099 SPRING, CARBURETOR THROTTLE PLATE LINK ROD ACT $5.49 $5.37 1
74 37892 SCREW, SLIP JOINT TO THROTTLE PLATE (1") NLA $1.32 $1.29 1
75 33109 BUSHING, SLIP JOINT TO THROTTLE PLATE SCREW NLA $0.00 $0.00 1
76 33105 SLIP, JOINT, THROTTLE PLATE (FRONT CARBURETOR) NLA $0.00 $0.00 1
77 847883 WASHER, SLIP JOINT TO THROTTLE PLATE SCREW 20128 SS $5.20 $5.08 2
78 8267086 NUT, SLIP JOINT TO THROTTLE PLATE SCREW 20190 SS $1.70 $1.66 1
