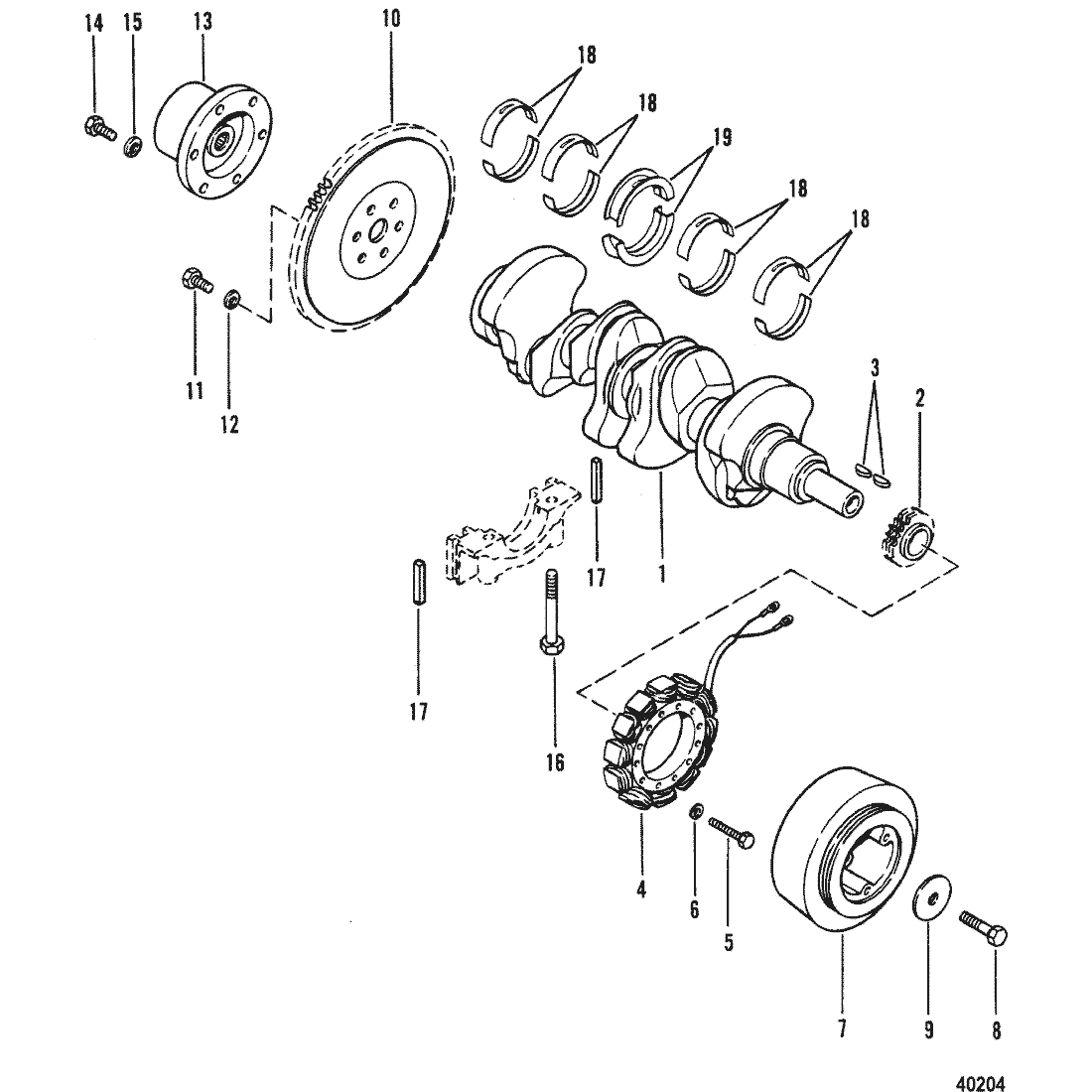

- WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-71707 SEC. 5 PART D.
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 456-6092A1 | CRANKSHAFT | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 68700 | SPROCKET, CRANKSHAFT | SS |
|
$0.00 | $0.00 | 1 | ||
| 3 | 28-67382 | KEY, SPROCKET AND ALTERNATOR | SS |
|
$0.00 | $0.00 | 2 | ||
| 4 | 398-6231A10 | STATOR ASSEMBLY, ALTERNATOR | SS |
|
$309.58 | $291.54 | 1 | ||
| 5 | 10-77363 | SCREW, (#10-24 x 1.50), STRATOR TO FRONT COVER | SS |
|
$0.00 | $0.00 | 5 | ||
| 6 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 5 | |||
| 7 | 93009A06 | ALTERNATOR ASSEMBLY, Flywheel, FLYWHEEL | 93009A5 | SS/ACT |
|
$599.36 | $563.88 | 1 | |
| 8 | 10-59644 | SCREW, (.500-20 x 1.380), ALTERNATOR | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 12-36103 | WASHER, (Steel, 1.75 Inch Outside Diameter), ALTERNATOR SCREW | ACT | $3.80 | $3.71 | 1 | |||
| 10 | 251-9741A2 | FLYWHEEL | SS |
|
$0.00 | $0.00 | 1 | ||
| 11 | 10-8M0214958 | SCREW, (.437-20 x 1.00), FLYWHEEL TO CRANKSHAFT | 49845 | SS/ACT |
|
$5.70 | $5.56 | 6 | |
| 12 | 13-39131 | LOCKWASHER, (.437), FLYWHEEL SCREW | ACT | $1.00 | $0.98 | 6 | |||
| 13 | 97432A2 | COUPLING ASSEMBLY, ENGINE | ACT | $694.21 | $653.12 | 1 | |||
| 14 | 10-37612 | SCREW, (.375-16 x 1.250), COUPLING TO FLYWHEEL | ACT | $2.40 | $2.35 | 6 | |||
| 15 | 13-35048 | LOCKWASHER, (.375), COUPLING SCREW | ACT | $1.20 | $1.18 | 6 | |||
| 16 | 10-74335 | SCREW, (.500-13 x 4.00), MAIN BEARING CAPS | SS |
|
$0.00 | $0.00 | 10 | ||
| 17 | 26-98421A1 | SEAL, REAR BEARING CAP | ACT | $28.08 | $27.58 | 1 | |||
| 18 | 74313A1 | BEARING ASSEMBLY, Main (STANDARD) | SS |
|
$0.00 | $0.00 | 4 | ||
| 18 | 74313A2 | BEARING ASSEMBLY, Main (.002 U.S.) | SS |
|
$0.00 | $0.00 | AR | ||
| 18 | 74313A4 | BEARING ASSEMBLY, Main (.010 U.S. | SS |
|
$0.00 | $0.00 | AR | ||
| 18 | 74313A3 | BEARING ASSEMBLY, Main (.020 U.S.) | SS |
|
$0.00 | $0.00 | AR | ||
| 19 | 853849 | BEARING ASSEMBLY, Center Main (STANDARD) | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 15103A2 | BEARING ASSEMBLY, Center Main (.002 U.S.) | SS |
|
$0.00 | $0.00 | AR | ||
| 19 | 853851 | BEARING ASSEMBLY, Center Main (.010 U.S.) | SS |
|
$0.00 | $0.00 | AR | ||
| 19 | 853852 | BEARING ASSEMBLY, Center Main (.020 U.S.) | SS |
|
$0.00 | $0.00 | AR |
