Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

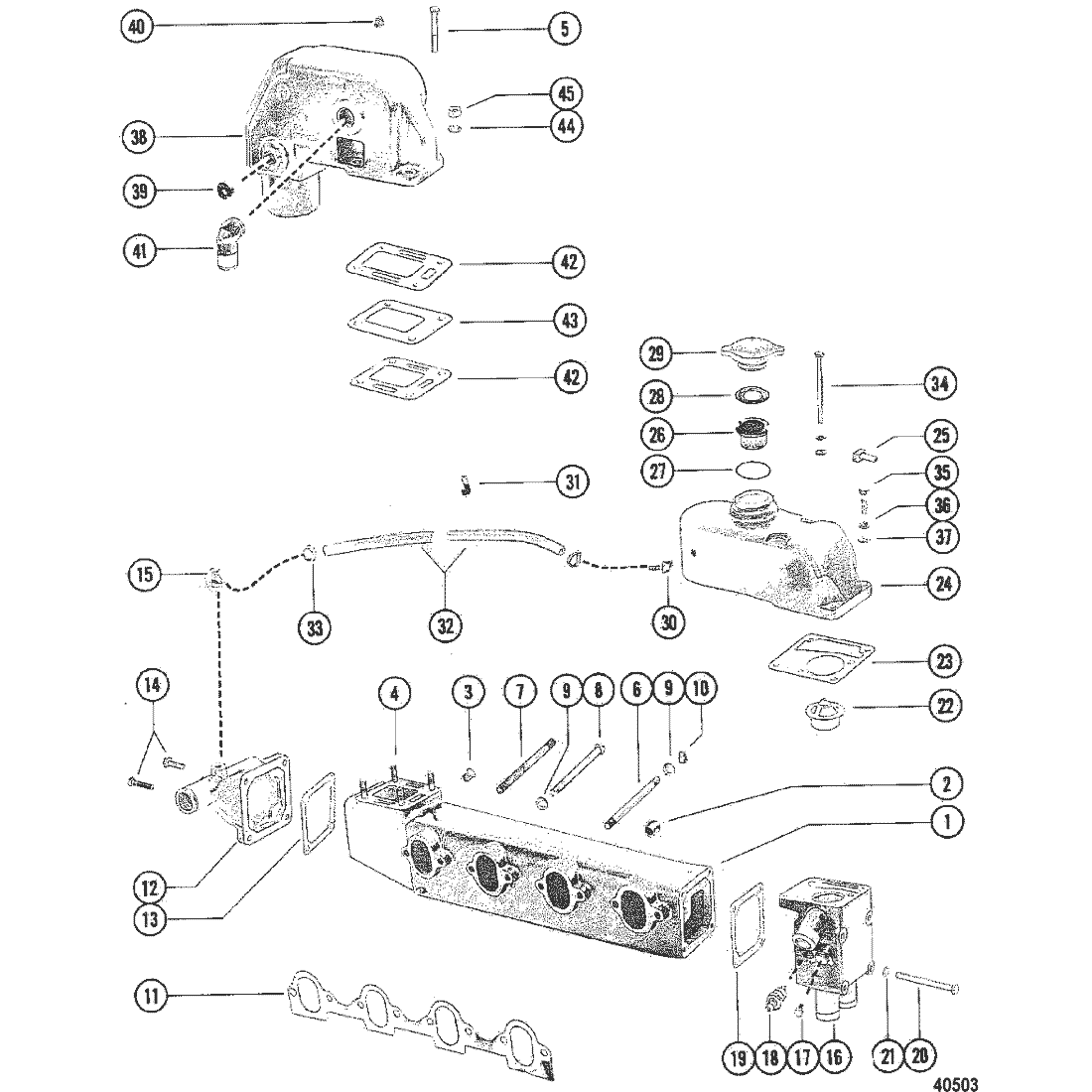

1 71527A17 MANIFOLD ASSEMBLY, Exhaust 71527A9 SS $0.00 $0.00 1
2 416223 --PLUG, (3/4-14), Core 33198A1 SS $3.49 $3.40 3
3 36382 --FITTING, (.250-18 x .62) Brass, Drain ACT $5.49 $5.37 1
4 8M0204664 --STUD, (3/8 x 1.75), Manifold to Elbow 49545 SS $2.99 $2.92 2
5 72094 --SCREW, (.375-16 x 3.750), Elbow to Manifold ACT $5.49 $5.37 2
6 71494 STUD, (6 In.), Exhaust Manifold to Head NLA $0.00 $0.00 1
7 77958 STUD, (6.5 In.), Exhaust Manifold to Head NLA $0.00 $0.00 1
8 36355 SCREW, (5.25 In.), Exhaust Manifold to Head NLA $0.00 $0.00 6
9 35048 LOCKWASHER, (.375), Exhaust Manifold Attaching ACT $1.20 $1.18 8
10 32219 NUT, (.375-16), Exhaust Manifold Attaching Stud ACT $2.79 $2.72 2
11 68715 GASKET, Exhaust Manifold to Head ACT $18.29 $17.92 1
12 71943 END CAP, Rear NLA $0.00 $0.00 1
13 480431 GASKET, End Cap 48043 SS $5.49 $5.37 1
14 35386 SCREW, (.312-18 x 1.00), Endcap to Exhaust Manifold ACT $1.10 $1.08 3
14 73657 SCREW, (.312-18 x 1.50), Endcap to Exhaust Manifold 20362 SS $3.39 $3.30 1
15 73817 FITTING, End Cap - By-pass Hose 75188 SS $21.79 $21.36 1
16 41801T HOUSING, Thermostat 74009 SS $0.00 $0.00 1
17 8M0180565 PLUG, Pipe (.375-18) Brass, Thermostat Housing 32803 SS $7.99 $7.81 1
18 15995 SENDER, Water Temperature 75669 SS $90.99 $87.29 1
19 480431 GASKET, Thermostat Housing to Exhaust Manifold 48043 SS $5.49 $5.37 1
20 74822 SCREW, (.312-18 x 3.500), Thermostat Housing to Exhaust Manifold ACT $1.70 $1.66 4
21 36533 WASHER, (.328 x .562 x .0312) Copper ACT $1.50 $1.47 4
22 76270T THERMOSTAT 76270 SS $36.49 $35.68 1
23 74830 GASKET, Thermostat Housing to Reservoir ACT $7.59 $7.42 1
24 74144A2 RESERVOIR ASSEMBLY NLA $0.00 $0.00 1
25 74033 --ELBOW, Overflow NLA $0.00 $0.00 1
26 13234A1 --BASE, Filler Hole Cap 58471 SS $36.49 $35.85 1
27 45257 --O-RING, (1.489 x .070), Filler Base ACT $1.80 $1.76 1
28 71614 --GASKET, Filler Hole Cap ACT $3.99 $3.91 1
29 55143Q --CAP, Pressure, Fille Hole 55143 SS $0.00 $0.00 1
30 76170 --ELBOW, Reservoir By-pass NLA $0.00 $0.00 1
31 8M0024808 J CLIP, Hose to Valve Cover 642351 SS $8.19 $8.00 1
32 89713 HOSE, By-pass - Reservoir to Rear End Cap NLA $0.00 $0.00 1
33 75826 CLAMP, By-pass Hose Attaching NLA $0.00 $0.00 2
34 74826 SCREW, (.312-18 x 4.00), Reservoir to Thermostat Housing NLA $2.66 $2.61 2
35 74824 SCREW, (1.25), Reservoir to Thermostat Housing 53016 SS $1.80 $1.76 2
36 39107 LOCKWASHER, (.312-24) ACT $1.50 $1.47 4
37 8M0204690 WASHER 53705 SS $1.80 $1.76 4
38 76325A2 ELBOW ASSEMBLY, Exhaust NLA $0.00 $0.00 1
39 416223 --PLUG, (3/4-14), Core 33198A1 SS $3.49 $3.40 4
40 416223 --PLUG, (3/4-14), Core 33198A1 SS $3.49 $3.40 1
41 36305T --ELBOW, (90 Degrees), Heat Exchanger Hose 36305 SS $39.49 $38.63 1
42 997772 GASKET, Elbow to Manifold 52076 SS $4.59 $4.49 2
43 55730 PLATE, Elbow to Manifold ACT $24.19 $23.73 1
44 35048 LOCKWASHER, (3/8), Elbow to Manifold Attaching 37459 SS $1.20 $1.18 4
49 49838 NUT, Elbow to Manifold Attaching ACT $1.10 $1.08 4
