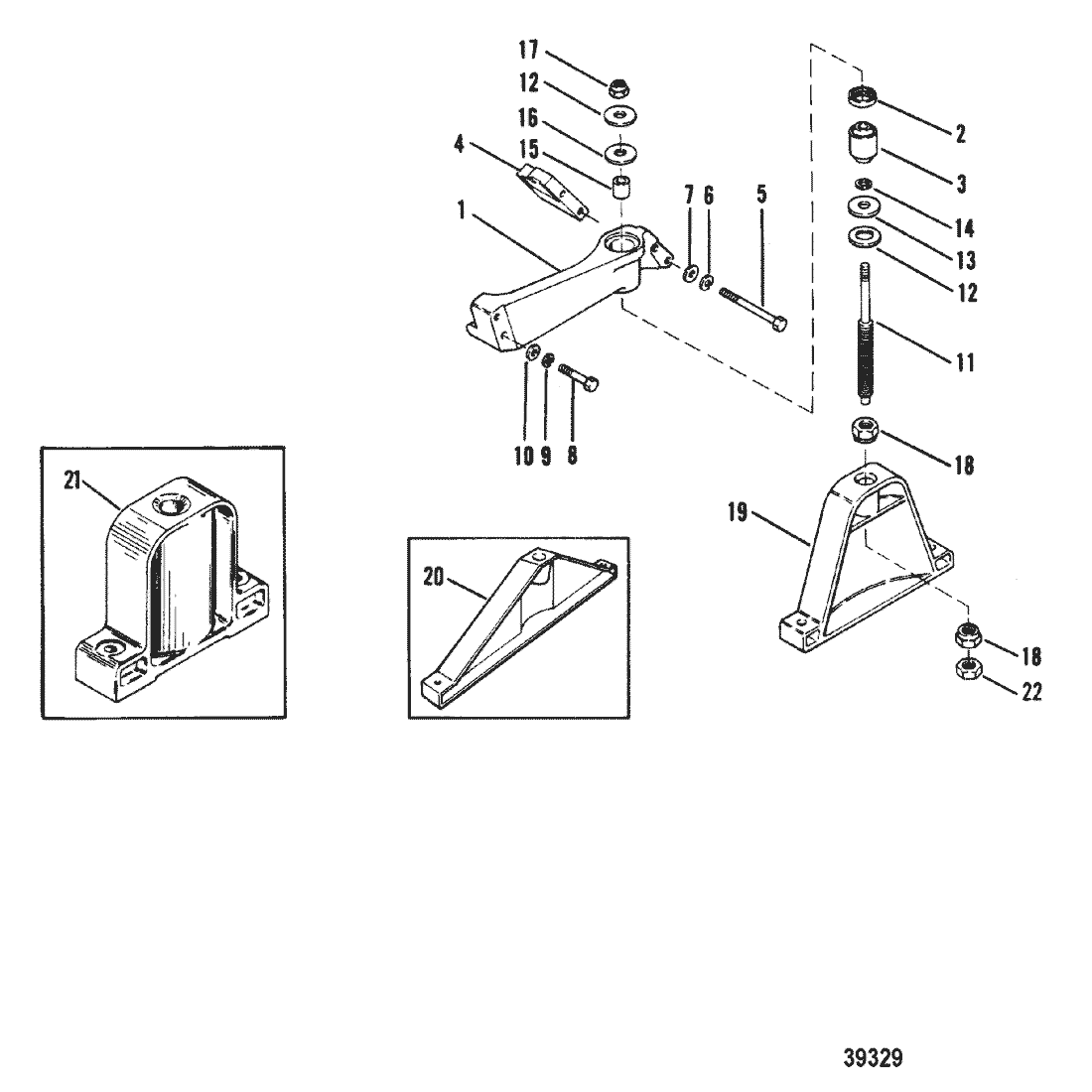

ENGINE MOUNTING(FRONT)

Personal menu

Filters

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
1	73571A2	BRACKET ASSEMBLY, FRONT MOUNTING		ACT	$248.20	$237.26	1
2	23-35903	--SPACER, BRACKET		ACT	$15.40	$15.02	1
3	32833	--MOUNT, BRACKET		ACT	$141.58	$133.33	1
4	8M0046293	BLOCK, SPACER - BRACKET	35862	SS/ACT	$40.92	$40.18	1
5	10-8M2021918	SCREW, (.437-14 x 4.625), BRACKET TO BLOCK	32557	SS/ACT	$4.80	$4.69	2
6	13-32993	LOCKWASHER, (.437), BRACKET SCREW		ACT	$1.60	$1.57	2
7	12-22248	WASHER, (.453 x .875 x .060), BRACKET SCREW		ACT	$1.40	$1.37	2
8	10-26486	SCREW, (.375-16 x 2.375), BRACKET TO BLOCK		ACT	$3.70	$3.61	2
8	10-47688	SCREW, (.375-16 x 2.750), BRACKET TO BLOCK		ACT	$3.50	$3.42	2
9	13-35048	LOCKWASHER, (.375), BRACKET SCREW		ACT	$1.20	$1.18	2
10	12-25909	WASHER, (.406 x .812 x .065), BRACKET SCREW		ACT	$1.80	$1.76	2
11	16-36100T	STUD, ADJSUTING - FRONT MOUNTING BRACKET		ACT	$70.92	$68.21	1
12	12-36103	WASHER, (Steel, 1.75 Inch Outside Diameter), ADJUSTING STUD		ACT	$3.80	$3.71	2
13	12-32638	WASHER, Rubber, ADJUSTING STUD		ACT	$5.30	$5.17	1
14	12-30119	WASHER, (.875 Inch Outside Diameter), ADJUSTING STUD		ACT	$2.60	$2.54	1
15	23-32756	SPACER, ADJUSTING STUD		ACT	$7.60	$7.42	1
16	12-36104	WASHER, Rubber, RUBBER - ADJUSTING STUD		ACT	$6.20	$6.05	1
17	11-82671317	NUT, (.500-20), ADJUSTING STUD (TOP)	20220	SS/ACT	$3.70	$3.61	1
18	11-32882	NUT, (.875-14), ADJUSTING STUD		ACT	$9.10	$8.88	2
19	32778T	SUPPORT, FRONT - ENGINE MOUNT	32778	SS/ACT	$236.95	$226.47	1
20	32849	SUPPORT, FRONT - ENGINE MOUNT		SS	$0.00	$0.00	OPT
21	76409F1	SUPPORT, FRONT - ENGINE MOUNT		SS	$0.00	$0.00	OPT
22	11-47525	NUT, (.875-14), ADJUSTING STUD (BOTTOM)		ACT	$6.70	$6.54	1
