Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

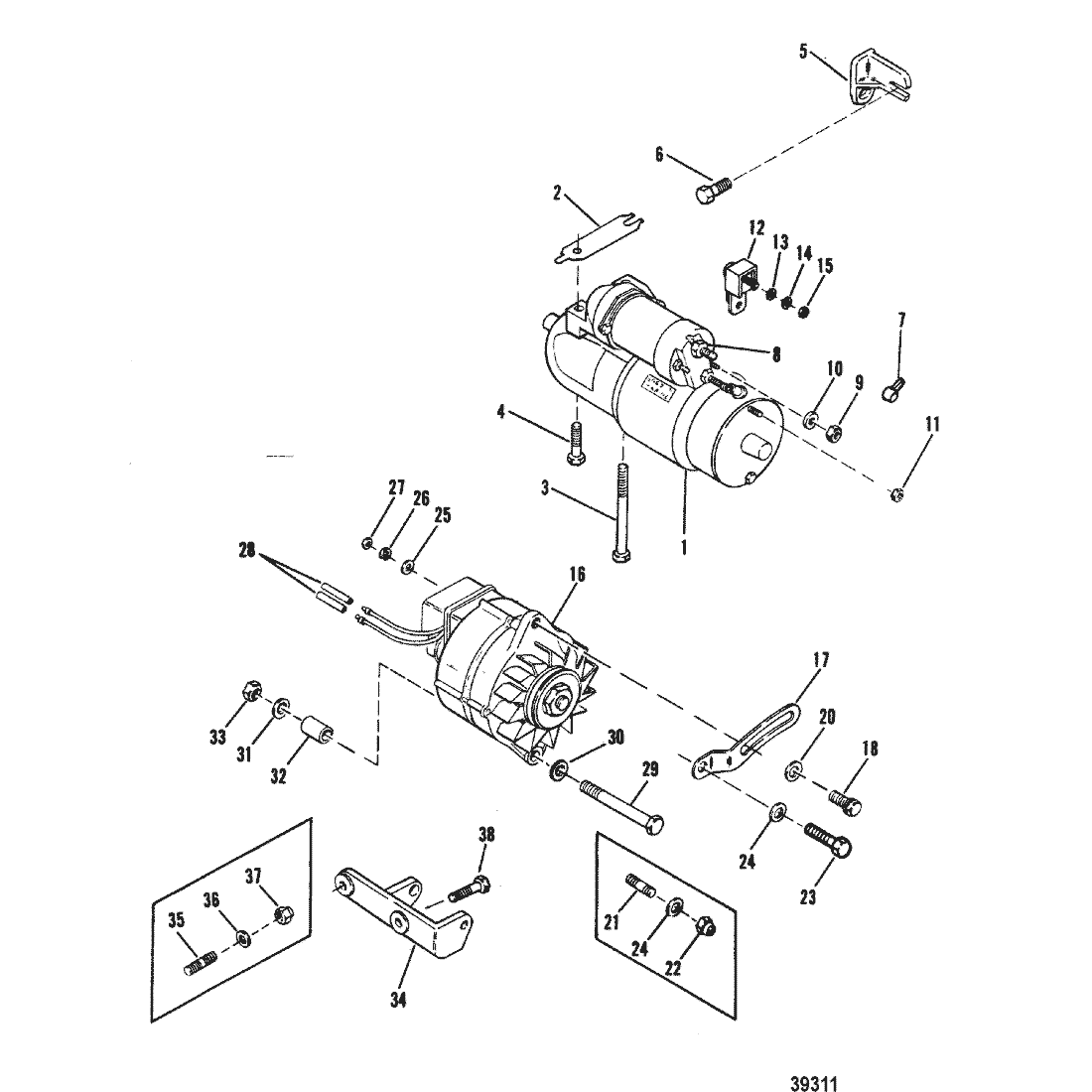

1 8M0090697 STARTER MOTOR ASSEMBLY 99417A2 SS $366.99 $345.22 1
2 98192 SHIM, STARTER MOTOR NLA $0.00 $0.00 1
3 94435001 BOLT, (.375-16 x 4.600), STARTER MOTOR MOUNTING 94435 SS $0.00 $0.00 1
4 8053433 BOLT, STARTER MOTOR MOUNTING (1-15/16") 812509184 SS $16.19 $15.80 1
5 87300T BRACKET, STARTER MOTOR NLA $0.00 $0.00 1
6 865982005 SCREW, (.375-16 x 1.00) , STARTER MOTOR BRACKET TO CYLINDER BLOCK 12244 SS $2.59 $2.53 1
7 79695T BOOT, Insulator - Black 79695 SS $5.49 $5.37 1
8 32219 NUT, (.375-16), BATTERY TERMINAL ACT $2.79 $2.72 OPT
8 15874 NUT, (M10), BATTERY TERMINAL ACT $2.79 $2.72 OPT
9 26419 NUT, (#8-32) Brass, SOLENOID SWITH TERMINAL ACT $1.70 $1.66 2
9 400211 NUT, (M5) Stainless Steel, SOLENOID SWITCH TERMINAL ACT $3.59 $3.50 2
10 26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID SWITCH TERMINAL ACT $1.10 $1.08 2
11 8267088 NUT, (.250-20), STARTERMOTOR TERMINAL 72008 SS $1.70 $1.66 1
12 8M0207795 FUSE ASSEMBLY, 90 Ampere 79023A91 SS $0.00 $0.00 1
13 96457 WASHER, Phenolic (.27 x .81 x .062), FUSE STUD ACT $1.70 $1.66 1
14 26992 LOCKWASHER, (.250) Stainless Steel, FUSE STUD ACT $1.20 $1.18 1
15 21825 NUT, (.250-28), FUSE STUD ACT $1.70 $1.66 1
16 78403A2 ALTERNATOR ASSEMBLY (MOTOROLA) NLA $0.00 $0.00 1
16 817119A4 ALTERNATOR ASSEMBLY, (55 Ampere) (MOTOROLA) 92497A3 SS $351.49 $330.62 1
17 58333 BRACE, ALTERNATOR TO EXHAUST MANIFOLD (FRONT) ACT $41.99 $41.16 1
18 29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE TO ALTERNATOR ACT $4.59 $4.49 1
20 26168 WASHER, ALTERNATOR BRACE SCREW ACT $1.70 $1.66 1
21 54177 STUD, (1 3/8), BRACE TO MANIFOLD NLA $0.00 $0.00 1
22 23161 NUT, (.375-24), ALTERNATOR BRACE ACT $2.89 $2.82 1
23 98261 SCREW, (.375-16 x .750), BRACE TO MANIFOLD ACT $1.20 $1.18 1
24 20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACER STUD ACT $1.50 $1.47 1
25 96457 WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING (PHENOLIC) ACT $1.70 $1.66 1
26 21272 LOCKWASHER, (.250), ALTERNATOR TERMINAL ACT $1.10 $1.08 1
27 64015 NUT, (.250-20), ALTERNATOR TERMINAL ACT $2.79 $2.72 1
28 5790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS ACT $16.39 $16.00 2
29 37626 SCREW, (.375-24 x 4.250), ALTERNATOR TO BRACKET ACT $21.89 $21.44 1
30 28105 WASHER, ALTERNATOR SCREW ACT $1.80 $1.76 1
31 20553 WASHER, (.406 x .734 x .063), ALTERNATOR TO BRACKET ACT $1.50 $1.47 1
32 63894 SPACER, ALTERNATOR TO BRACKET NLA $0.00 $0.00 1
33 23161 NUT, (.375-24), ALTERNATOR SCREW ACT $2.89 $2.82 1
34 16738A1 BRACKET, ALTERNATOR NLA $179.95 $169.46 1
35 56826 STUD, (1.5 In.), ALTERNATOR BRACKET ACT $11.09 $10.83 2
36 20553 WASHER, (.406 x .734 x .063), BRACKET STUD ACT $1.50 $1.47 2
37 23161 NUT, (.375-24), BRACKET STUD ACT $2.89 $2.82 2
38 865982005 SCREW, (.375-16 x 1.00) , BRACKET 12244 SS $2.59 $2.53 2
