| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

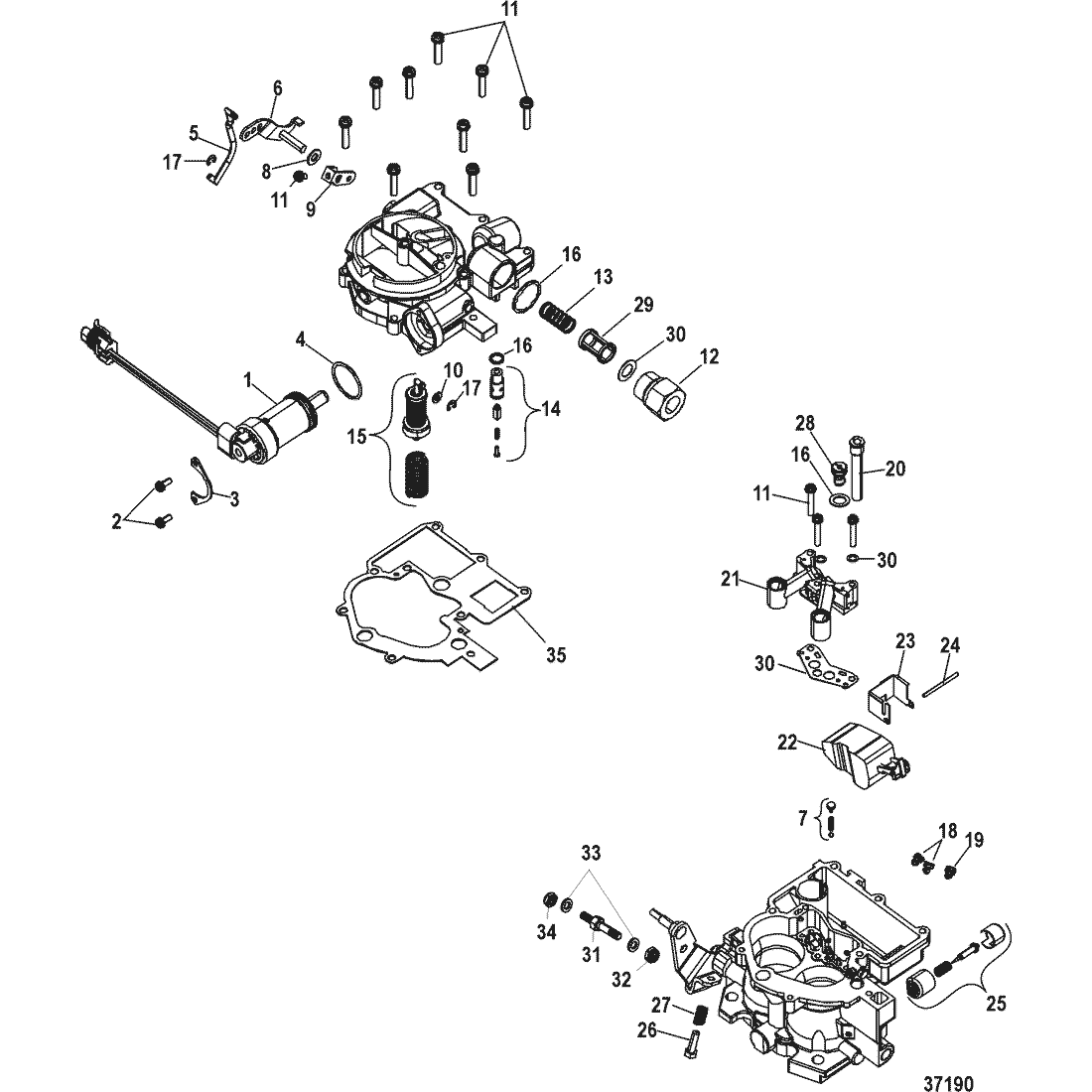

| - | 3310-8M0084193 | CARBURETOR | 866140A02 | SS/ACT |
 |
$934.93 | $879.59 | 1 | |
| 1 | 3310-866148 | --MODULE, Enrichment | ACT | $394.29 | $376.88 | 1 | |||
| 2 | 10-866288 | --SCREW | ACT | $2.60 | $2.54 | 2 | |||
| 3 | 3310-866289 | --RETAINER | ACT | $26.75 | $26.27 | 1 | |||
| 4 | 25-898836 | --O-RING, Brown | ACT | $3.60 | $3.52 | 1 | |||
| 5 | 3302-8109201 | --ROD | ACT | $7.50 | $7.32 | 1 | |||
| 6 | 3302-8237251 | --LEVER | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 3302-809520 | --CHECK BALL KIT | ACT | $15.40 | $15.02 | 1 | |||
| 8 | 3302-810919 | --WASHER | ACT | $2.70 | $2.64 | 2 | |||
| 9 | 3302-810916 | --ARM | ACT | $12.60 | $12.29 | 1 | |||
| 10 | 3302-810919 | --WASHER | ACT | $2.70 | $2.64 | 1 | |||
| 11 | 3310-866294 | --SCREW KIT | ACT | $43.50 | $42.72 | 1 | |||
| 12 | 3302-879194018 | --CONNECTOR | ACT | $102.42 | $96.45 | 1 | |||
| 13 | 3302-9032 | --SPRING | ACT | $7.60 | $7.42 | 1 | |||
| 14 | 3302-804689 | --SEAT KIT, Inlet | ACT | $51.92 | $49.94 | 1 | |||
| 15 | 3302-96551 | --PUMP KIT, Accelerator | ACT | $115.08 | $108.38 | 1 | |||
| 16 | 3302-9044 | --PACKING SET | 90441 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 17 | 3302-808675 | ----CLIP, Spring | ACT | $1.70 | $1.66 | 2 | |||
| 18 | 3302-898298 | --JET, Main, Use With Carburetor Casting 866140001 | ACT | $11.80 | $11.51 | 2 | |||
| 19 | 3310-866292 | --JET, Enrichment | ACT | $19.92 | $19.56 | 1 | |||
| 20 | 3310-866293 | --EMULSION TUBE | ACT | $18.60 | $18.14 | 1 | |||
| 21 | 3302-850423001 | --VENTURI, Use With Carburetor Casting 866140001 | SS |
|
$0.00 | $0.00 | 1 | ||
| 22 | 3302-9031 | --FLOAT | ACT | $24.75 | $24.31 | 1 | |||
| 23 | 3302-803854 | --PLATE, Baffle | ACT | $7.10 | $6.93 | 1 | |||
| 24 | 3302-90301 | --PIN | ACT | $5.70 | $5.56 | 1 | |||
| 25 | 3310-866285A01 | --SCREW KIT, Idle Mixture | ACT | $77.33 | $74.38 | 1 | |||
| 26 | 3302-9060 | --SCREW | ACT | $6.93 | $6.77 | 1 | |||
| 27 | 3302-9054 | --SPRING | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 3302-850424 | --JET, Power | ACT | $29.75 | $29.22 | 1 | |||
| 29 | 35-53336Q | --STRAINER | ACT | $10.00 | $9.76 | 1 | |||
| 30 | 3310-810929004 | --GASKET SET, Carburetor | 810929003 | SS/ACT |
|
$69.83 | $67.17 | 1 | |
| 31 | 16-8M0113178 | --STUD, (.250-28 x 2.00) | 96112 | SS/ACT |
|
$3.00 | $2.93 | 1 | |
| 32 | 11-8267089 | --NUT, (.250-28) | ACT | $1.40 | $1.37 | 1 | |||
| 33 | 12-8M0204649 | --WASHER, (.281 x .500 x .060) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 34 | 11-8267139 | --NUT, (.250-28) | ACT | $2.50 | $2.44 | 1 | |||
| 35 | 3310-866146002 | GASKET | 866146001 | SS/ACT |
|
$27.92 | $27.42 | 1 |
