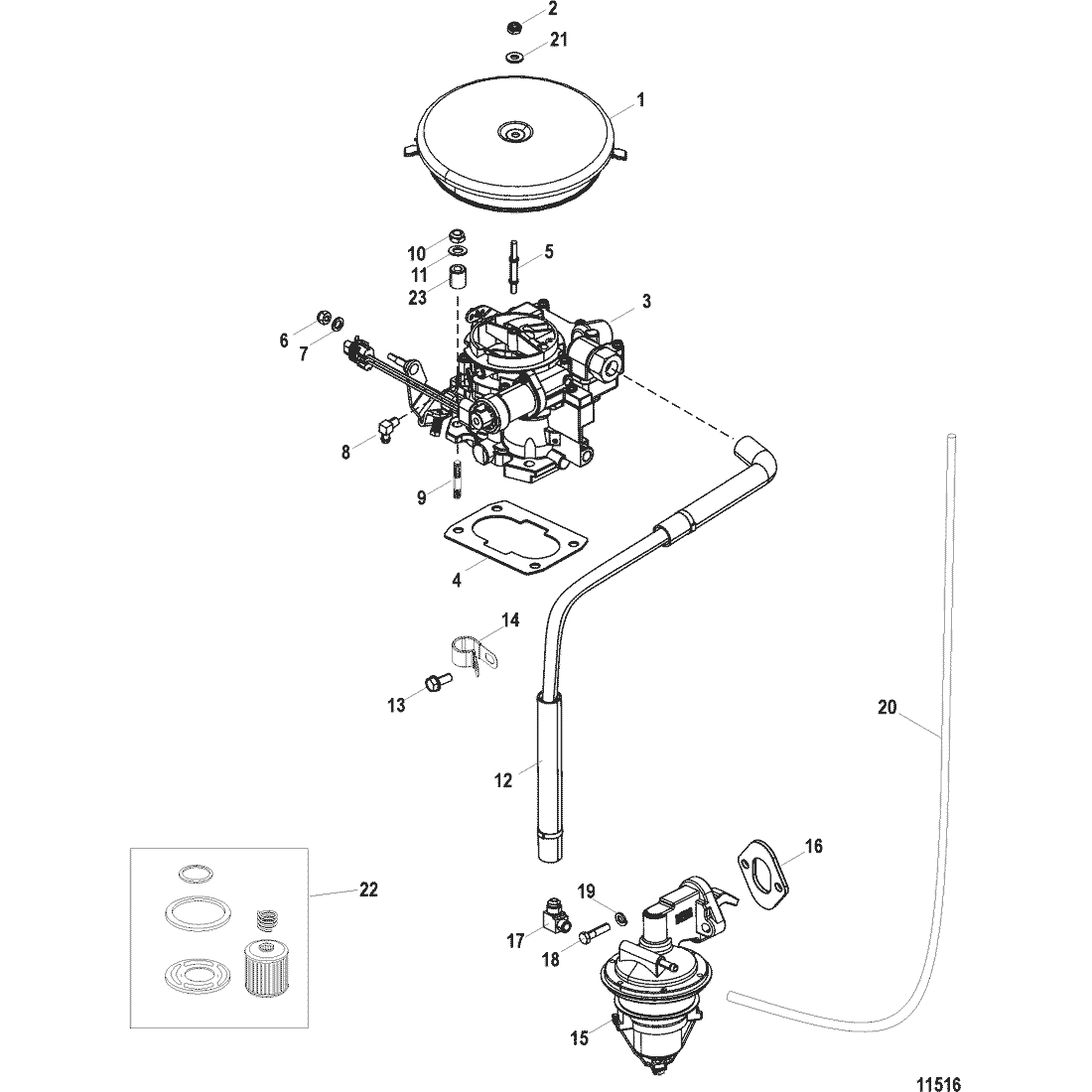

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 863200 | FLAME ARRESTOR, With Molded Hose Retainer | ACT | $224.99 | $202.47 | 1 | |||
| 2 | 8267139 | NUT, (.250-28) | ACT | $2.59 | $2.53 | 1 | |||
| 3 | 8M0084193 | CARBURETOR | 866140A02 | SS |
|
$972.49 | $885.53 | 1 | |
| 4 | 866027 | GASKET | ACT | $4.79 | $4.69 | 1 | |||
| 5 | 8M0113181 | STUD, (.250-20/.250-28 x Special) | 805295 | SS |
|
$41.99 | $41.24 | 1 | |
| 6 | 8267086 | --NUT, (#10-32) | ACT | $1.70 | $1.66 | 1 | |||
| 7 | 8M0204666 | --WASHER, (.203 x .500 x .032) | 56681 | SS |
|
$1.80 | $1.76 | 1 | |
| 8 | 54090 | --ELBOW (90 Degree) | ACT | $18.99 | $18.66 | 1 | |||
| 9 | 8M0113177 | STUD, (.312 x 1.500) | 70236 | SS |
|
$5.49 | $5.37 | 3 | |
| 9 | 65868 | STUD, (.312-18/.312-24 x 2.120) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 862902 | NUT, (.312-24) | ACT | $2.39 | $2.33 | 4 | |||
| 11 | 20084 | WASHER, (.328 x .562 x .062) | ACT | $2.97 | $2.92 | 4 | |||
| 12 | 8M0045357 | FUEL LINE ASSEMBLY, Fuel | 861304A01 | SS |
|
$183.49 | $165.20 | 1 | |
| 13 | 41508 | SCREW | 91026 | SS |
|
$3.79 | $3.69 | 1 | |
| 14 | 866029 | CLAMP | ACT | $1.20 | $1.18 | 1 | |||
| 15 | 8M0073435 | PUMP, Fuel | 861676A1 | SS |
|
$316.49 | $285.10 | 1 | |
| 16 | 8M0108647 | GASKET | 431861 | SS |
|
$19.69 | $19.21 | 1 | |
| 17 | 43276 | --ELBOW, (90 Degree) (90 Degree) | ACT | $19.69 | $19.21 | 1 | |||
| 18 | 8M0214949 | SCREW, (.312-18 x 1.375) | 808010 | SS |
|
$3.79 | $3.69 | 2 | |
| 19 | 39107 | LOCKWASHER, (.312-24) | ACT | $1.50 | $1.47 | 2 | |||
| 20 | 7381567 | TUBING, (42.00 Inches Bulk), Vent | ACT |
|
$30.99 | $30.36 | 1 | ||
| 21 | 86400 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 22 | 8M0046751 | FILTER KIT, Mercury Branded Package | 803897K1 | SS |
|
$20.49 | $19.99 | 1 | |
| 22 | 8M0046752 | FILTER KIT, Quicksilver Branded Package | 803897Q1 | SS |
|
$18.59 | $18.14 | 1 | |
| 23 | 65868 | STUD, (.312-18/.312-24 x 2.120) | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 810846A05 | GASKET SET, Overhaul | ACT | $657.49 | $598.40 | 1 | |||
| - | 8M0187364 | MARINE LONG BLOCK ENGINE | 864626A01 | NLA |
|
$6,212.50 | $5,777.63 | 1 |
