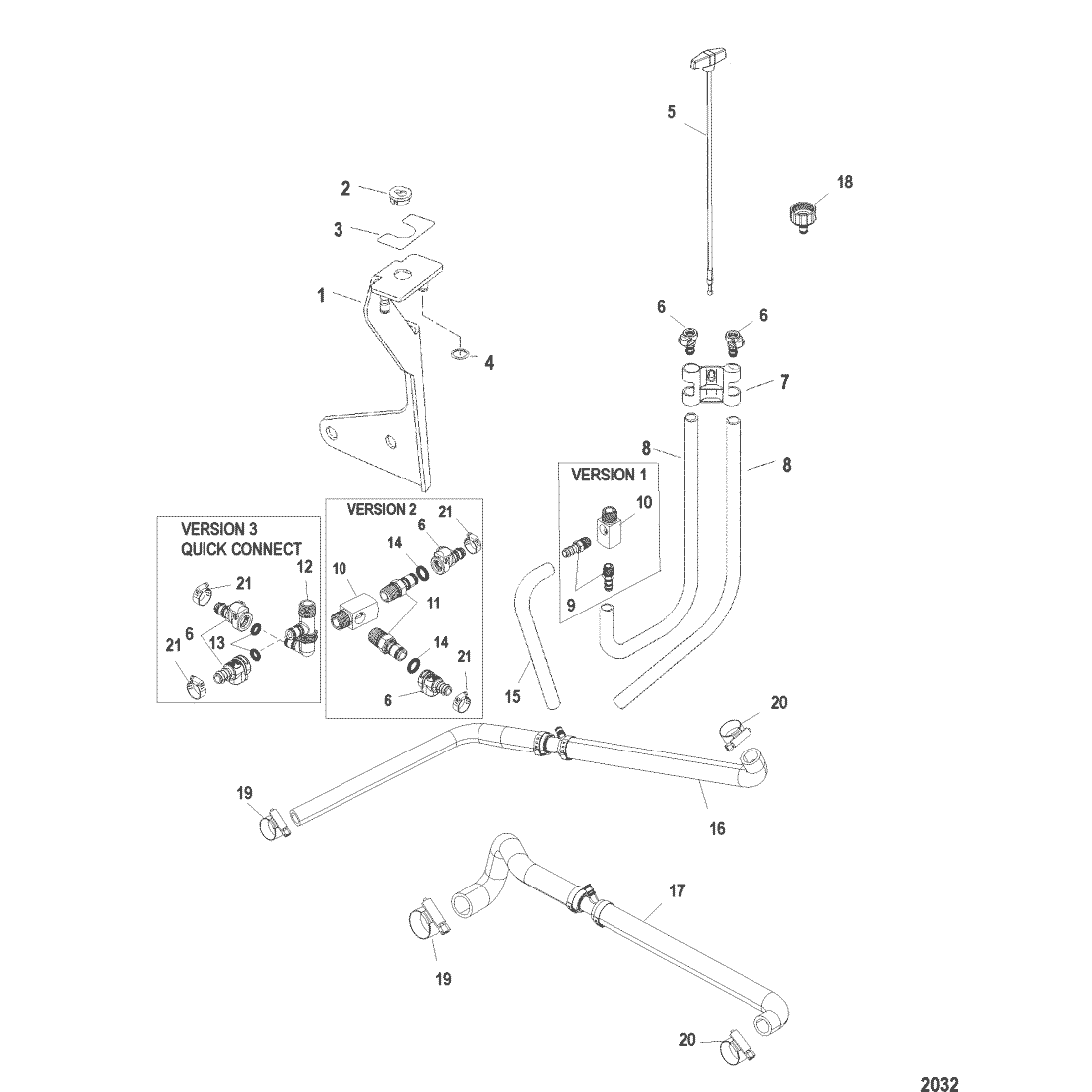

Drain System(S/N-0L630000 & Up)

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
1	862226A2	BRACKET, Drain		ACT	$49.67	$48.77	1
2	23-862298	--BUSHING		SS	$0.00	$0.00	1
3	37-862230	--DECAL, Warning		ACT	$4.10	$4.00	1
4	25-627021	--O-RING, (.301 x .070)		ACT	$1.60	$1.57	2
5	862257A1	T-HANDLE ASSEMBLY, With Cable		ACT	$40.00	$39.28	1
6	22-862225	FITTING, Coupling		ACT	$12.00	$11.71	AR
7	862229	SLIDER		ACT	$9.50	$9.27	1
8	32-8M0062585	HOSE, Blue Drain	8622241	SS/ACT	$31.75	$31.18	2
9	22-862223	FITTING		ACT	$4.68	$4.57	2
10	22-862605T1	FITTING	862329	SS/ACT	$9.10	$8.88	1
11	22-8M0180470	FITTING	862603	SS/ACT	$7.90	$7.71	2
12	22-862605T1	ADAPTOR ASSEMBLY, Includes O-Rings		ACT	$9.10	$8.88	1
13	25-627021	--O-RING, (.301 x .070)		ACT	$1.60	$1.57	2
14	25-627021	O-RING, (.301 x .070)		ACT	$1.60	$1.57	2
15	32-8M0062590	HOSE	8623175	SS/ACT	$33.33	$32.74	1
16	32-862325	HOSE, Transom to Thermostat Housing		ACT	$72.83	$70.06	1
17	32-862324	HOSE, Power Steering Cooler to Thermostat Housing		ACT	$80.17	$77.11	1
18	22-863840	FITTING, Flush	862228	SS/ACT	$22.67	$22.26	1
19	54-815504216	CLAMP, Worm Gear (1.56 Diameter), Hose		ACT	$18.00	$17.56	2
20	54-815504212	CLAMP, Worm Gear, Hose		ACT	$5.70	$5.56	AR
21	54-815504222	CLAMP, Worm Gear (1.98 DIameter)		ACT	$6.20	$6.05	AR
NS	19-8M0074364	COVER, Hose Clamp End		ACT	$3.20	$3.13	AR
-	861481A2	POWER STEERING KIT		ACT	$1,214.21	$1,113.10	1

1

862226A2

BRACKET, Drain

ACT

$49.67

$48.77

1

2

23-862298

--BUSHING

SS

$0.00

1

3

37-862230

--DECAL, Warning

ACT

$4.10

$4.00

1

4

25-627021

--O-RING, (.301 x .070)

ACT

$1.60

$1.57

2

5

862257A1

T-HANDLE ASSEMBLY, With Cable

ACT

$40.00

$39.28

1

6

22-862225

FITTING, Coupling

ACT

$12.00

$11.71

AR

7

862229

SLIDER

ACT

$9.50

$9.27

1

8

32-8M0062585

HOSE, Blue Drain

8622241

SS/ACT

$31.75

$31.18

2

9

22-862223

FITTING

ACT

$4.68

$4.57

2

10

22-862605T1

FITTING

862329

SS/ACT

$9.10

$8.88

1

11

22-8M0180470

FITTING

862603

SS/ACT

$7.90

$7.71

2

12

22-862605T1

ADAPTOR ASSEMBLY, Includes O-Rings

ACT

$9.10

$8.88

1

13

25-627021

--O-RING, (.301 x .070)

ACT

$1.60

$1.57

2

14

25-627021

O-RING, (.301 x .070)

ACT

$1.60

$1.57

2

15

32-8M0062590

HOSE

8623175

SS/ACT

$33.33

$32.74

1

16

32-862325

HOSE, Transom to Thermostat Housing

ACT

$72.83

$70.06

1

17

32-862324

HOSE, Power Steering Cooler to Thermostat Housing

ACT

$80.17

$77.11

1

18

22-863840

FITTING, Flush

862228

SS/ACT

$22.67

$22.26

1

19

54-815504216

CLAMP, Worm Gear (1.56 Diameter), Hose

ACT

$18.00

$17.56

2

20

54-815504212

CLAMP, Worm Gear, Hose

ACT

$5.70

$5.56

AR

21

54-815504222

CLAMP, Worm Gear (1.98 DIameter)

ACT

$6.20

$6.05

AR

NS

19-8M0074364

COVER, Hose Clamp End

ACT

$3.20

$3.13

AR

-

861481A2

POWER STEERING KIT

ACT

$1,214.21

$1,113.10

1
