| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

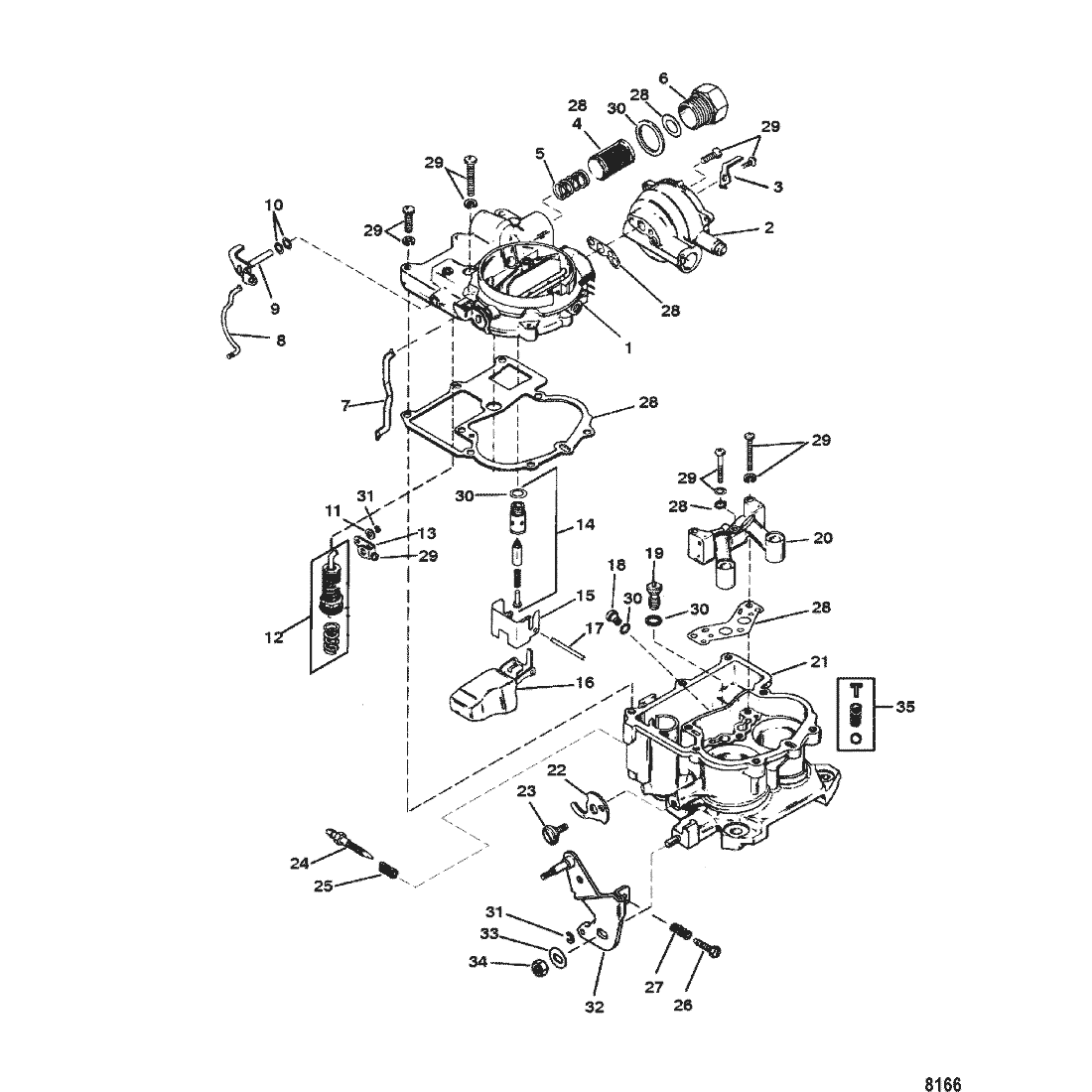

| - | 3310-8M0045397 | CARBURETOR ASSEMBLY | 807504A1 | SS/ACT |
 |
$1,357.07 | $1,244.06 | 1 | |
| - | 3310-8M0045397 | CARBURETOR ASSEMBLY | 864940A01 | SS/ACT |
|
$1,357.07 | $1,244.06 | 1 | |
| - | 3310-807505A1 | CARBURETOR ASSEMBLY, Swiss Emissions | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | NSS | --NOT SOLD SEPARATE, Air Horn Assembly |
|
$0.00 | $0.00 | 1 | |||
| 2 | NSS | --NOT SOLD SEPARATE, Housing, Choke |
|
$0.00 | $0.00 | 1 | |||
| 3 | 3302-9037 | --ARM, Choke | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 35-53336Q | --STRAINER | ACT | $10.00 | $9.76 | 1 | |||
| 5 | 3302-9032 | --SPRING | ACT | $7.60 | $7.42 | 1 | |||
| 6 | 91-90341 | --CONNECTOR | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 3302-9042 | --ROD, Choke | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 3302-8109201 | --ROD, Accelerator Pump | ACT | $7.50 | $7.32 | 1 | |||
| 9 | 3302-823725 | --LEVER | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 3302-9039 | --WASHER | SS |
|
$0.00 | $0.00 | 2 | ||
| 11 | 3302-810919 | --WASHER | ACT | $2.70 | $2.64 | 1 | |||
| 12 | 3302-96551 | --PUMP KIT, Accelerator | ACT | $115.08 | $108.38 | 1 | |||
| 13 | 3302-810916 | --ARM | ACT | $12.60 | $12.29 | 1 | |||
| 14 | 3302-804689 | --SEAT KIT, Inlet | ACT | $51.92 | $49.94 | 1 | |||
| 15 | 3302-803854 | --PLATE, Baffle | ACT | $7.10 | $6.93 | 1 | |||
| 16 | 3302-9031 | --FLOAT | ACT | $24.75 | $24.31 | 1 | |||
| 17 | 3302-90301 | --PIN, Float | ACT | $5.70 | $5.56 | 1 | |||
| 18 | 3302-811853 | --JET, Main | ACT |
|
$19.30 | $18.82 | 2 | ||
| 18 | 3302-9050 | --JET, (1.45MM), Main | ACT |
|
$17.20 | $16.78 | 2 | ||
| 19 | 3302-9059 | --JET POWER, Power | ACT |
|
$21.58 | $21.20 | 1 | ||
| 19 | 3302-850424 | --JET, Power | ACT |
|
$29.75 | $29.22 | 1 | ||
| 20 | 3302-850423 | --VENTURI | ACT |
|
$44.58 | $43.77 | 1 | ||
| 20 | 3302-803931 | VENTURI | SS |
|
$0.00 | $0.00 | 1 | ||
| 21 | NSS | --NOT SOLD SEPARATE, Body, Carburetor |
|
$0.00 | $0.00 | 1 | |||
| 22 | 3302-9048 | --CAM | ACT | $11.90 | $11.61 | 1 | |||
| 23 | 3302-9049 | --SHAFT | ACT | $4.40 | $4.30 | 1 | |||
| 24 | 3302-9052 | --SCREW | ACT | $29.33 | $28.81 | 1 | |||
| 25 | 3302-9053 | --SPRING | ACT | $5.78 | $5.64 | 1 | |||
| 26 | 3302-810926 | --SCREW | SS |
|
$0.00 | $0.00 | 1 | ||
| 27 | 3302-9054 | --SPRING | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 3302-810929004 | --GASKET SET | 8109292 | SS/ACT |
|
$69.83 | $67.17 | 1 | |
| 29 | 3302-810930 | --SCREW KIT | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 3302-9044 | --PACKING SET | ACT |
|
$10.30 | $10.05 | 1 | ||
| 31 | 3302-808675 | ----CLIP, Spring | ACT | $1.70 | $1.66 | 2 | |||
| 32 | 3302-810925 | --LEVER, Throttle | ACT | $91.25 | $87.77 | 1 | |||
| 33 | 3302-810927 | --WASHER | ACT | $11.24 | $11.03 | 1 | |||
| 34 | 3302-810928 | --NUT | ACT | $6.30 | $6.15 | 1 | |||
| 35 | 3302-809520 | --CHECK BALL KIT | ACT | $15.40 | $15.02 | 1 |
