| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

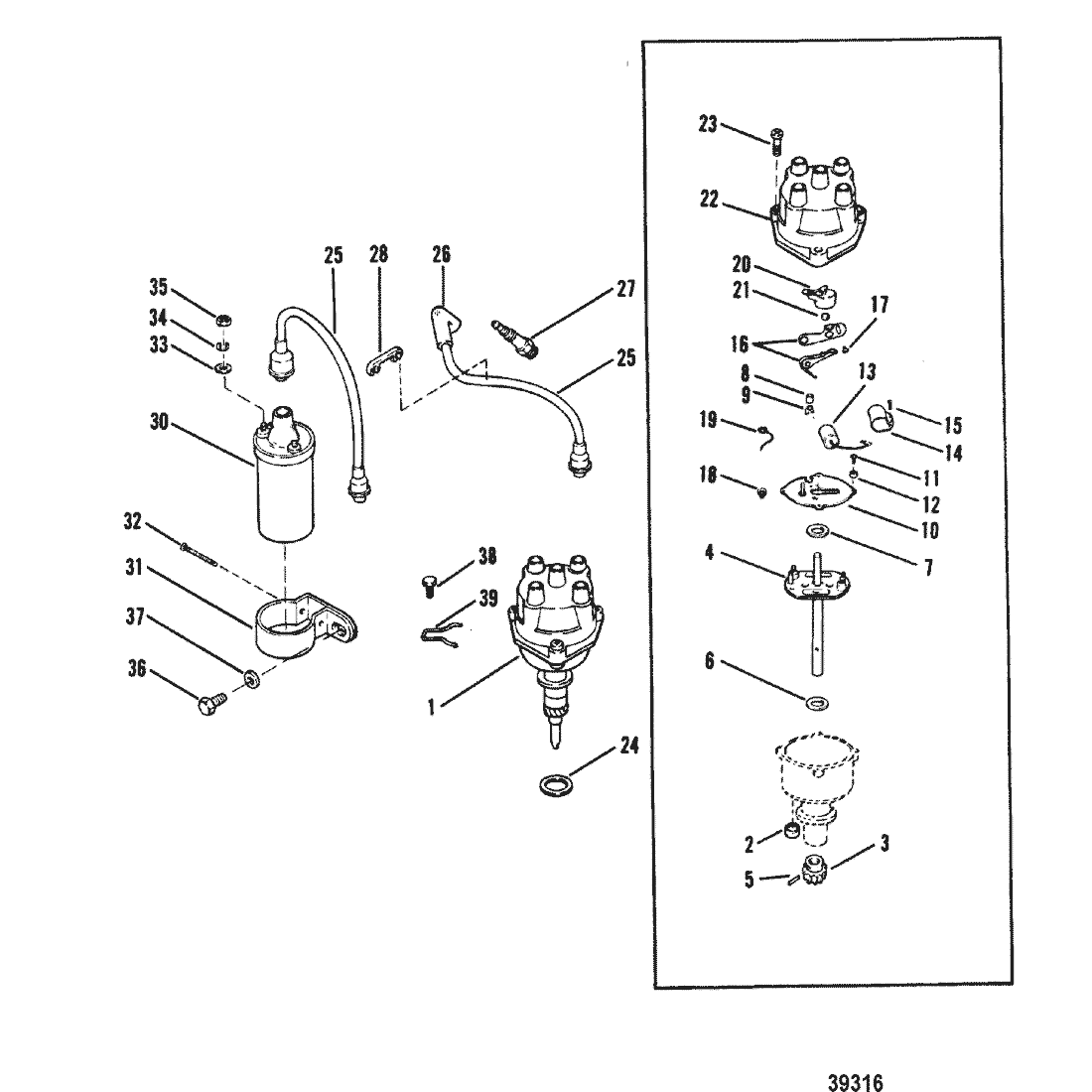

| 1 | 195141 | DISTRIBUTOR ASSEMBLY, COMPLETE | 87581 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 62426 | --SCREW, VENT - DISTRIBUTOR HOUSING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 33664 | --GEAR, DRIVE - MAIN SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 87597 | --SHAFT AND PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 33649 | --PIN, Drive, DRIVE GEAR TO MAIN SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 58219 | --SEAL, HOUSING | NLA |
|
$10.72 | $10.46 | 1 | ||
| 8 | 33653 | --FELT, BREAKER CAM LUBRICATOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 72654 | --RETAINER, BREAKER CAM LUBRICATOR FELT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 62425 | --WASHER, BREAKER PLATE SUPPORT SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 8M6001218 | --CONDENSER | 33662 | SS |
|
$9.89 | $9.66 | 1 | |
| 14 | 48024 | --BRACKET, CONDENSER MOUNTING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 48021 | --SCREW, CONDENSER BRACKET ATTACHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 34235T | --BREAKER ASSEMBLY, DISTRIBUTOR | 34235 | SS |
|
$16.79 | $16.45 | 1 | |
| 17 | 33650 | --SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 33666 | --GROMMET, MOUNTING PLATE - PRIMARY WIRE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 33658 | --LEAD, PRIMARY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 8M6001251 | --ROTOR, DISTRIBUTOR | 58217 | SS |
|
$6.59 | $6.44 | 1 | |
| 21 | 36275 | --WASHER, ROTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 9459Q1 | --CAP, Distributor | 9459 | SS |
|
$31.99 | $31.34 | 1 | |
| 24 | 87707 | GASKET, DISTRIBUTOR | ACT | $16.29 | $15.90 | 1 | |||
| 25 | 816761Q5 | SPARK PLUG WIRE KIT | 813720A5 | SS |
|
$60.99 | $58.59 | 1 | |
| 26 | 63709A1 | --BOOT/TERMINAL KIT, HIGH TENSION LEAD | ACT | $8.19 | $8.00 | 4 | |||
| 27 | 8M0204752 | SPARK PLUG | 59571 | SS |
|
$8.29 | $8.10 | 4 | |
| 28 | 32782 | RETAINER, HIGH TENSION LEADS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 30 | 898253T24 | COIL ASSEMBLY, IGNITION | 32193A2 | SS |
|
$75.99 | $73.11 | 1 | |
| 31 | 65970T1 | BRACKET, IGNITION COIL MOUNTING | 65970 | SS |
|
$17.89 | $17.46 | 1 | |
| 32 | 41408 | SCREW, (#10-32 x 1.50), MOUNTING BRACKET TO COIL | ACT | $3.39 | $3.30 | 1 | |||
| 33 | 30164 | WASHER, (.192 x .375 x .0312) Stainless Steel, IGNITION COIL TERMINAL | ACT | $2.49 | $2.43 | 2 | |||
| 34 | 26996 | LOCKWASHER, (#10) Stainless Steel, IGNITION OCIL TERMIANL | ACT | $1.20 | $1.18 | 2 | |||
| 35 | 68219 | NUT, (#10-32) Stainless Steel, IGNITION COIL TERMINAL | ACT | $2.99 | $2.92 | 2 | |||
| 36 | 98261 | SCREW, (.375-16 x .75), IGNITION COIL TO CYLINDER BLOCK | 27165 | SS |
|
$1.20 | $1.18 | 1 | |
| 37 | 20553 | WASHER, (.406 x .734 x .063), IGNITION COIL SCREW | ACT | $1.50 | $1.47 | 1 | |||
| 38 | 21077 | SCREW, (.375-16 x .88), DISTRIBUTOR TO CYLINDER BLOCK | NLA |
|
$0.64 | $0.63 | 1 | ||
| 39 | 72624 | CLAMP, DISTRIBUTOR | ACT | $11.50 | $11.22 | 1 |
