Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

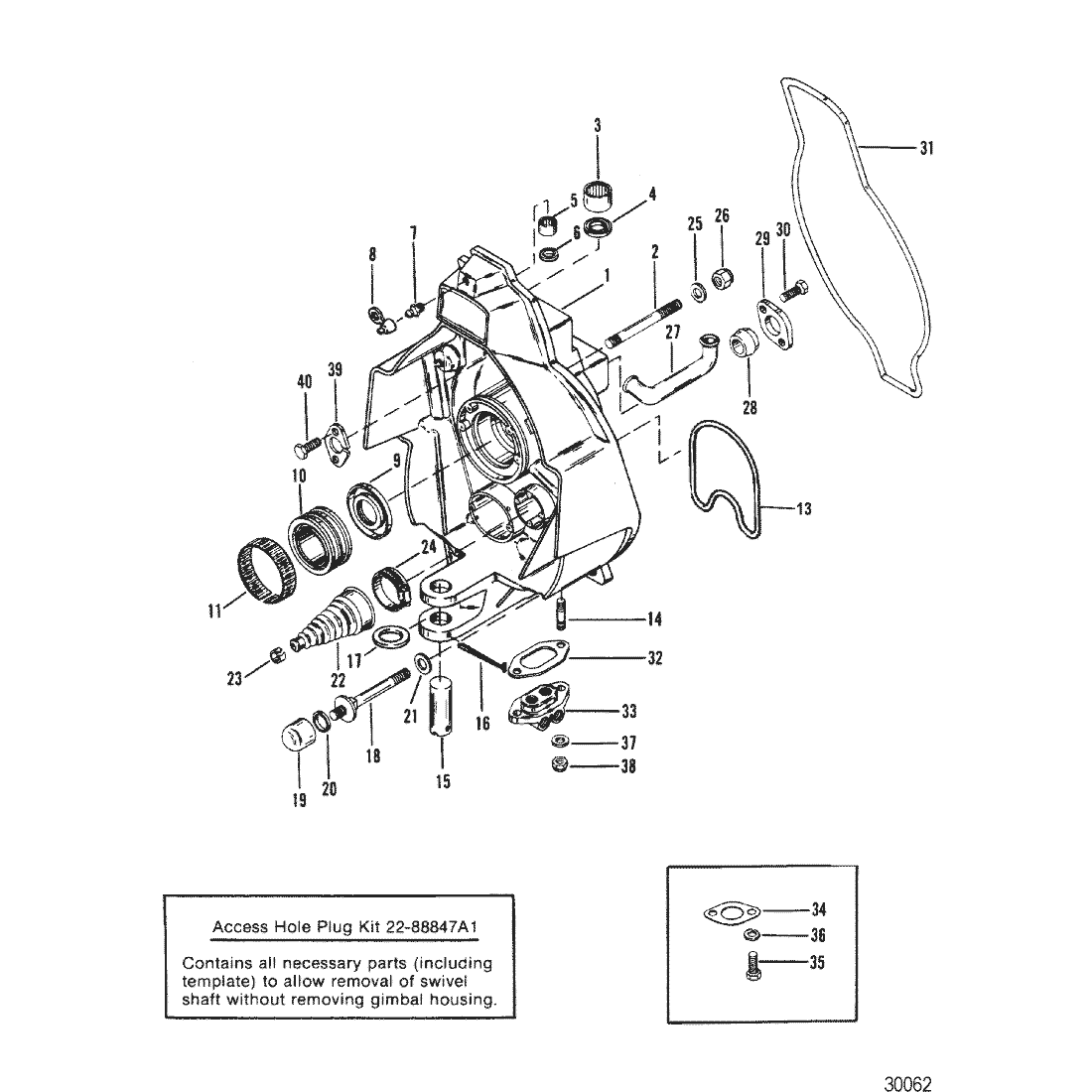

1 8M0065152 GIMBAL HOUSING ASSEMBLY 94989A6 SS $0.00 $0.00 1
3 32536 --BEARING, GIMBAL HOUSING (LOWER) ACT $5.98 $5.84 1
4 32911 --SEAL, Oil, LOWER GIMBAL HOUSING BEARING ACT $15.59 $15.22 2
5 21145 --BEARING, Roller, GIMBAL HOUSING (UPPER) ACT $17.29 $16.94 1
6 54925 --SEAL, Oil, UPPER GIMBAL HOUSING BEARING ACT $20.29 $19.89 1
7 8M0169589 --FITTING, Grease, GIMBAL HOUSING 74036 SS $4.79 $4.69 2
7 8M0204738 --PLUG, (.250-28 x .320) 8M2015913 SS $6.89 $6.73 2
8 77633Q --LUBRICAP, GIMBAL HOUSING GREASE FITTING ACT $6.99 $6.83 2
9 88416 --SEAL, Oil, GIMBAL HOUSING NLA $0.00 $0.00 1
10 879194A02 --BEARING ASSEMBLY, GIMBAL HOUSING 60794A4 SS $138.99 $124.94 1
11 61075 ----TOLERANCE RING, GIMBAL HOUSING BEARING NLA $0.00 $0.00 1
13 41802 --SEAL, Rubber, EXHAUST SEAL ACT $15.99 $15.61 1
14 56766 --STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING ACT $3.69 $3.59 2
15 45212 PIN, Lower Swivel, GIMBAL HOUSING TO GIMBAL RING ACT $0.00 $0.00 1
16 54929 COTTER PIN, LOWER SWIVEL PIN 34212 SS $7.89 $7.71 1
17 32518 WASHER, LOWER SWIVEL PIN ACT $3.79 $3.69 1
18 8M0030655 BOLT ASSEMBLY, ANODIC 55989A8 SS $72.49 $67.96 2
19 55989Q9 --ANODE KIT, BOLT ACT $20.09 $19.72 2
20 56085 --WASHER, ANODIC BOLT ACT $1.20 $1.18 2
21 32620 WASHER, GIMBAL HOUSING BOLT ACT $1.50 $1.47 2
22 74639A2 BELLOWS ASSEMBLY, SHIFT ACTUATING CABLE ACT $34.99 $34.29 1
23 8M0204733 CLAMP, ACTUATING CABLE BELLOWS 38863 SS $7.49 $7.32 1
24 8M0204716 CLAMP, Worm Gear, ACTUATING CABLE BELLOWS 815504320 SS $11.49 $11.22 1
25 34567 WASHER, GIMBAL HOUSING STUD ACT $1.50 $1.47 2
26 8M0204653 NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD 82671015 SS $5.29 $5.17 2
27 8M0171251 TUBE, WATER -5/8 inch I.D. WATER TUBE 869071 NLA $44.99 $44.12 1
27 8M0171319 TUBE, Water, WATER (3/4 inch I.D. WATER TUBE) 416721 SS $34.49 $33.83 1
28 28055 BUSHING, RUBBER - WATER TUBE (5/8 inch I.D. WATER TUBE) NLA $0.00 $0.00 1
28 416751 BUSHING, RUBBER - WATER TUBE (3/4 inch I.D. WATER TUBE) ACT $13.99 $13.66 1
29 32517 COVER, WATER TUBE (5/8 inch I.D. WATER TUBE) NLA $0.00 $0.00 1
29 8M0092452 COVER, WATER TUBE (3/4 inch I.D. WATER TUBE) 41673 SS $9.89 $9.66 1
30 28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING ACT $1.80 $1.76 2
31 65533A1 SEAL, GIMBAL HOUSING TO TRANSOM ACT $21.59 $21.20 1
32 988231 GASKET, HYDRAULIC CONNECTOR ACT $3.19 $3.11 1
33 8M0137703 MANIFOLD ASSEMBLY, HYDRAULIC 98825A4 SS $129.99 $117.12 1
34 995061 --GASKET, CONNECTOR COVER ACT $2.49 $2.43 1
35 28636 --SCREW, (.250-20 x .750), CONNECTOR COVER ACT $1.80 $1.76 2
36 78968 --LOCKWASHER, Internal (.250), CONNECTOR COVER ACT $1.80 $1.76 2
37 78968 LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR STUD ACT $1.80 $1.76 2
38 8267119 NUT, (.250-28), HYDRAULIC CONNECTOR STUD ACT $2.59 $2.53 2
39 12078 COVER, GIMBAL HOUSING 57322T NLA $13.59 $13.27 1
40 28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING ACT $1.80 $1.76 2
- 8M0176525 CABLE KIT, Shift 19543T1 SS $164.99 $148.68 1
- 803097T1 SEAL KIT, Transom (with Exhaust Bellow) ACT $339.99 $306.21 1
- 803098T1 SEAL KIT, Transom (with Exhaust Tube) ACT $356.99 $321.84 1
