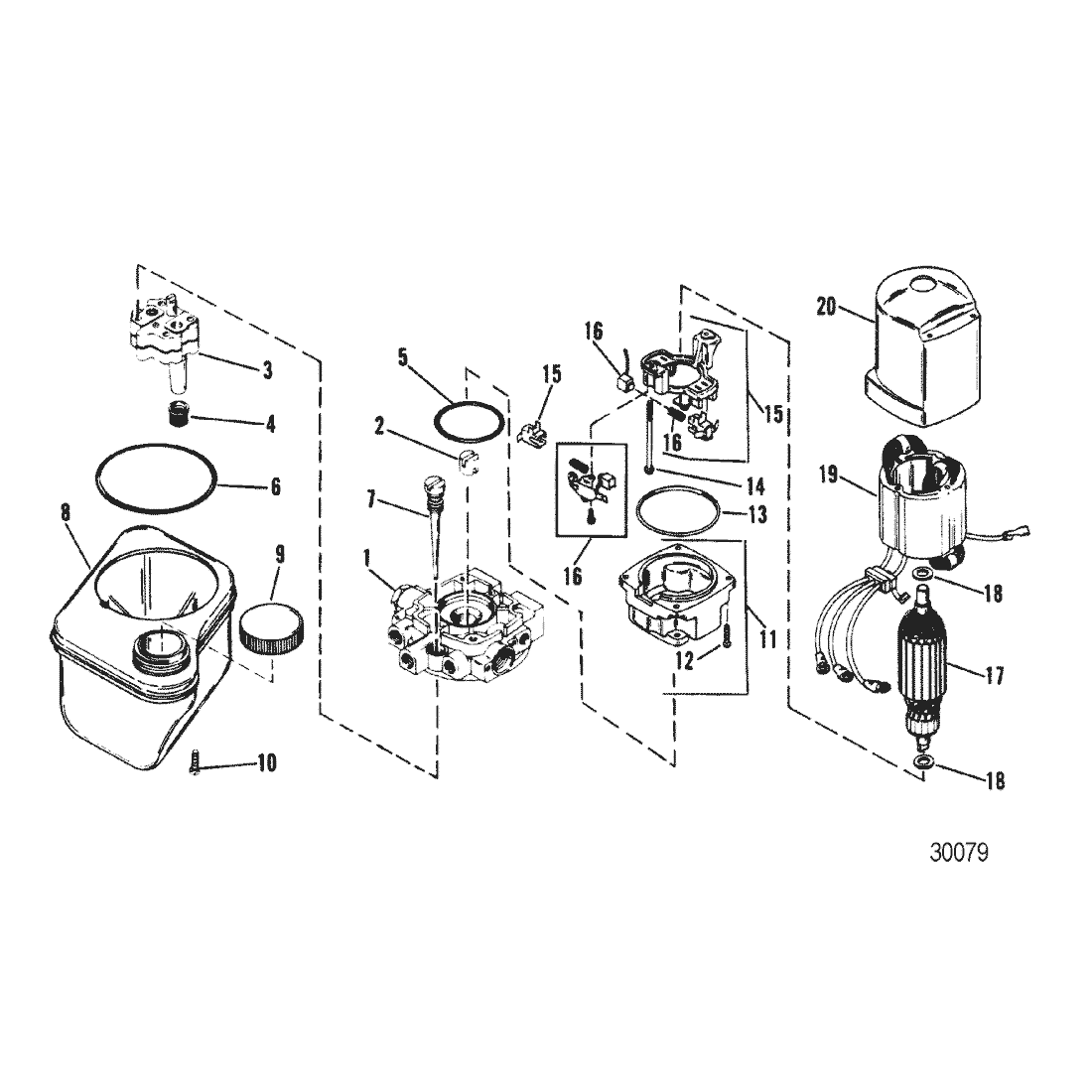

HYDRAULIC PUMP OILDYNE PUMP/ PLASTIC RESERVOIR

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
--	865380A13	PUMP/MOTOR ASSEMBLY	14336A20	SS/ACT	$1,123.14	$899.00	1
1	808728T	--ADAPTER ASSEMBLY		ACT	$400.79	$383.10	1
2	803852	----COUPLING		ACT	$61.42	$59.08	1
3	18529	----PUMP ASSEMBLY (INCLUDES SCREWS)		ACT	$401.50	$383.78	1
4	35-89496	------FILTER		ACT	$12.60	$12.29	1
5	25-89498	----O-RING, MOTOR END		ACT	$11.00	$10.73	1
6	25-17645	----O-RING, RESERVOIR END		ACT	$18.67	$18.33	1
7	41218	--DIPSTICK		SS	$0.00	$0.00	1
8	18525A1	--RESERVOIR		SS	$0.00	$0.00	1
9	36-861597	----CAP (WITH VENT HOLE)		SS	$0.00	$0.00	1
10	10-18527	----SCREW (INCLUDES O-RING)		ACT	$7.10	$6.93	1
--	891736T	--MOTOR ASSEMBLY, HYDRAULIC PUMP	17649T	SS/ACT	$364.14	$348.07	1
11	17632T	----END CAP ASSEMBLY		SS	$0.00	$0.00	1
12	10-17626	------SCREW, END CAP		SS	$0.00	$0.00	4
13	25-17625	----O-RING, HOUSING		SS	$0.00	$0.00	1
14	10-17621	----SCREW, FIELD FRAME		SS	$0.00	$0.00	2
15	891736T	----HOLDER KIT		ACT	$364.14	$348.07	1
16	17631A1	----BRUSH KIT		SS	$0.00	$0.00	1
17	891736T	----ARMATURE		ACT	$364.14	$348.07	1
18	12-17653	----WASHER, THRUST - ARMATURE		SS	$0.00	$0.00	2
19	891736T	----FIELD AND FRAME ASSEMBLY		ACT	$364.14	$348.07	1
20	17622	----COVER ASSEMBLY		SS	$0.00	$0.00	1
-	18545A1	REPAIR KIT		ACT	$168.00	$158.21	-
-	95353A1	VALVE KIT, Relief		ACT	$66.33	$63.80	-
-	812499A1	VALVE KIT, Relief		ACT	$114.00	$107.36	-
-	812498A1	VALVE KIT, Relief		ACT	$103.25	$97.24	-

--

865380A13

PUMP/MOTOR ASSEMBLY

14336A20

SS/ACT

$1,123.14

$899.00

1

808728T

--ADAPTER ASSEMBLY

ACT

$400.79

$383.10

1

2

803852

----COUPLING

ACT

$61.42

$59.08

1

3

18529

----PUMP ASSEMBLY (INCLUDES SCREWS)

ACT

$401.50

$383.78

1

4

35-89496

------FILTER

ACT

$12.60

$12.29

1

5

25-89498

----O-RING, MOTOR END

ACT

$11.00

$10.73

1

6

25-17645

----O-RING, RESERVOIR END

ACT

$18.67

$18.33

1

7

41218

--DIPSTICK

SS

$0.00

1

8

18525A1

--RESERVOIR

SS

$0.00

1

9

36-861597

----CAP (WITH VENT HOLE)

SS

$0.00

1

10

10-18527

----SCREW (INCLUDES O-RING)

ACT

$7.10

$6.93

1

--

891736T

--MOTOR ASSEMBLY, HYDRAULIC PUMP

17649T

SS/ACT

$364.14

$348.07

1

11

17632T

----END CAP ASSEMBLY

SS

$0.00

1

12

10-17626

------SCREW, END CAP

SS

$0.00

4

13

25-17625

----O-RING, HOUSING

SS

$0.00

1

14

10-17621

----SCREW, FIELD FRAME

SS

$0.00

2

15

891736T

----HOLDER KIT

ACT

$364.14

$348.07

1

16

17631A1

----BRUSH KIT

SS

$0.00

1

17

891736T

----ARMATURE

ACT

$364.14

$348.07

1

18

12-17653

----WASHER, THRUST - ARMATURE

SS

$0.00

2

19

891736T

----FIELD AND FRAME ASSEMBLY

ACT

$364.14

$348.07

1

20

17622

----COVER ASSEMBLY

SS

$0.00

1

-

18545A1

REPAIR KIT

ACT

$168.00

$158.21

-

95353A1

VALVE KIT, Relief

ACT

$66.33

$63.80

-

812499A1

VALVE KIT, Relief

ACT

$114.00

$107.36

-

812498A1

VALVE KIT, Relief

ACT

$103.25

$97.24

-
