| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

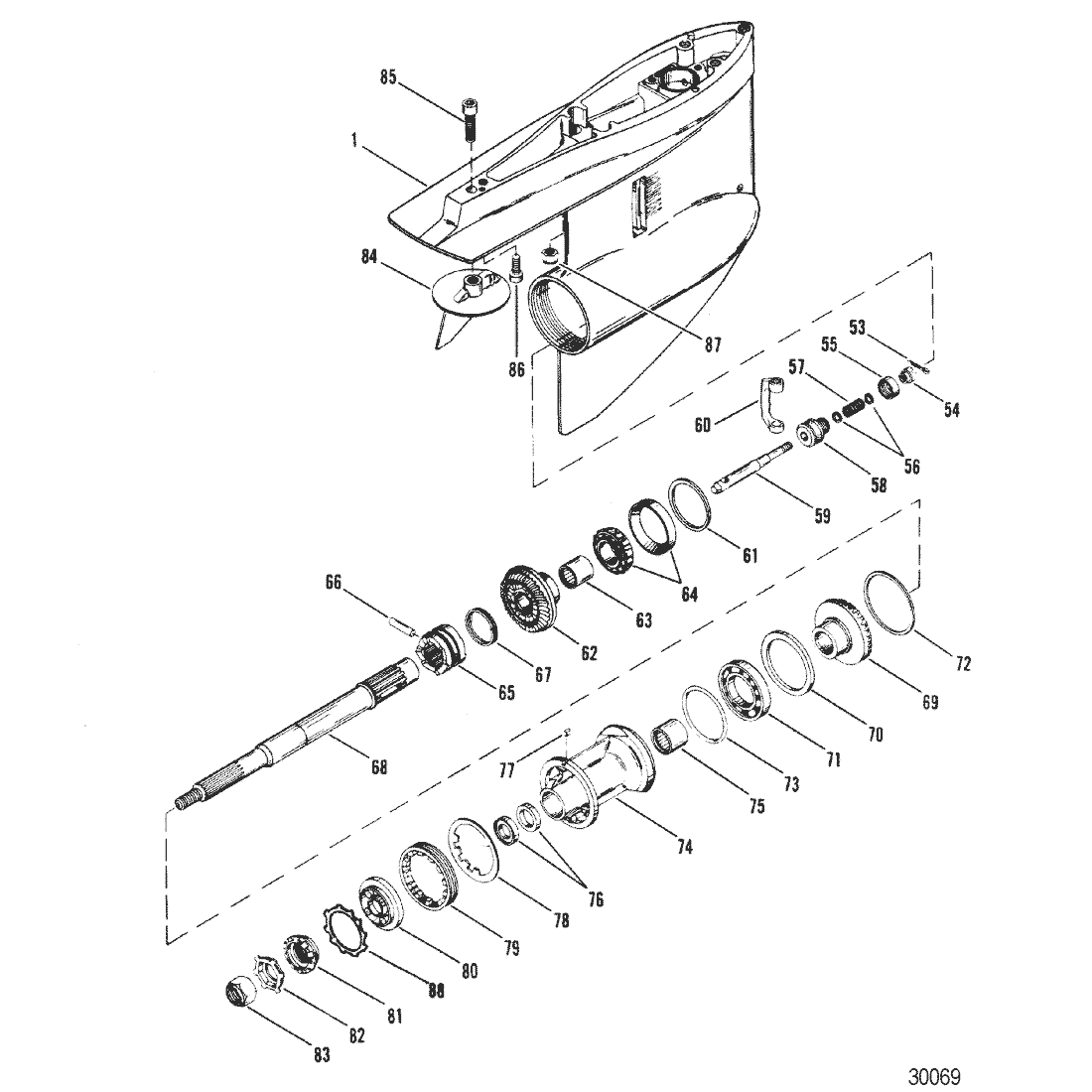

| -- | 1623-8951A43 | GEAR HOUSING ASSEMBLY, COMPLETE | ACT |
 |
$3,042.85 | $2,829.99 | 1 | ||
| 1 | 1623-5356A4 | --GEAR HOUSING ASSEMBLY | ACT | $1,337.79 | $1,226.38 | 1 | |||
| 53 | 18-469501 | --COTTER PIN, CLUTCH ACTUATING SHAFT | ACT |
|
$4.30 | $4.20 | 1 | ||
| 54 | NSS | --NOT SOLD SEPARATE, ADJUSTING - SHAFT |
|
$0.00 | $0.00 | 1 | |||
| 55 | NSS | --NOT SOLD SEPARATE, SPRING - SHAFT |
|
$0.00 | $0.00 | 1 | |||
| 56 | NSS | --NOT SOLD SEPARATE, CLUTCH ACTUATING SHAFT |
|
$0.00 | $0.00 | 2 | |||
| 57 | NSS | --NOT SOLD SEPARATE, COMPRESSION |
|
$0.00 | $0.00 | 1 | |||
| 58 | NSS | --NOT SOLD SEPARATE, CLUTCH ACTUATING SHAFT |
|
$0.00 | $0.00 | 1 | |||
| 59 | NSS | --NOT SOLD SEPARATE, CLUTCH ACTUATING |
|
$0.00 | $0.00 | 1 | |||
| 60 | 8M0225673 | --CRANK, Shift | 76865 | SS/ACT |
|
$104.92 | $98.81 | 1 | |
| 61 | 15-47397A1 | --SHIM SET, BEARING OUTER RACE | ACT |
|
$19.30 | $18.82 | AR | ||
| 62 | NSS | --NOT SOLD SEPARATE |
|
$0.00 | $0.00 | 1 | |||
| 63 | 31-30895T | ----BEARING, Needle, FORWARD GEAR | ACT |
|
$21.78 | $21.26 | 1 | ||
| 64 | 31-35928T1 | --BEARING ASSEMBLY, Tapered Roller | ACT |
|
$87.92 | $84.56 | 1 | ||
| 65 | 52-853594T | --CLUTCH, SLIDING | ACT |
|
$287.92 | $271.14 | 1 | ||
| 66 | 17-8M0100263 | --PIN, Cross, CLUTCH TO PROPELLER CHAFT | ACT | $4.30 | $4.20 | 1 | |||
| 67 | 24-30893 | --SPRING, RETAINER - CROSS PIN | ACT | $2.60 | $2.54 | 1 | |||
| 68 | 44-8M0140440 | --PROPELLER SHAFT | 824110 | SS/ACT |
|
$648.21 | $609.85 | 1 | |
| 69 | 43-92320T | --GEAR, Reverse | ACT |
|
$149.92 | $141.18 | 1 | ||
| 70 | 35915 | --THRUST RING, BEARING CARRIER | SS |
|
$0.00 | $0.00 | 1 | ||
| 71 | 30-88957T | --BEARING, Ball, REVERSE GEAR | ACT |
|
$62.00 | $59.64 | 1 | ||
| 72 | 15-97166 | --SHIM, THRUST WASHER TO GEAR HOUSING | ACT |
|
$8.00 | $7.81 | 1 | ||
| 73 | 25-8M0214920 | --O-RING, BEARING CARRIER | 31534 | SS/ACT |
|
$6.10 | $5.95 | 1 | |
| 74 | 73020A14 | --CARRIER ASSEMBLY, Bearing | SS |
|
$0.00 | $0.00 | 1 | ||
| 75 | 31-30956T | ----BEARING, Needle, BEARING CARRIER | ACT |
|
$20.43 | $19.93 | 1 | ||
| 76 | 26-8M0204670 | ----SEAL, BEARING CARRIER | 76868 | SS/ACT |
|
$18.50 | $18.04 | 2 | |
| 77 | 28-30281 | --KEY, LOCATING - BEARING CARRIER | ACT | $2.90 | $2.83 | 1 | |||
| 78 | 14-79447 | --TAB WASHER, GEAR HOUSING COVER | ACT |
|
$13.20 | $12.88 | 1 | ||
| 79 | 8M2011027 | --RETAINER, GEAR HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 80 | 12-835467Q01 | THRUST HUB (FOR USE W/ BLACK MAX PROPELLERS) | 8354671 | SS/ACT |
|
$39.62 | $38.90 | 1 | |
| 80 | 56292Q04 | THRUST HUB (FOR USE W/M/C I PROPELLERS) | 56292A4 | SS/ACT |
|
$94.70 | $91.08 | 1 | |
| 81 | 12-31211Q03 | WASHER, PLINED - PROPELLER SHAFT | 31211A3 | SS/ACT |
|
$14.11 | $13.87 | 1 | |
| 82 | 14-816629Q | TAB WASHER, PROPELLER NUT | 816629 | SS/ACT |
|
$5.62 | $5.52 | 1 | |
| 83 | 11-52707Q1 | PROP NUT KIT, (.750-16), PROPELLER | ACT | $15.63 | $15.36 | 1 | |||
| 84 | 97-31640Q4 | TRIM TAB, GEAR HOUSING (2-3/8 inch) | ACT | $17.92 | $17.60 | 1 | |||
| 84 | 34127T2 | TRIM TAB ASSEMBLY, GEAR HOUSING (4 inch) | ACT |
|
$25.67 | $25.21 | OPT | ||
| 85 | 10-32470 | SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING | ACT | $4.00 | $3.91 | 1 | |||
| 86 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING | ACT | $4.00 | $3.91 | 1 | |||
| 87 | 11-8M0204653 | NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD | 82671015 | SS/ACT |
|
$5.10 | $4.98 | 2 | |
| 88 | 13-423511 | LOCKWASHER, Toothed, PROPELLER SHAFT | ACT | $2.83 | $2.77 | 1 | |||
| - | 43-96084A08 | GEAR REPLACEMENT KIT | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 26-33144A2 | SEAL KIT | ACT | $95.83 | $92.18 | 1 | |||
| - | 43-96084A4 | GEAR SET | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 31-803068T1 | BEARING AND SEAL KIT | ACT | $394.67 | $371.66 | 1 | |||
| - | 43-803079T1 | REPAIR KIT, Lower Gear | ACT | $1,059.98 | $816.60 | 1 |
