| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

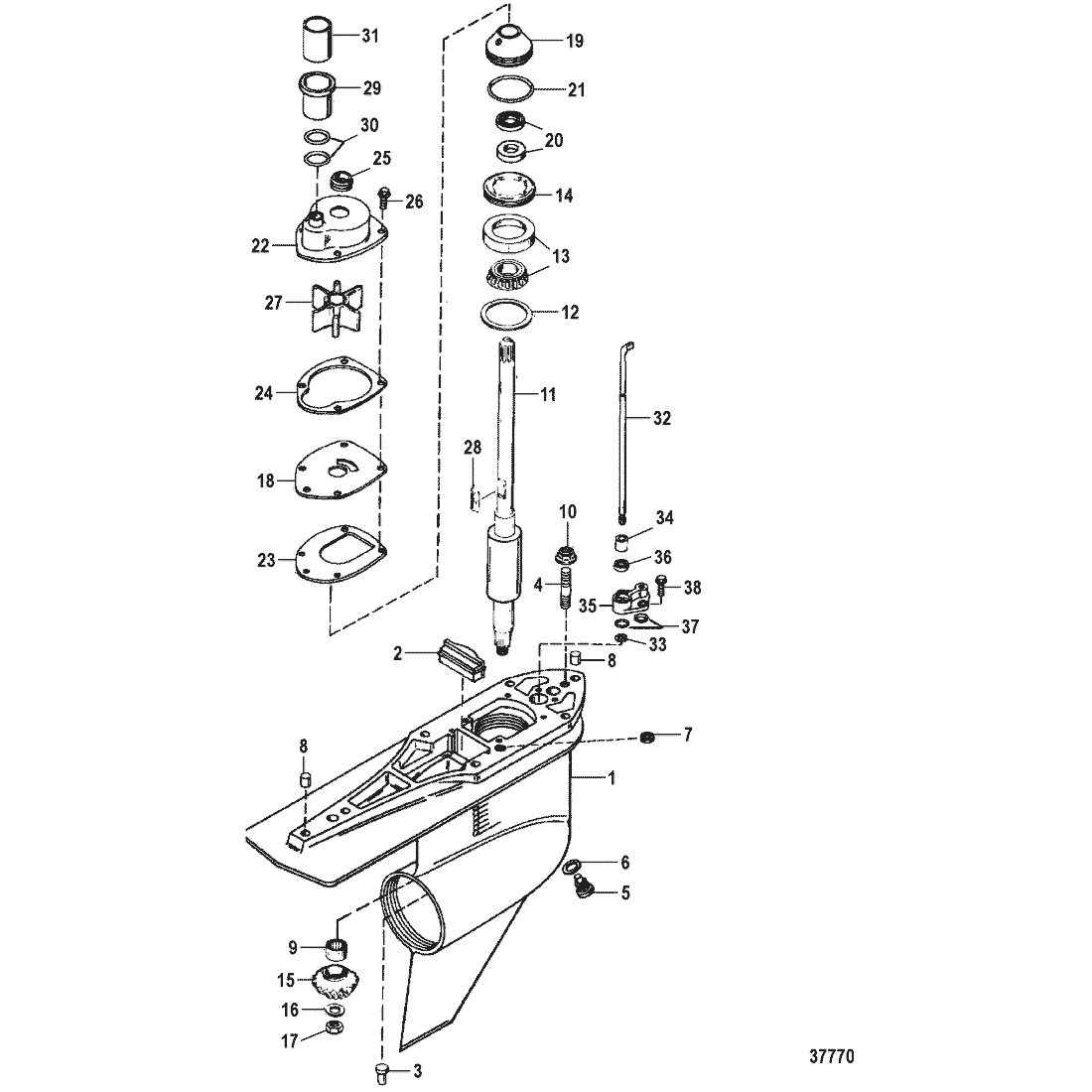

| - | 815822A47 | GEAR HOUSING ASSEMBLY | 815822A33 | SS |
|
$3,164.29 | $2,942.99 | 1 | |
| 1 | 815822A36 | --GEAR HOUSING ASSEMBLY | ACT |
|
$1,942.99 | $1,740.06 | 1 | ||
| 2 | 821526001 | ----FILLER BLOCK | 821526 | SS |
|
$18.99 | $18.53 | 1 | |
| 3 | 379721 | ----PIN | ACT | $3.59 | $3.50 | 1 | |||
| 4 | 57984 | ----STUD, (.437-14/.437-20 x 2.380) | ACT | $19.49 | $19.07 | 1 | |||
| 5 | 8M0058389 | ----FITTING KIT, Magnetic, Plug Fill/Drain | 67892A1 | SS |
|
$11.69 | $11.41 | 1 | |
| 6 | 191833 | ------WASHER, Fiber | 19183 | SS |
|
$1.45 | $1.42 | 1 | |
| 7 | 8M0204680 | ----SEAL | 45577 | SS |
|
$4.29 | $4.20 | 1 | |
| 8 | 43044 | ----PIN, Dowel - Without Hole (.375 x .625) | ACT | $2.49 | $2.43 | 2 | |||
| 9 | 42647A1 | ----BEARING ASSEMBLY, Roller | ACT | $65.99 | $62.16 | 1 | |||
| 10 | 859135 | ----NUT, (.437-20) | 817618 | SS |
|
$6.09 | $5.95 | 1 | |
| 11 | 816919 | --DRIVESHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 8M0140442 | --DRIVESHAFT | 816472 | SS |
|
$791.99 | $721.21 | 1 | |
| 12 | 8M0063267 | --SHIM SET | 42637A1 | NLA |
|
$27.79 | $27.25 | AR | |
| 13 | 8M0146566 | --BEARING, Roller | 36387A1 | SS |
|
$74.99 | $70.48 | 1 | |
| 14 | 8245191 | --RETAINER | 824519 | SS |
|
$6.99 | $6.83 | 1 | |
| 15 | 828289A1 | --GEAR SET | ACT |
|
$772.49 | $703.52 | 1 | ||
| 16 | 92721 | --WASHER | ACT | $1.50 | $1.47 | 1 | |||
| 17 | 35921 | --NUT, (.625-18) | ACT | $7.99 | $7.81 | 1 | |||
| 18 | 8M0204709 | --FACEPLATE | 817276 | SS |
|
$14.59 | $14.24 | 1 | |
| 19 | 8M0214948 | --CARRIER ASSEMBLY | 821759A4 | SS |
|
$47.99 | $47.16 | 1 | |
| 20 | 8M0214939 | ----SEAL, Oil | 66302 | SS |
|
$16.99 | $16.62 | 2 | |
| 20 | 864319 | ----SEAL, Oil | ACT |
|
$9.99 | $9.76 | 1 | ||
| 21 | 8M0142854 | ----O-RING, (2.175 x .175) | 90011 | SS |
|
$1.10 | $1.08 | 1 | |
| 22 | 817275A1 | --PUMP ASSEMBLY, Water | ACT |
|
$102.99 | $92.48 | 1 | ||
| 23 | 430331 | ----GASKET | ACT | $11.09 | $10.83 | 1 | |||
| 24 | 8172771 | ----GASKET | 817277 | SS |
|
$5.69 | $5.56 | 1 | |
| 25 | 816575A2 | ----SEAL KIT | ACT | $10.89 | $10.63 | 1 | |||
| 26 | 816928 | --SCREW, (M6 x 16) | ACT | $2.39 | $2.33 | 4 | |||
| 27 | 43026T2 | --IMPELLER | 430262 | SS |
|
$36.49 | $35.81 | 1 | |
| 28 | 8M0204723 | --KEY | 43037 | SS |
|
$4.39 | $4.30 | 1 | |
| 29 | 816597A1 | --COUPLING ASSEMBLY | ACT |
|
$19.49 | $19.15 | 1 | ||
| 30 | 8M0204645 | ----O-RING, (.796 x .139) | 21836 | SS |
|
$2.39 | $2.33 | 2 | |
| 31 | 816583 | --SLEEVE | ACT | $11.09 | $10.83 | 1 | |||
| 32 | 8M0127949 | --SHIFT SHAFT, Lower | 815919A1 | SS |
|
$93.49 | $87.82 | 1 | |
| 33 | 29641 | ----E RING | ACT | $1.80 | $1.76 | 1 | |||
| 34 | 67370 | --SLEEVE (1/4 IN. THICK) | ACT | $11.29 | $11.02 | 1 | |||
| 34 | 77674 | --WASHER (1/8 IN. THICK) | ACT | $1.80 | $1.76 | 1 | |||
| 35 | 815921A21 | --BUSHING ASSEMBLY | 815921A10 | SS |
|
$41.49 | $40.75 | 1 | |
| 36 | 892361 | ----SEAL, Oil | 89236 | SS |
|
$17.69 | $17.26 | 1 | |
| 37 | 8M0214927 | ----O-RING, (.799) | 36318 | SS |
|
$1.70 | $1.66 | 2 | |
| 38 | 816928 | --SCREW, (M6 x 16) | ACT | $2.39 | $2.33 | 2 | |||
| - | 817275Q05 | REBUILD KIT, Water Pump | 817275A4 | SS |
|
$198.49 | $178.88 | - | |
| - | 816575A3 | SEAL KIT, Gear Housing | ACT | $112.49 | $101.20 | - |
