Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

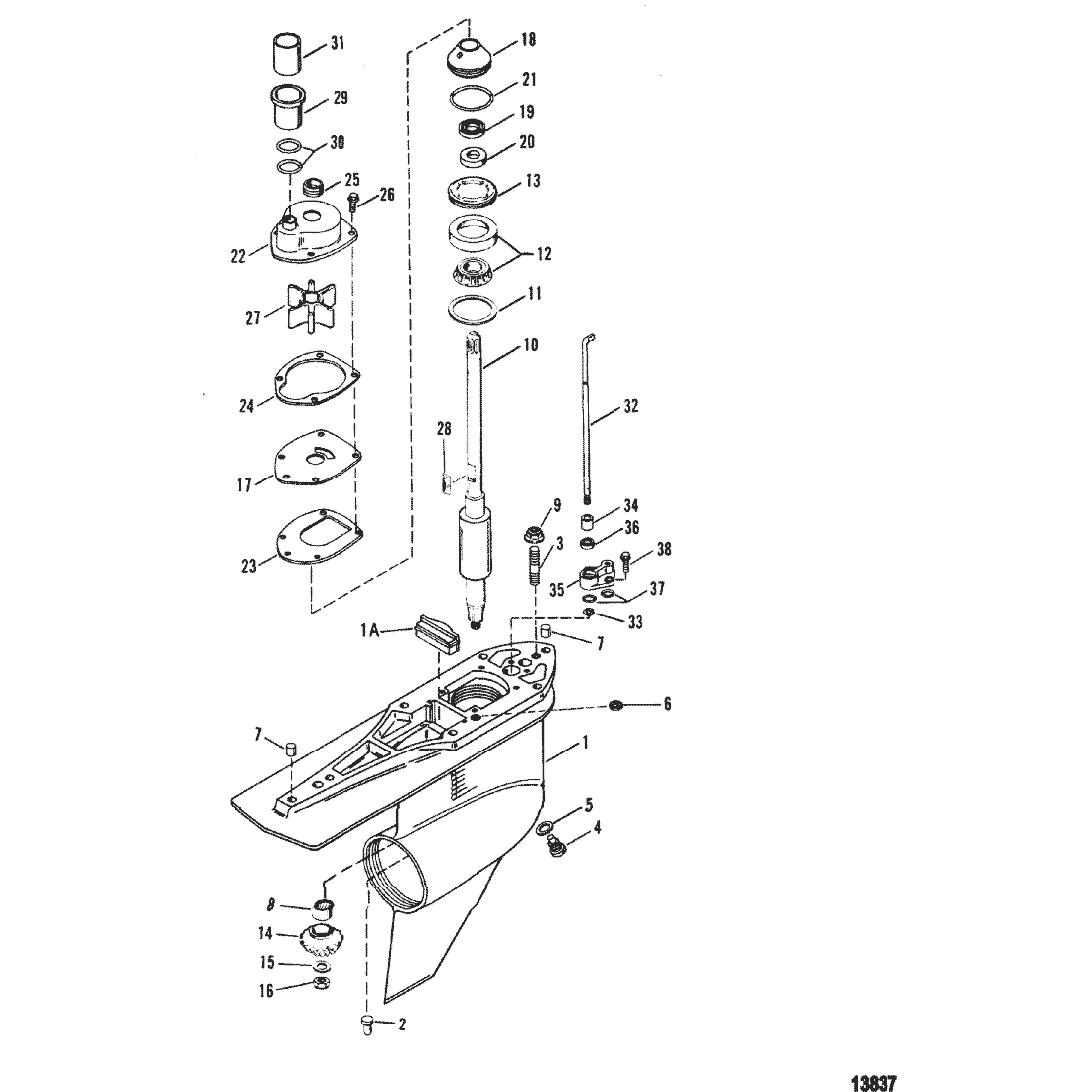

- 815822A53 GEAR HOUSING ASSEMBLY, Complete 815822A5 SS $3,164.29 $2,942.99 1
1 815822A30 --GEAR HOUSING ASSEMBLY ACT $1,799.99 $1,612.11 1
1A 821526001 ----FILLER BLOCK 821526 SS $18.99 $18.53 1
2 379721 ----PIN ACT $3.59 $3.50 1
3 57984 ----STUD, (.437-14/.437-20 x 2.380) ACT $19.49 $19.07 1
4 8M0058389 ----SCREW 14834A1 SS $11.69 $11.41 1
5 191833 ----WASHER, Fiber 19183 SS $1.45 $1.42 1
5 8M0204684 O-RING, Rubber 805726 SS $2.49 $2.43 1
6 8M0204680 ----SEAL 45577 SS $4.29 $4.20 1
7 43044 ----PIN, Dowel - Without Hole (.375 x .625) ACT $2.49 $2.43 2
8 42647A1 ----BEARING ASSEMBLY, Roller ACT $65.99 $62.16 1
9 859135 ----NUT, (.437-20) 817618 SS $6.09 $5.95 1
10 816919 --DRIVESHAFT NLA $0.00 $0.00 1
10 8M0140442 --DRIVESHAFT 816472 SS $791.99 $721.21 1
11 8M0063267 --SHIM SET 42637A1 NLA $27.79 $27.25 AR
12 8M0146566 --BEARING ASSEMBLY, Roller/Cup 36387A1 SS $74.99 $70.48 1
13 8245191 --RETAINER 824519 SS $6.99 $6.83 1
14 878087A4 --GEAR SET, Standard (17/28 Teeth) 17064A3 SS $915.49 $833.36 1
14 13730A1 GEAR SET (2.40 Ratio) (14/28 Teeth) NLA $0.00 $0.00 1
15 92721 --WASHER ACT $1.50 $1.47 1
16 35921 --NUT, (.625-18) ACT $7.99 $7.81 1
17 8M0204709 --FACEPLATE 817276 SS $14.59 $14.24 1
18 8M0214948 --CARRIER ASSEMBLY 821759A2 SS $47.99 $47.16 1
19 16977 ----SEAL, Oil ACT $18.69 $18.33 1
20 89238 ----SEAL, Oil ACT $21.19 $20.79 1
21 8M0142854 ----O-RING, (2.175 x .175) 90011 SS $1.10 $1.08 1
22 817275A1 --HOUSING KIT, Water Pump ACT $102.99 $92.48 1
23 430331 ----GASKET ACT $11.09 $10.83 1
24 8172771 ----GASKET 817277 SS $5.69 $5.56 1
25 816575A2 ----SEAL KIT ACT $10.89 $10.63 1
26 816928 --SCREW, (M6 x 16) ACT $2.39 $2.33 4
27 43026T2 --IMPELLER 430262 SS $36.49 $35.81 1
28 8M0204723 --KEY 43037 SS $4.39 $4.30 1
29 816597A1 --COUPLING ASSEMBLY ACT $19.49 $19.15 1
30 8M0204645 ----O-RING, (.796 x .139) 21836 SS $2.39 $2.33 2
31 816583 --SLEEVE ACT $11.09 $10.83 1
32 8M0127949 --SHIFT SHAFT, Lower 815919A1 SS $93.49 $87.82 1
33 29641 ----E RING ACT $1.80 $1.76 1
34 67370 --SLEEVE ACT $11.29 $11.02 1
35 815921A21 --BUSHING ASSEMBLY 815921A8 SS $41.49 $40.75 1
36 8M0204708 ----SEAL, Oil 8164641 SS $16.99 $16.58 1
37 8M0214927 ----O-RING, (.799) 36318 SS $1.70 $1.66 2
38 816928 --SCREW, (M6 x 16) ACT $2.39 $2.33 2
- 817275Q05 REBUILD KIT, Water Pump 817275A4 SS $198.49 $178.88 1
- 816575A3 SEAL KIT, Gear Housing ACT $112.49 $101.20 1
