| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

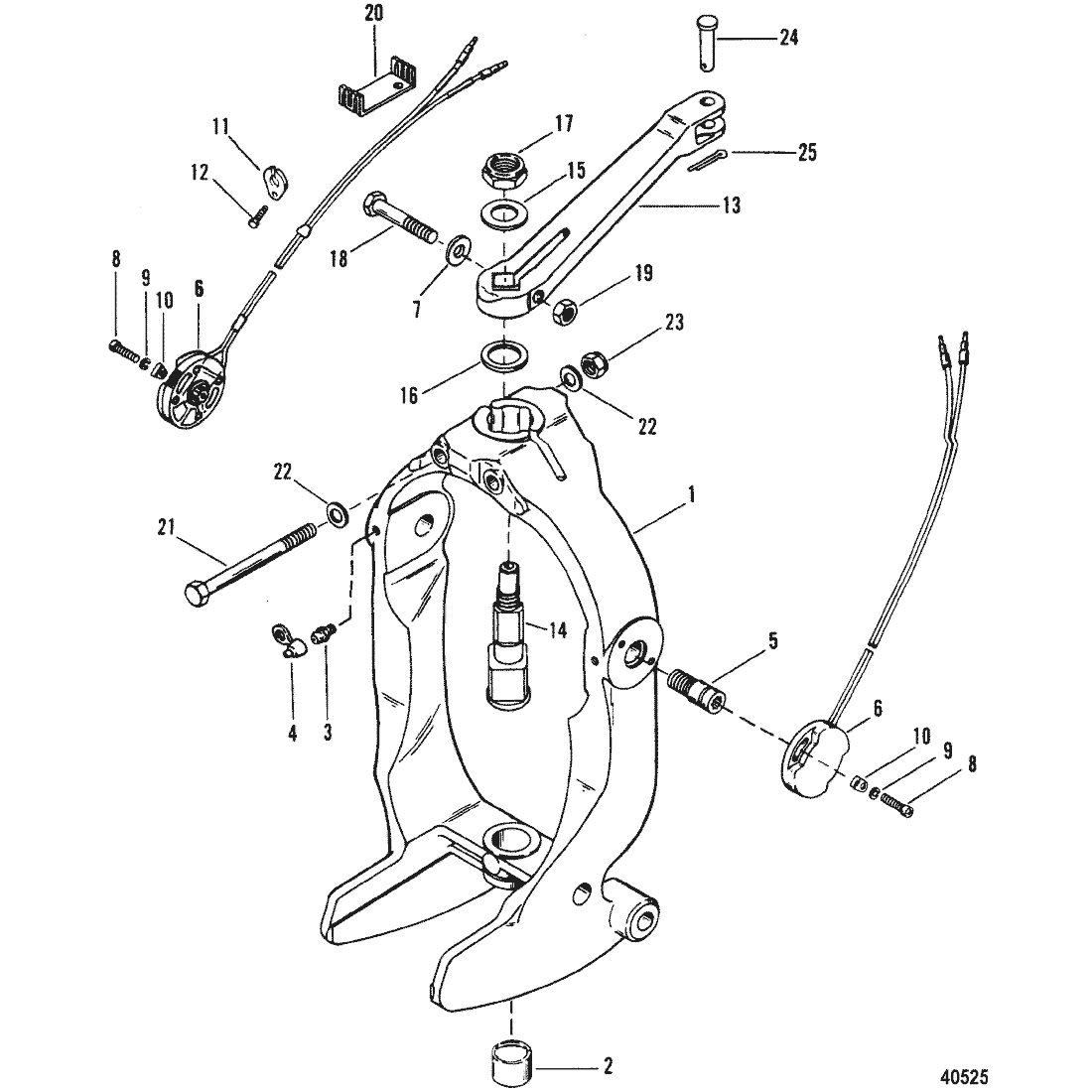

| `X21 | 865328A01 | GIMBAL RING ASSEMBLY | 816461A2 | SS/ACT |
 |
$965.07 | $907.94 | 1 | |
| 2 | 23-847638 | --BEARING | 99352 | SS/ACT |
|
$51.42 | $49.46 | 1 | |
| 3 | 22-8M0169589 | --FITTING, Grease (.250-28) | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 4 | 19-77633Q | --LUBRICAP | 77633 | SS/ACT |
|
$6.70 | $6.54 | 2 | |
| 5 | 77123 | PIN, Hinge | ACT | $31.08 | $30.53 | 2 | |||
| 6 | 805320A03 | SWITCH ASSEMBLY | 805320A1 | SS/ACT |
|
$164.92 | $155.31 | 1 | |
| 7 | 12-861854 | WASHER | 91964 | SS/ACT |
|
$4.00 | $3.91 | 1 | |
| 8 | 10-37978 | SCREW, (#10-32 x .750) Stainless Steel | ACT | $3.30 | $3.22 | 4 | |||
| 9 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 4 | |||
| 10 | 57008 | RETAINER | ACT | $3.80 | $3.71 | 4 | |||
| 11 | 54-12078 | CLAMP | ACT | $13.10 | $12.78 | 1 | |||
| 12 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 13 | 866322A01 | LEVER ASSEMBLY | 98262A1 | SS/ACT |
|
$301.83 | $284.24 | 1 | |
| 14 | 98230A1 | SHAFT ASSEMBLY | ACT | $379.93 | $363.16 | 1 | |||
| 15 | 12-85344 | WASHER, (.750 Inside Diameter) | ACT | $2.70 | $2.64 | 1 | |||
| 16 | 12-98548 | WASHER, (1.125 ) | ACT | $6.70 | $6.54 | 1 | |||
| 17 | 11-8M2014641 | NUT, (.750-16) | 25599 | SS/ACT |
|
$15.50 | $15.12 | 1 | |
| 18 | 10-807204 | SCREW, (.437-20 x 2.00) | 32995 | SS/ACT |
|
$4.30 | $4.20 | 1 | |
| 19 | 11-8M2008293 | NUT, (.437-20) | 98533 | SS/ACT |
|
$1.20 | $1.18 | 1 | |
| 20 | 79146 | RETAINER | ACT | $5.40 | $5.27 | 1 | |||
| 21 | 10-90126 | SCREW, (.375-24 x 3.750) | ACT | $6.50 | $6.34 | 2 | |||
| 22 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | ACT | $2.50 | $2.44 | 4 | |||
| 23 | 11-862903 | NUT, (.375-24) | 134371 | SS/ACT |
|
$3.50 | $3.42 | 2 | |
| 24 | 17-52798 | PIN, Clevis | ACT |
|
$7.20 | $7.03 | 1 | ||
| 25 | 18-46950 | COTTER PIN | ACT |
|
$4.00 | $3.91 | 1 |
