| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

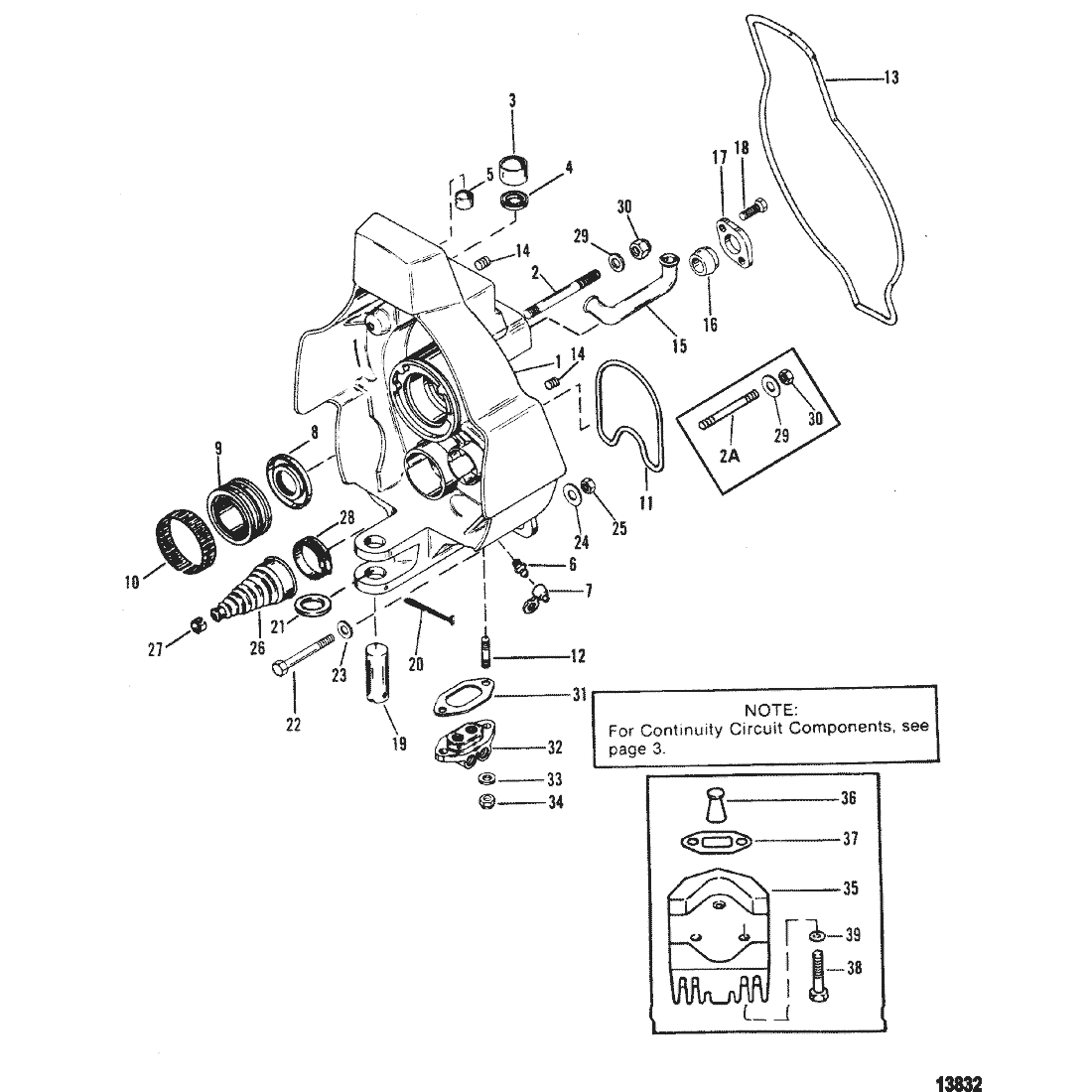

| 1 | 8M0062568 | GIMBAL HOUSING ASSEMBLY | 43881A11 | SS |
|
$2,804.99 | $2,512.24 | 1 | |
| 2A | 866563 | --STUD, (.437-20 x 4.250), New Design | 818834 | NLA |
|
$12.59 | $12.29 | 2 | |
| 3 | 983571 | --BUSHING, Lower | ACT | $25.49 | $24.96 | 1 | |||
| 4 | 8M2005029 | --SEAL, Oil | 416071 | NLA |
|
$24.99 | $24.47 | 1 | |
| 5 | 98356 | --BUSHING, Upper | ACT | $17.79 | $17.43 | 1 | |||
| 6 | 8M0169589 | --FITTING, Grease | 74036 | SS |
|
$4.79 | $4.69 | 1 | |
| 6 | 8M0204738 | --PLUG, (.250-28 x .320) | 8M2015913 | SS |
|
$6.89 | $6.73 | 1 | |
| 7 | 77633Q | --LUBRICAP | 77633 | SS |
|
$6.99 | $6.83 | 1 | |
| 8 | 88416 | --SEAL, Oil | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 879194A02 | --BEARING ASSEMBLY | 60794A4 | SS |
|
$138.99 | $124.94 | 1 | |
| 10 | 61075 | ----TOLERANCE RING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 41802 | --SEAL, Rubber, Exhaust Pipe | ACT | $15.99 | $15.61 | 1 | |||
| 12 | 56766 | --STUD, (.250-20/.250-28 x 1.380) | ACT | $3.69 | $3.59 | 2 | |||
| 13 | 43713 | --SEAL | ACT | $17.39 | $16.97 | 1 | |||
| 14 | 8M0180564 | --PLUG, (.250-18) | 73379 | SS |
|
$7.59 | $7.42 | 1 | |
| 15 | 8M0171319 | TUBE, Water | 416721 | SS |
|
$34.49 | $33.83 | 1 | |
| 16 | 8165991 | BUSHING | 816599 | SS |
|
$9.29 | $9.07 | 1 | |
| 17 | 8M0092452 | COVER | 41673 | SS |
|
$9.89 | $9.66 | 1 | |
| 18 | 28636 | SCREW, (.250-20 x .750) | ACT | $1.80 | $1.76 | 2 | |||
| 19 | 8M0073409 | SWIVEL PIN, Lower | 99353 | SS |
|
$59.99 | $56.35 | 1 | |
| 20 | 54929 | COTTER PIN | ACT | $7.89 | $7.71 | 1 | |||
| 21 | 32518 | WASHER | ACT | $3.79 | $3.69 | 1 | |||
| 22 | 43691 | BOLT, (.500-13 x 4.00) | ACT |
|
$17.49 | $17.07 | 2 | ||
| 23 | 32620 | WASHER | ACT |
|
$1.50 | $1.47 | 2 | ||
| 24 | 21900 | WASHER | ACT |
|
$3.39 | $3.30 | 2 | ||
| 25 | 34087 | NUT | ACT |
|
$8.29 | $8.10 | 2 | ||
| 26 | 74639A2 | BELLOWS ASSEMBLY | ACT |
|
$34.99 | $34.29 | 1 | ||
| 27 | 8M0204733 | --CLAMP | 38863 | SS |
|
$7.49 | $7.32 | 1 | |
| 28 | 8M0204716 | --CLAMP, Worm Gear | 815504320 | SS |
|
$11.49 | $11.22 | 1 | |
| 29 | 34567 | WASHER | ACT | $1.50 | $1.47 | 6 Or 8 | |||
| 30 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS |
|
$5.29 | $5.17 | 6 Or 8 | |
| 31 | 988231 | GASKET | ACT | $3.19 | $3.11 | 1 | |||
| 32 | 8M0137703 | MANIFOLD ASSEMBLY | 98825A4 | SS |
|
$129.99 | $117.12 | 1 | |
| 33 | 78968 | LOCKWASHER, Internal (.250) | ACT | $1.80 | $1.76 | 2 | |||
| 34 | 8267119 | NUT, (.250-28) | 13438 | SS |
|
$2.59 | $2.53 | 2 | |
| 35 | 821631Q1 | ANODE ASSEMBLY | 821631A1 | SS |
|
$32.89 | $32.24 | 1 | |
| 36 | 12077 | --SEAL | ACT | $1.70 | $1.66 | 1 | |||
| 37 | 995061 | --GASKET | ACT | $2.49 | $2.43 | 1 | |||
| 38 | 86885 | SCREW, (.250-20 x 1.500) Stainless Steel | ACT | $3.19 | $3.11 | 2 | |||
| 39 | 78968 | LOCKWASHER, Internal (.250) | ACT | $1.80 | $1.76 | 2 | |||
| - | 88847A1 | PLUG KIT, Access Hole | ACT |
|
$36.49 | $35.68 | 1 |
