- Do Not Substitute O-Rings As These Are Of Special Manufactured Materal.

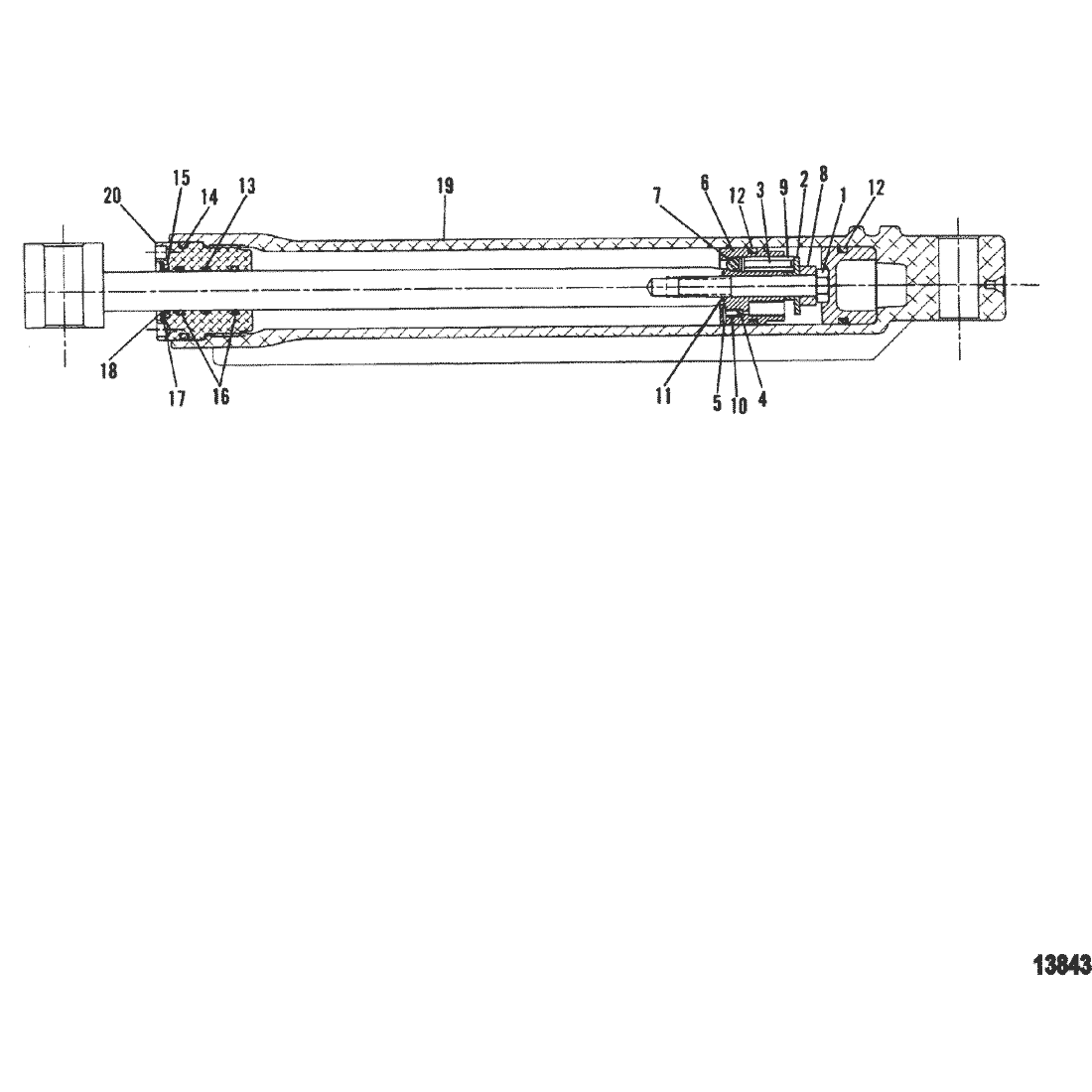

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| - | 87399A3 | OVERHAUL KIT | ACT |
 |
$317.25 | $298.76 | 1 | ||
| 1 | NSS | --NOT SOLD SEPARATE, Screw |
|
$0.00 | $0.00 | 1 | |||
| 2 | NSS | --NOT SOLD SEPARATE, Spring Seat |
|
$0.00 | $0.00 | 1 | |||
| 3 | NSS | --NOT SOLD SEPARATE, Valve Seat |
|
$0.00 | $0.00 | 3 | |||
| 4 | NSS | --NOT SOLD SEPARATE, Steel Ball (.109 Diameter) |
|
$0.00 | $0.00 | 1 | |||
| 5 | NSS | --NOT SOLD SEPARATE, Spring Pin |
|
$0.00 | $0.00 | 1 | |||
| 6 | NSS | --NOT SOLD SEPARATE, Shock Piston |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | --NOT SOLD SEPARATE, Steel Ball (.250 Diameter) |
|
$0.00 | $0.00 | 3 | |||
| 8 | NSS | --NOT SOLD SEPARATE, Spacer |
|
$0.00 | $0.00 | 1 | |||
| 9 | NSS | --NOT SOLD SEPARATE, Compression Spring |
|
$0.00 | $0.00 | 3 | |||
| 10 | NSS | --NOT SOLD SEPARATE, Spring |
|
$0.00 | $0.00 | 1 | |||
| - | 25-87400A2 | --SEAL KIT | ACT |
|
$38.25 | $37.56 | 1 | ||
| 11 | NSS | ----NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 1 | |||
| 12 | NSS | ----NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 2 | |||
| 13 | NSS | ----NOT SOLD SEPARATE, Spring |
|
$0.00 | $0.00 | 2 | |||
| 14 | NSS | ----NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 1 | |||
| 15 | NSS | ----NOT SOLD SEPARATE, Scraper Rod |
|
$0.00 | $0.00 | 1 | |||
| 16 | NSS | ----NOT SOLD SEPARATE, O-Ring |
|
$0.00 | $0.00 | 2 | |||
| 17 | NSS | ----NOT SOLD SEPARATE, Washer |
|
$0.00 | $0.00 | 1 | |||
| 18 | NSS | ----NOT SOLD SEPARATE, Retaining Ring |
|
$0.00 | $0.00 | 1 | |||
| 18 | 815935T | TUBE, Port Cylinder | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 815954T | TUBE, Starboard Cylinder | SS |
|
$0.00 | $0.00 | 1 | ||
| 20 | 8M0118340 | CAP, Rod End | 806191T | SS/ACT |
|
$138.50 | $130.43 | 2 |
