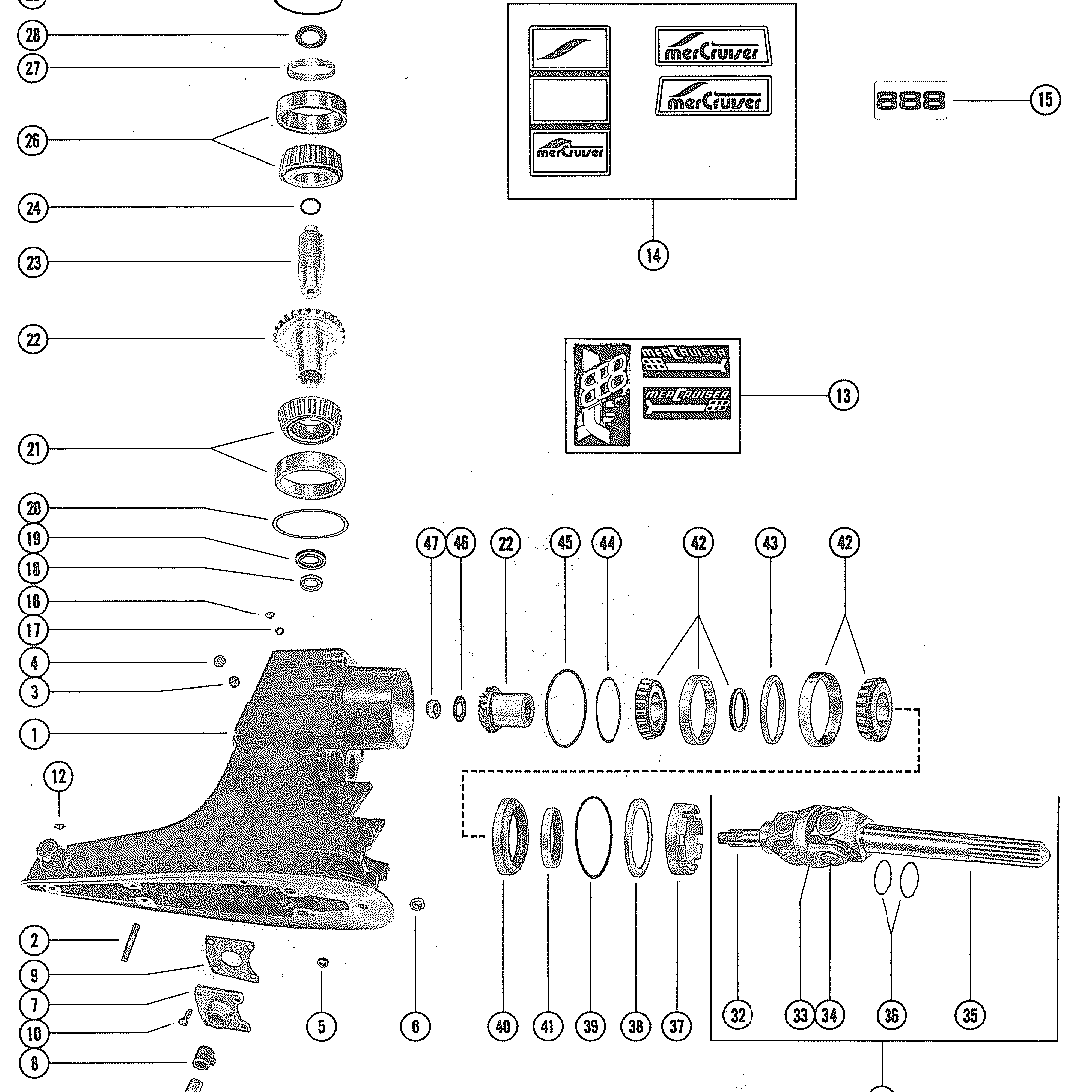

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1547-9412A18 | DRIVE SHAFT HOUSING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 16-56295 | ,STUD,DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16") | ACT |
|
$11.90 | $11.61 | 2 | ||
| 3 | 22-31704 | --PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET) | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 19-32652 | --WELCH PLUG, DRIVE SHAFT HOUSING | ACT | $11.30 | $11.02 | 1 | |||
| 5 | 23-32632 | --BUSHING, DRIVE SHAFT HOUSING | ACT | $33.08 | $32.49 | 1 | |||
| 6 | 11-8M0204653 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD | 34933 | SS/ACT |
|
$5.10 | $4.98 | 3 | |
| 7 | 42724A3 | COVER ASSEMBLY, WATER POCKET COVER | 54235A2 | SS/ACT |
|
$48.50 | $47.63 | 1 | |
| 8 | 26-36557 | --SEAL, RUBBER - WATER POCKET COVER | ACT | $4.30 | $4.20 | 1 | |||
| 9 | 27-558101 | --GASKET, WATER POCKET COVER | 55810 | SS/ACT |
|
$3.10 | $3.03 | 1 | |
| 10 | 10-28668 | --SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8") | ACT | $1.60 | $1.57 | 4 | |||
| 11 | 32-54236 | --TUBE, WATER - WATER POCKET COVER | ACT | $17.20 | $16.78 | 1 | |||
| 12 | 19-32298 | PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 37-70658A1 | DECAL SET, DRIVE SHAFT HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 13 | 37-70658A1 | DECAL SET, DRIVE SHAFT HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 13 | 37-70658A1 | DECAL SET, DRIVE SHAFT HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 37-76731A1 | DECAL SET, DRIVE SHAFT HOUSING | ACT |
|
$90.42 | $86.97 | 1 | ||
| 15 | 37-76752 | DECAL, DRIVE SHAFT HOUSING "888" | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 10-79953Q04 | SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE | 28634 | SS/ACT |
|
$7.20 | $7.03 | 1 | |
| 17 | 12-191833 | WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE | 20260 | SS/ACT |
|
$1.40 | $1.37 | 1 | |
| 18 | 26-965031 | OIL SEAL, DRIVE SHAFT HOUSING - LOWER | 37259 | SS/ACT |
|
$21.22 | $20.75 | 1 | |
| 19 | 26-32511 | OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING | ACT | $23.17 | $22.75 | 1 | |||
| 20 | 15-36178A02 | SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-10-15 | 36178A1 | SS/ACT |
|
$17.30 | $16.87 | AR | |
| 21 | 31-35990A1 | TAPERED ROLLER BEARING ASSSENBLY, PINION GEAR | ACT | $54.25 | $52.18 | 1 | |||
| 22 | 43-18411A2 | GEAR ASSEMBLY, COMPLETE (20-22 GEAR RATIO) | 59832A2 | SS/ACT |
|
$622.79 | $585.92 | 1 | |
| 23 | 45-55796 | DRIVE SHAFT, UPPER | ACT | $161.58 | $152.17 | 1 | |||
| 24 | 25-55801 | "O" RING, UPPER DRIVE SHAFT | ACT | $1.90 | $1.86 | 1 | |||
| 25 | 76098A1 | COVER, TOP - DRIVE SHAFT HOUSING | 55758 | SS/ACT |
|
$128.75 | $120.91 | 1 | |
| 26 | 31-32575T1 | BEARING ASSEMBLY, DRIVE SHAFT | 32575A1 | SS/ACT |
|
$34.50 | $33.88 | 1 | |
| 27 | 23-55798 | SPACER,UPPER DRIVE SHAFT | ACT |
|
$14.76 | $14.40 | 1 | ||
| 28 | 24-55797 | SPRING, UPPER DRIVE SHAFT (TOP COVER) | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 76098A1 | COVER ASSEMBLY, TOP - DRIVE SHAFT | 61102A1 | SS/ACT |
|
$128.75 | $120.91 | 1 | |
| 26 | 31-61100A1 | --BEARING ASSEMBLY, DRIVE SHAFT | ACT |
|
$88.50 | $85.12 | 1 | ||
| 28 | 24-55797 | --SPRING, UPPER DRIVE SHAFT (TOP COVER) | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 76098A1 | COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING | 62266A1 | SS/ACT |
|
$128.75 | $120.91 | 1 | |
| 26 | 31-61100A1 | --BEARING ASSEMBLY, DRIVE SHAFT | ACT |
|
$88.50 | $85.12 | 1 | ||
| 28 | 15-45691A1 | --SHIM, BEARING CUP TO TOP COVER | ACT |
|
$13.90 | $13.56 | AR | ||
| 25 | 76098A1 | COVER ASSEMNLY, TOP - DRIVE SHAFT HOUSING | ACT |
|
$128.75 | $120.91 | 1 | ||
| 26 | 31-61100A1 | --BEARING ASSEMNLY, DRIVE SHAFT | ACT |
|
$88.50 | $85.12 | 1 | ||
| 28 | 15-45691A1 | --SHIM, BEARING CUP TO TOP COVER | ACT |
|
$13.90 | $13.56 | AR | ||
| 29 | 25-32546 | "O" RING, TOP COVER SEALING | ACT | $3.90 | $3.81 | 1 | |||
| 30 | 10-8M0113174 | SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4") | ACT | $7.00 | $6.83 | 4 | |||
| 31 | 814819A2 | UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR | 59829A1 | SS/ACT |
|
$822.29 | $773.61 | 1 | |
| 32 | 46020T02 | --YOKE, UNIVERSAL JOINT - GEAR END | 46020 | SS/ACT |
|
$210.50 | $198.23 | 1 | |
| 33 | 393831 | --SOCKET, CENTER - UNIVERSAL JOINT | ACT | $149.67 | $140.95 | 1 | |||
| 34 | 75832T1 | --CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT | 58749 | SS/ACT |
|
$94.58 | $90.98 | 2 | |
| 35 | 59830A7 | --YOKE ASSEMNLY, UNIVERSAL JOINT - COUPLING END | 59830A1 | SS/ACT |
|
$333.33 | $313.91 | 1 | |
| 36 | 25-25439 | ----"O" RING, UNIVERSAL JOINT | ACT | $1.90 | $1.86 | 2 | |||
| 37 | 8M0169040 | RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT | 66071 | SS/ACT |
|
$40.08 | $39.36 | 1 | |
| 38 | 35983 | RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER | ACT | $19.20 | $18.73 | 1 | |||
| 39 | 25-70937 | "O" RING, OIL SEAL CARRIE | ACT | $5.30 | $5.17 | 1 | |||
| 40 | 8M0171103 | CARRIER ASSEMBLY, OIL SEAL | 35993A1 | SS/ACT |
|
$69.75 | $67.09 | 1 | |
| 40 | 8M0171103 | CARRIER ASSEMNLY, OIL SEAL | 66081A2 | SS/ACT |
|
$69.75 | $67.09 | 1 | |
| 41 | 26-823894 | --OIL SEAL, CARRIER | 68493 | SS/ACT |
|
$28.75 | $28.23 | 1 | |
| 42 | 31-35988A12 | TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR | 35988A2 | SS/ACT |
|
$430.42 | $405.33 | 1 | |
| 43 | 23-35985 | --SPACER, DRIVE GEAR ROLLER BEARING CUPS | ACT | $20.49 | $19.96 | 1 | |||
| 44 | 15-35980A1 | SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-15 | ACT | $19.10 | $18.63 | AR | |||
| 45 | 15-8M0124132 | SHIM, BEARING CUP TO DRIVE SHAFT HOUSING | ACT | $5.50 | $5.37 | 1 | |||
| 46 | 12-45810 | WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT | ACT | $6.40 | $6.25 | 1 | |||
| 47 | 11-8M0214915 | NUT, DRIVE GEAR TO UNIVERSAL JOINT | 22339 | SS/ACT |
|
$8.10 | $7.90 | 1 |
