| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

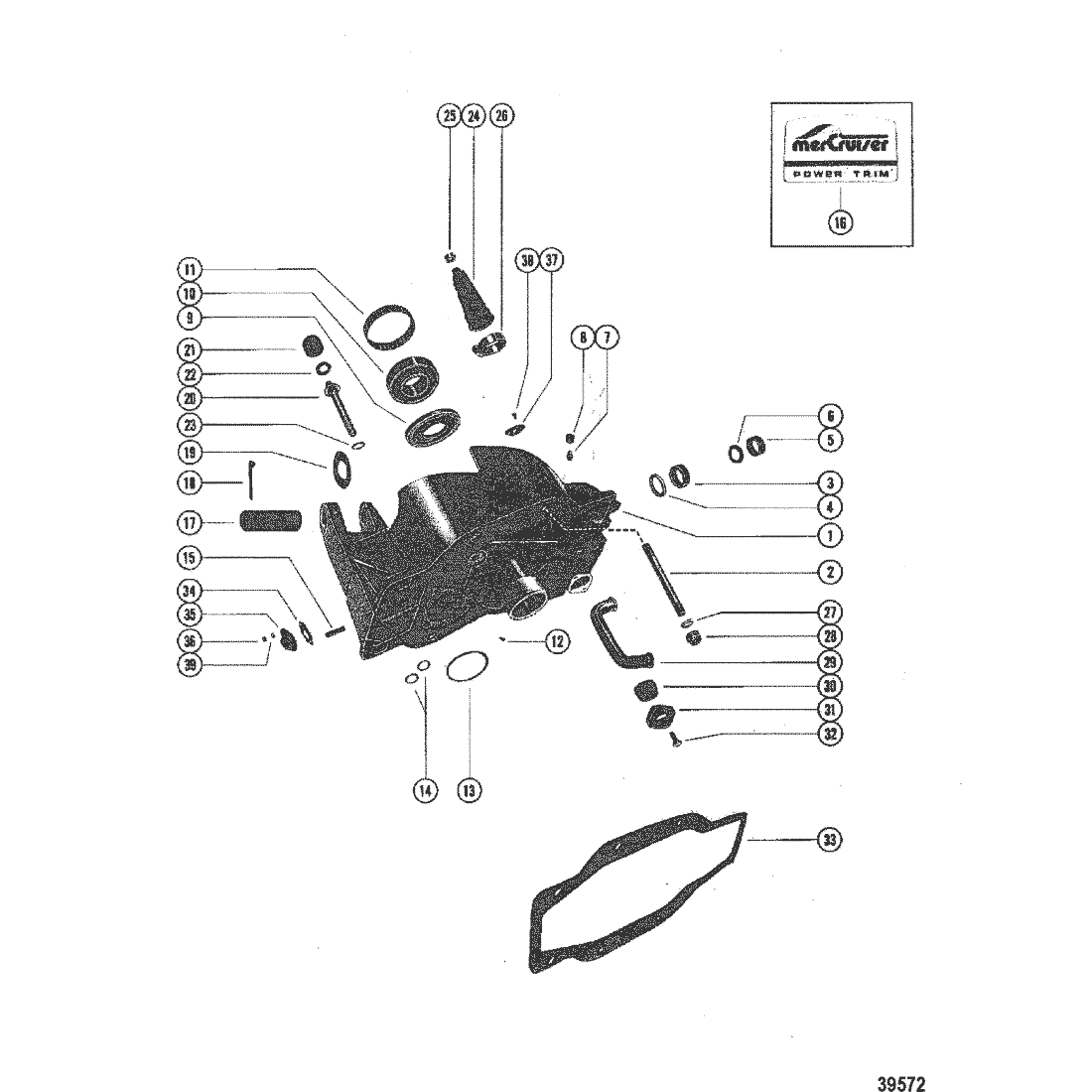

| 1 | 70861A1 | GIMBAL HOUSING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 1 | 70862A1 | GIMBAL HOUSING ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 16-56296 | --STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE | SS |
|
$0.00 | $0.00 | 2 | ||
| 3 | 31-32536 | --BEARING, ROLLER - GIMBAL HOUSING (LOWER) | ACT | $5.98 | $5.84 | 1 | |||
| 4 | 26-32911 | --SEAL, Oil, LOWER GIMBAL HOUSING ROLLER BEARING | ACT | $15.00 | $14.63 | 2 | |||
| 5 | 31-21145 | --BEARING, Roller, GIMBAL HOUSING (UPPER) | ACT | $19.90 | $19.41 | 1 | |||
| 6 | 26-54925 | --SEAL, Oil, UPPER GIMBAL HOUSING BEARING | 97321 | SS/ACT |
|
$23.79 | $23.15 | 1 | |
| 7 | 22-8M0169589 | --FITTING, Grease, GIMBAL HOUSING (STAINLESS STEEL) | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 7 | 10-8M0204738 | --PLUG, (.250-28 x .320) | 8M2015913 | SS/ACT |
|
$6.60 | $6.44 | 2 | |
| 8 | 77633Q | --LUBRICAP, GIMBAL HOUSING GREASE FITTING | 29359 | SS/ACT |
|
$6.70 | $6.54 | 2 | |
| 9 | 26-88416 | --SEAL, Oil, GREASE - GIMBAL HOUSING | ACT | $28.33 | $27.83 | 1 | |||
| 10 | 30-879194A02 | --BEARING ASSEMBLY, BALL -GIMBAL HOUSING | 60794A4 | SS/ACT |
|
$133.25 | $125.49 | 1 | |
| 11 | 61075 | ----TOLERANCE RING, GIMBAL HOUSING BEARING | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 10-69707 | --SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE | ACT | $1.00 | $0.98 | 4 | |||
| 13 | 25-20863 | --O-RING, GIMBAL HOUSING | ACT | $4.40 | $4.30 | 1 | |||
| 14 | 25-23145 | --O-RING, (.984 x .139), GIMBAL HOUSING | ACT |
|
$1.90 | $1.86 | 2 | ||
| 15 | 16-56766 | --STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING | ACT | $3.60 | $3.52 | 2 | |||
| 16 | 37-87018 | --DECAL, GIMBAL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 17-45212 | PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER) | ACT | $78.00 | $75.03 | 1 | |||
| 18 | 18-54929 | COTTER PIN, RETAINING - LOWER SWIVEL PIN | 34212 | SS/ACT |
|
$7.60 | $7.42 | 1 | |
| 19 | 12-32518 | WASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN | ACT | $3.70 | $3.61 | 1 | |||
| 20 | 8M0030655 | BOLT ASSEMBLY, Anodic, GIMBAL HOUSING TO TRANSOM PLATE | 55989A1 | SS/ACT |
|
$69.42 | $66.77 | 2 | |
| 21 | 55989Q9 | --ANODE, BOLT ASSEMBLY | 55989 | SS/ACT |
|
$20.86 | $20.42 | 2 | |
| 22 | 12-56085 | --WASHER, ANODIC BOLT ASSEMBLY | ACT | $1.20 | $1.18 | 2 | |||
| 23 | 12-32620 | WASHER, GIMBAL HOUSING BOLT | ACT | $1.40 | $1.37 | 2 | |||
| 24 | 74639A2 | BELLOWS, Shift Cable | 74639 | SS/ACT |
|
$33.58 | $32.98 | 1 | |
| 25 | 54-8M0204733 | CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE | 38863 | SS/ACT |
|
$7.20 | $7.03 | 1 | |
| 26 | 54-8M0204716 | CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING | 31766 | SS/ACT |
|
$11.10 | $10.83 | 1 | |
| 27 | 12-34567 | WASHER, GIMBAL HOUSING STUD | ACT | $1.40 | $1.37 | 2 | |||
| 28 | 11-8M0204653 | NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD | 34933 | SS/ACT |
|
$5.10 | $4.98 | 2 | |
| 29 | 32-8M0171251 | TUBE, WATER - GIMBAL HOUSING | 86907 | SS/ACT |
|
$42.92 | $42.14 | 1 | |
| 29 | 32-869081 | TUBE, WATER - GIMBAL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 23-28055 | BUSHING, RUBBER - WATER TUBE SEALING | SS |
|
$0.00 | $0.00 | 1 | ||
| 31 | 32517 | COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 32 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel, WATER TUBE SEALING COVER TO GIMBAL HOUSING | ACT | $1.70 | $1.66 | 2 | |||
| 33 | 65533A1 | SEAL, GIMBAL HOUSING TO TRANSOM | 65533 | SS/ACT |
|
$15.00 | $14.63 | 1 | |
| 34 | 27-476441 | GASKET, HYDRAULIC CONNECTOR | 47644 | SS/ACT |
|
$2.60 | $2.54 | 1 | |
| 35 | 47347 | CONNECTOR, HYDRAULIC - GIMBAL HOUSING | ACT | $51.00 | $49.06 | 1 | |||
| 36 | 11-35888 | NUT, (.250-28) Stainless Steel, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD | ACT | $6.60 | $6.44 | 2 | |||
| 37 | 57322T | COVER, RETAINING - GIMBAL HOUSING | SS |
|
$0.00 | $0.00 | 1 | ||
| 38 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING | ACT | $1.70 | $1.66 | 2 | |||
| 39 | 13-78968 | LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR TO GIMBAL HOUSING STUD | ACT | $1.70 | $1.66 | 2 |
