Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

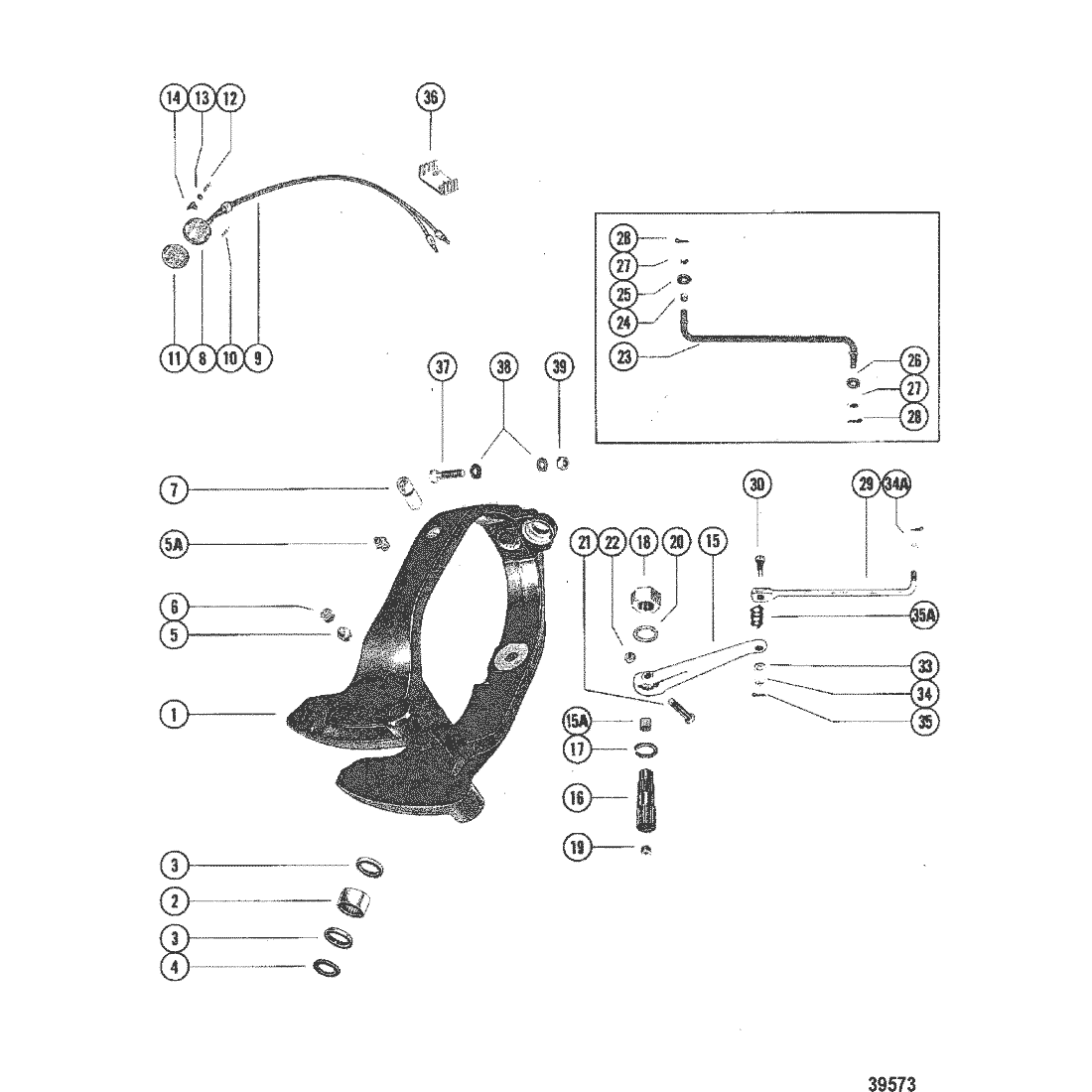

1 88302A1 GIMBAL RING ASSEMBLY 77124A2 SS $0.00 $0.00 1
1 94993A7 GIMBAL RING ASSEMBLY 88343A2 SS $1,053.49 $943.38 1
2 32538 --BEARING, ROLLER - GIMBAL RING ACT $9.98 $9.74 1
3 32541 --SEAL, Oil, GIMBAL RING ACT $18.99 $18.58 2
4 39273 --SPACER, GIMBAL RING ACT $18.99 $18.53 1
5 69059 --FITTING, GREASE - GIMBAL RING (1/8-27) NLA $0.00 $0.00 1
5A 8M0169589 FITTING, Grease, GIMBAL RING (1/4-28) 74036 SS $4.79 $4.69 2
6 77633Q LUBRICAP, GIMBAL RING GREASE FITTING 29359 SS $6.99 $6.83 3
7 77123 PIN, Hinge, THREADED (WITH GREASE GROOVE) ACT $32.39 $31.75 2
8 64947 SENDER, DUMMY ACT $22.99 $22.51 1
8 805320A03 SWITCH ASSEMBLY, TRIM LIMIT 88678A5 SS $176.99 $159.19 1
9 19280 HARNESS ASSEMBLY, DUMMY SENDER 70967 SS $0.00 $0.00 1
9 19292 HARNESS ASSEMBLY, TRIM LIMIT SWITCH 70968 SS $0.00 $0.00 1
10 46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING ACT $1.10 $1.08 2
10 63400 SCREW, (#6-32 x .125), HARNESS ATTACHING NLA $0.61 $0.60 2
11 63990 INSULATOR, SWITCH AND SENDER ACT $8.19 $8.00 2
12 37978 SCREW, (#10-32 x .750) Stainless Steel, AND SENDER TO GIMBAL RING ACT $3.39 $3.30 4
13 26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW ACT $1.20 $1.18 4
14 57008 RETAINER, SWITCH AND SENDER SCREW ACT $3.99 $3.91 4
15 88771A1 LEVER ASSEMBLY, Steering 66546A1 SS $0.00 $0.00 1
15A 52698 --SLEEVE, STEERING LEVER NLA $0.00 $0.00 1
15 88771A1 LEVER, Steering 88771 SS $0.00 $0.00 1
15 88433 LEVER, Steering 66545 SS $0.00 $0.00 1
15 88433 LEVER, Steering NLA $0.00 $0.00 1
16 88302A1 SHAFT, UPPER SWIVEL 65537 NLA $0.00 $0.00 1
16 88302A2 SHAFT, UPPER SWIVEL NLA $399.30 $376.03 1
17 72413 RING, Retaining, UPPER SWIVEL SHAFT NLA $0.00 $0.00 1
18 8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFT 25599 SS $17.89 $17.46 1
19 8M0204652 PLUG, Pipe - Allen Head (.250-18), UPPER SWIVEL SHAFT 32561 SS $6.79 $6.64 1
20 85344 WASHER, (.750 Inside Diameter), UPPER SWIVEL SHAFT ACT $2.79 $2.72 1
20 32997 WASHER, UPPER SWIVEL SHAFT (.063) NLA $0.00 $0.00 1
21 807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT 32995 SS $4.49 $4.39 1
22 8M2008293 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW 79857 SS $1.20 $1.18 1
23 68291A2 LINK ROD ASSEMBLY, Steering NLA $0.00 $0.00 1
24 52698 --SLEEVE, STEERING LINK ROD NLA $0.00 $0.00 1
25 20086 --WASHER, (.390 x .620 x .060), STEERING LINK ROD ACT $1.70 $1.66 1
26 46132 --WASHER, STEERING LINK ROD (1/8" THICK) ACT $3.19 $3.11 1
27 55438 --NUT, (.375-24), STEERING LINK ROD ACT $2.19 $2.14 2
28 45882 --COTTER PIN, STEERING LINK ROD ACT $2.96 $2.90 2
29 78790A6 LINK ROD ASSEMBLY, Steering - V8 Engines 78790A4 SS $0.00 $0.00 1
30 87738A1 --SCREW ASSEMBLY, LEVER TO LINK ROD NLA $0.00 $0.00 1
33 20086 --WASHER, (.390 x .620 x .060), STEERING LINK ROD ACT $1.70 $1.66 1
34 82671013 --NUT, (.375-24), LINK ROD SCREW 34932 SS $4.69 $4.59 1
34A 55438 --NUT, (.375-24), STEERING LINK ROD ACT $2.19 $2.14 1
35 45882 --COTTER PIN, LINK ROD AND SCREW ACT $2.96 $2.90 2
35A 87739 --SPRING, LINK ROD SCREW NLA $0.00 $0.00 1
36 79146 RETAINER, CONNECTOR, TRIM LIMITS LEADS ACT $5.59 $5.47 2
37 88432 SCREW, (.375-24 x 4.00), GIMBAL RING ACT $99.99 $93.78 2
38 34931 WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW ACT $2.59 $2.53 4
39 82671013 NUT, (.375-24), GIMBAL RING SCREW 34932 SS $4.69 $4.59 2
- 805320A03 TRIM SENDER KIT 88678A4 SS $176.99 $159.19 1
- 805130A6 TRIM SENDER KIT 88678A6 SS $120.73 $108.86 1
