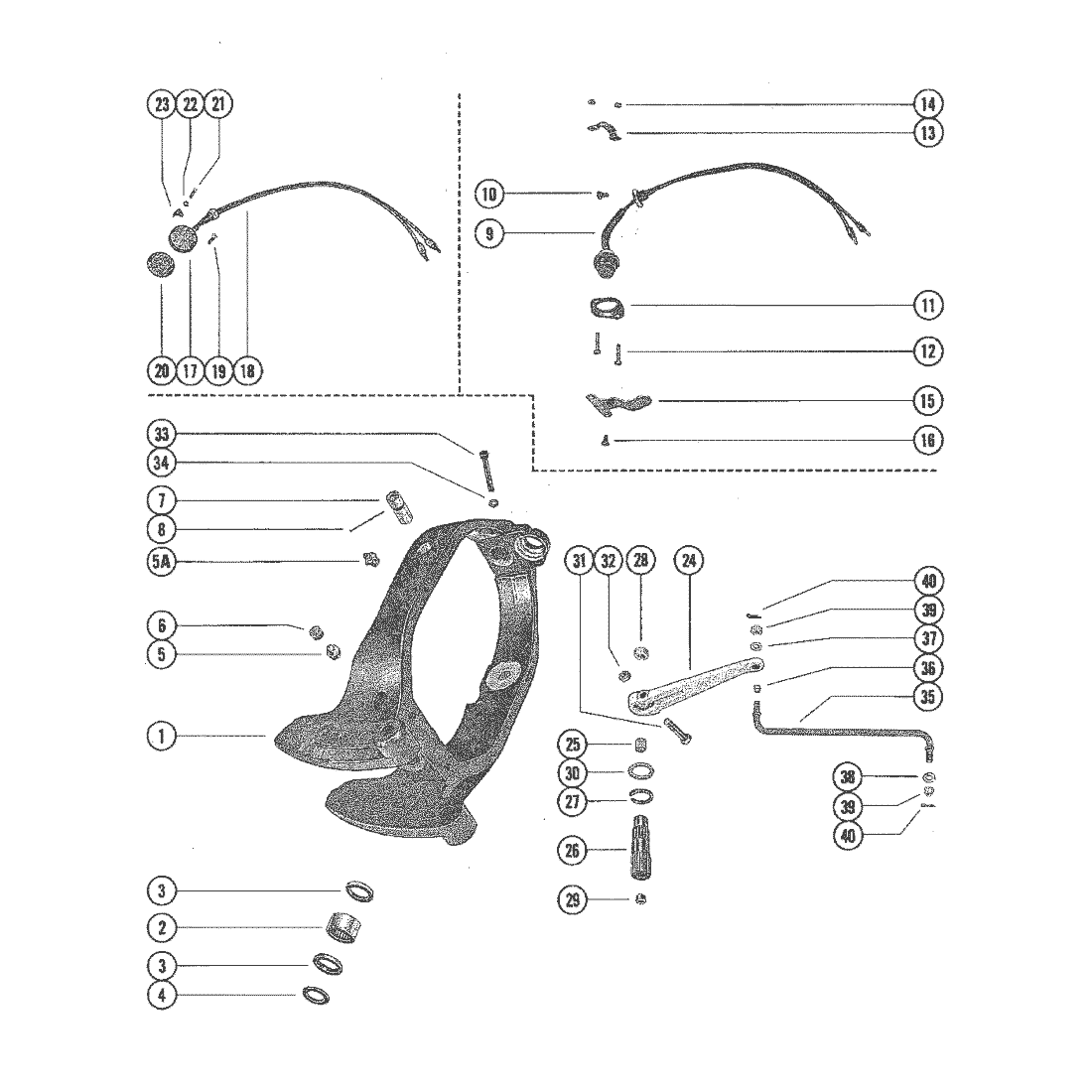

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 87356A1 | GIMBAL RING ASSEMBLY | SS |
 |
$0.00 | $0.00 | 1 | ||
| 1 | 88302A1 | GIMBAL RING ASSEMBLY | SS |
|
$1,085.64 | $995.24 | 1 | ||
| 1 | 88302A1 | GIMBAL RING ASSEMBLY | SS |
|
$1,085.64 | $995.24 | 1 | ||
| 2 | 31-32538 | --BEARING,ROLLER-GIMABL RING | ACT | $9.98 | $9.74 | 1 | |||
| 3 | 26-32541 | --OIL SEAL,GIMBAL RING | ACT | $21.34 | $20.85 | 2 | |||
| 4 | 23-39273 | --SPACER,GIMBAL RING | ACT | $18.30 | $17.85 | 1 | |||
| 5 | 22-69059 | --FITTING,GREASE-GIMBAL RING91/8-270 | SS |
|
$0.00 | $0.00 | 1 | ||
| 5A | 22-8M0169589 | --FITTING,GREASE-GIMBAL RING (1/4-28)-USED WITH B-77124A2 | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 6 | 77633Q | --LUBRICAP,GIMBAL RING GREASE FITTING | 29359 | SS/ACT |
|
$6.70 | $6.54 | 1 | |
| 7 | 17-77361A1 | PIN,HINGE-GIMBAL RING TO BELL HOUSING | 38031 | SS/ACT |
|
$80.92 | $77.83 | 2 | |
| 8 | 17-77039 | PIN,HINGE PIN RETAINING-GIMBAL RING | 35571 | SS/ACT |
|
$7.70 | $7.51 | 2 | |
| 7 | 77123 | PIN,HINGE-THREADED WITHOUT GREASE GROOVE | 65547 | SS/ACT |
|
$31.08 | $30.53 | 2 | |
| 7 | 77123 | PIN,HINGE-THREADED WITH GREASE GROOVE | ACT |
|
$31.08 | $30.53 | 2 | ||
| 9 | 45942A1 | TILT STOP SWITCH ASSEMBLY,GIMBAL RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 10-20367 | SCREW,TILT STOP SWITCH COVER TO GIMBAL RING(7/16") | SS |
|
$0.00 | $0.00 | 2 | ||
| 11 | 31899 | PLATE,RETAINING-TILT STOP SWITCH TO GIMBAL RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 12 | 10-45862 | SCREW,RETAINING PLATE AND STRAP TO GIMBAL RING (7/8") | ACT |
|
$1.30 | $1.27 | 1 | ||
| 13 | 32637 | STRAP,TILT STOP SWITCH RETAINING | SS |
|
$0.00 | $0.00 | 2 | ||
| 14 | 11-20110 | NUT,RETAINING PLATE AND STRAP SCREW | ACT |
|
$1.60 | $1.57 | 2 | ||
| 15 | 49343 | LEVER,ACTUATING-GIMBAL RING | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 10-31903 | SCREW,ACTUATING LEVER TO GIMBAL RING (3/8") | ACT |
|
$0.67 | $0.66 | 2 | ||
| 17 | 64947 | SENDER,DUMMY(STARBOARD SIDE) | ACT |
|
$22.00 | $21.61 | 1 | ||
| 18 | 84-19280 | HARNESS,DUMMY SENDER | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 10-46942 | SCREW,HARNESS ATTCHING (5/16") | ACT |
|
$1.10 | $1.08 | 2 | ||
| 17 | 63115A2 | SWITCH ASSEMBLY,TRIM LIMIT (PORT SIDE) | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 84-19292 | HARNESS,TRIM LIMIT SWITCH | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 10-63400 | SCREW,HARNESS ATTACHING (5/32") | ACT |
|
$0.66 | $0.65 | 2 | ||
| 20 | 85-63990 | INSULATOR,SWITCH AND SENDER | ACT |
|
$7.90 | $7.71 | 2 | ||
| 21 | 10-37978 | SCREW,SWITCH AND SENDER TO GIMBAL RING (3/4") | ACT |
|
$3.30 | $3.22 | 4 | ||
| 22 | 13-26996 | LOCKWASHE,SWITCH AND SENDER SCREW | ACT |
|
$1.20 | $1.18 | 4 | ||
| 23 | 57008 | RETAINER,SWITCH AND SENDER SCREW | ACT |
|
$3.80 | $3.71 | 4 | ||
| 24 | 88771A1 | STEERING LEVER ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 24 | 88771A1 | STEERING LEVER ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 23-52698 | --SLEEVE,STEERING LEVER | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 32582 | SHAFT,UPPER SWIVE | SS |
|
$0.00 | $0.00 | 1 | ||
| 26 | 65537 | SHAFT,UPPER SWIVEL | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 11-8M2014641 | NUT,UPPER SWIVEL SHAFT | 25599 | SS/ACT |
|
$15.50 | $15.12 | 1 | |
| 29 | 22-8M0204652 | PLUG,-PIPE-UPPER SWIVEL SHAFT | 32561 | SS/ACT |
|
$6.50 | $6.34 | 1 | |
| 30 | 12-32996 | WASHER,UPPER SWIVEL SHAFT (0.15 | SS |
|
$0.00 | $0.00 | AR | ||
| 30 | 12-32997 | WASHER,UPPER SWIVEL SHAFT(.063) | SS |
|
$0.00 | $0.00 | AR | ||
| 30 | 12-47683 | WASHER,UPPER SWIVEL SHAFT(.0310 | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 12-32997 | WASHER,UPPER SWIVEL SHAFT (.063) | SS |
|
$0.00 | $0.00 | 2 | ||
| 31 | 10-807204 | SCREW,STEERING LEVER TO UPPER SWIVEL SHAFT (2") | 32995 | SS/ACT |
|
$4.30 | $4.20 | 1 | |
| 32 | 11-20696 | NUT,STEERING LEVER TO UPPER SWIVEL SHAFT SCREW | SS |
|
$0.00 | $0.00 | 1 | ||
| 33 | 10-45833 | SCREW,UPPER SWIVEL SHAFT(2 1/2") | ACT |
|
$3.40 | $3.33 | 1 | ||
| 34 | 12-20546 | WASHER,UPPER SWIVEL SHAFT SCREW | ACT |
|
$5.78 | $5.64 | 1 | ||
| 35 | 68291A2 | STEERING LINK ROD ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 36 | 23-52698 | --SLEEVE,STEERING LINK ROD | SS |
|
$0.00 | $0.00 | 1 | ||
| 37 | 12-20086 | --WASHER,STEERING LINK ROD (1/16"THICK) | ACT |
|
$1.60 | $1.57 | 4 | ||
| 39 | 11-8M0204726 | --NUT,STEERING LINK ROD | 20509 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 35 | 68291A2 | STEERING LINK ROD ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 35 | 68291A2 | STEERING LINK ROD ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 36 | 23-52698 | --SLEEVE,STEERING LINK ROD | SS |
|
$0.00 | $0.00 | 1 | ||
| 37 | 12-20086 | WASHER,STEERING LINK ROD (1/16"THICK) | ACT |
|
$1.60 | $1.57 | 1 | ||
| 37 | 12-46132 | --WASHER,STEERING LINK ROD (1/8"THICK)3 | ACT |
|
$3.10 | $3.03 | 1 | ||
| 38 | 11-55438 | --NUT,STEERING LINK ROD | ACT |
|
$2.10 | $2.05 | 2 | ||
| 40 | 18-45882 | --COTTER PIN,STEERING LINK ROD | ACT |
|
$2.82 | $2.77 | 2 |
