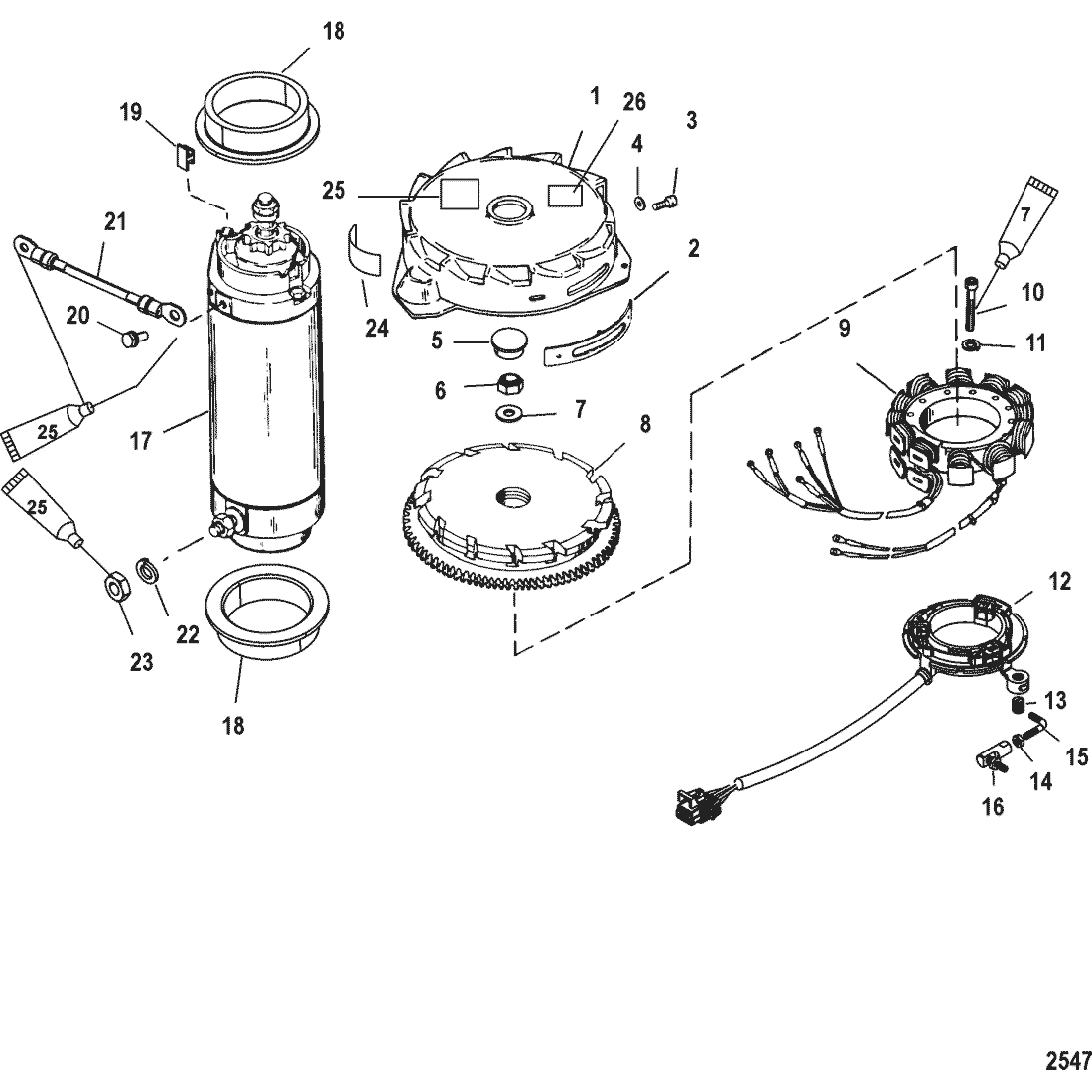

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 18896A1 | COVER KIT | ACT |
 |
$105.83 | $99.67 | 1 | ||
| 2 | 79022 | --MARKER | ACT | $36.00 | $35.35 | 1 | |||
| 3 | 10-37572 | --SCREW, (.190-32 x .380) | ACT | $1.10 | $1.08 | 2 | |||
| 4 | 12-72761 | --WASHER, (.203 x .562 x .060) Stainless Steel | ACT | $1.49 | $1.46 | 2 | |||
| 5 | 19-45907 | PLUG, Yellow | ACT | $6.80 | $6.64 | 1 | |||
| 6 | 11-52901 | NUT, (.625-18) | ACT | $12.70 | $12.39 | 1 | |||
| 7 | 12-33001 | WASHER, (.641 x 1.250 x .190) | 68229 | SS/ACT |
|
$11.20 | $10.93 | 1 | |
| 8 | 271-859238T17 | FLYWHEEL ASSEMBLY | 859238T4 | SS/ACT |
|
$671.50 | $631.75 | 1 | |
| 8 | 271-859238T17 | FLYWHEEL | 859238T15 | SS/ACT |
|
$671.50 | $631.75 | 1 | |
| 9 | 398-858404T4 | STATOR | ACT |
|
$792.64 | $745.72 | 1 | ||
| 9 | 398-858404T4 | STATOR ASSEMBLY | 858404T3 | SS/ACT |
|
$792.64 | $745.72 | 1 | |
| 10 | 10-90045 | SCREW, (#10-32 x 1.375) | ACT | $3.60 | $3.52 | 5 | |||
| 11 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 5 | |||
| 12 | 96455T18 | TRIGGER ASSEMBLY | 96455A18 | SS/ACT |
|
$262.75 | $247.44 | 1 | |
| 13 | 74897T | --PIVOT | 74897 | SS/ACT |
|
$12.40 | $12.10 | 1 | |
| 14 | 11-45076 | --NUT, (#10-32) Brass | ACT | $1.70 | $1.66 | 1 | |||
| 15 | 76035 | --ROD | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 62459T | --BALL JOINT ASSEMBLY | 62459 | SS/ACT |
|
$20.58 | $20.22 | 1 | |
| 17 | 50-893893 | STARTER MOTOR ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 50-893893 | STARTER MOTOR ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 50-893893 | STARTER MOTOR ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8M0034918 | COLLAR | 56703 | SS/ACT |
|
$8.90 | $8.68 | 2 | |
| 19 | 8M0043376 | STOP, Rubber, Rubber | 68042 | SS/ACT |
|
$41.58 | $40.84 | 2 | |
| 20 | 10-69035 | SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel | ACT | $1.70 | $1.66 | 1 | |||
| 21 | 84-93388A1 | CABLE ASSEMBLY, (6.00 Inches) Black | ACT | $12.70 | $12.39 | 1 | |||
| 22 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | ACT | $1.20 | $1.18 | 1 | |||
| 23 | 11-94330 | NUT, (.250-20) Brass | ACT | $1.60 | $1.57 | 1 | |||
| 24 | NSS | NOT SOLD SEPARATE, Decal-In-Gear Idle |
|
$0.00 | $0.00 | 1 | |||
| 25 | 37-8272822 | DECAL, Warning, High Voltage | ACT | $13.30 | $12.97 | 1 | |||
| 26 | 37-881865 | DECAL, Caution-Start in Gear | ACT |
|
$11.10 | $10.83 | 1 |
