| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

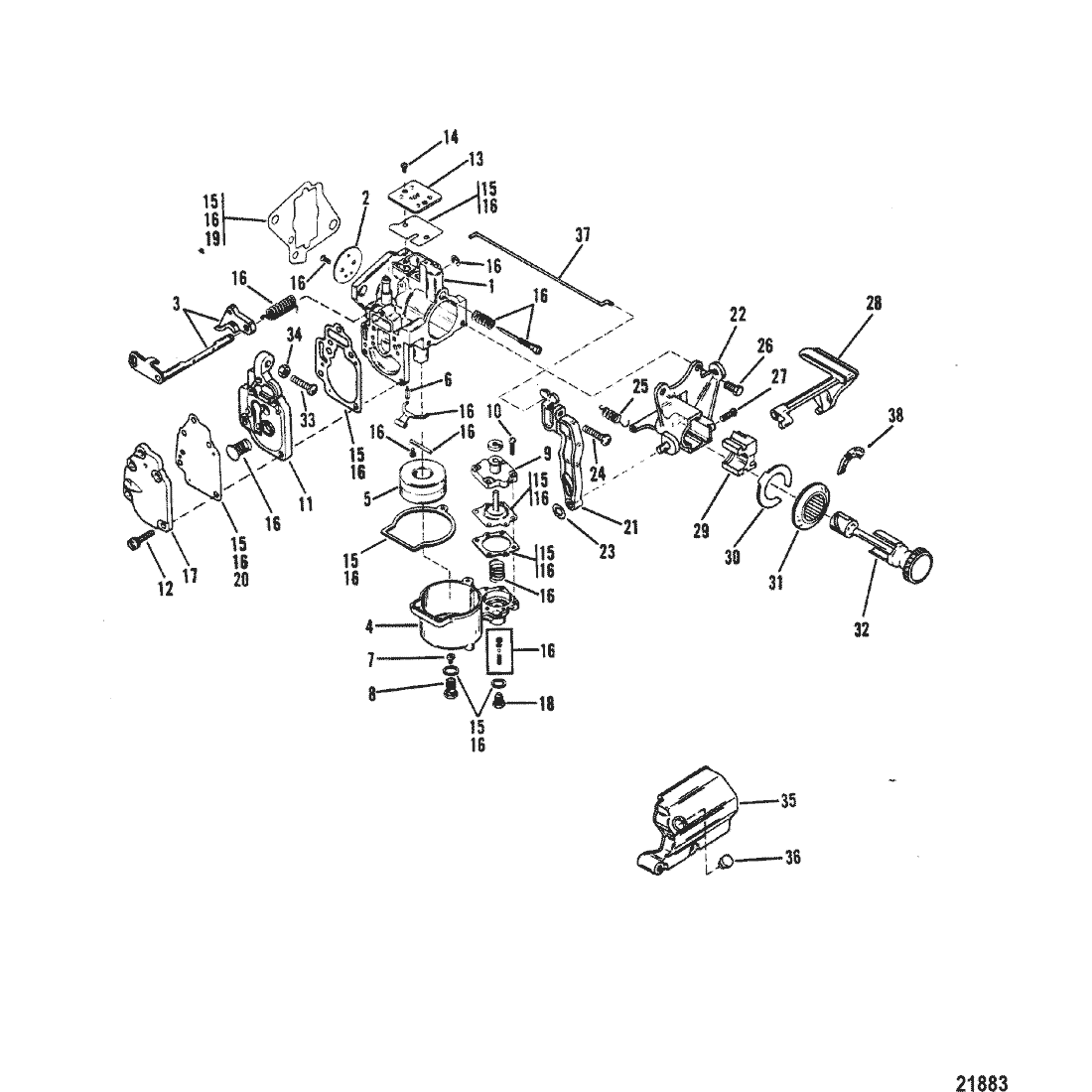

| 1 | 9726T19 | CARBURETOR (WMC-39) | 9726A3 | SS |
|
$500.99 | $455.88 | 1 | |
| 2 | 19268 | --VALVE, Throttle (WMC-28) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 823716 | --VALVE, Throttle (WMC-39) | ACT | $14.89 | $14.53 | 1 | |||
| 3 | 19267 | --SHAFT, Throttle (INCLS.SCREW & SPRING) | ACT | $41.99 | $41.16 | 1 | |||
| 4 | 9164 | --BOWL, Fuel | ACT | $88.99 | $83.74 | 1 | |||
| 5 | 91691 | --FLOAT | 9169 | SS |
|
$13.59 | $13.27 | 1 | |
| 6 | 803861 | --VALVE | 9855 | SS |
|
$25.49 | $24.96 | 1 | |
| 7 | 4215 | --JET, Main Fuel (.066) | ACT | $17.19 | $16.78 | 1 | |||
| 8 | 9171 | --PLUG, JET RETAINER | ACT | $8.89 | $8.68 | 1 | |||
| 9 | 813618 | --COVER, DIAPHRAGM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 9697 | --SCREW, DIAPHRAGM COVER | NLA |
|
$0.00 | $0.00 | 4 | ||
| 11 | 9702 | --BODY | 15827A1 | NLA |
|
$0.00 | $0.00 | 1 | |
| 12 | 9643 | --SCREW, FUEL PUMP COVER | ACT | $4.99 | $4.88 | 5 | |||
| 13 | 9699 | --PLATE, COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 9696 | --SCREW, COVER PLATE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 15 | 97611 | --GASKET/DIAPHRAGM KIT | 9803 | SS |
|
$87.99 | $82.80 | 1 | |
| 16 | 8237072 | --REPAIR PARTS KIT | 19269 | SS |
|
$136.99 | $123.13 | 1 | |
| 17 | 9637 | --COVER, FUEL PUMP | ACT | $30.79 | $30.20 | 1 | |||
| 18 | 9762 | --PLUG | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 192061 | --GASKET, Carburetor | ACT | $4.99 | $4.88 | 1 | |||
| 20 | 9635 | --DIAPHRAGM/GASKET | ACT | $45.99 | $45.17 | 1 | |||
| 21 | 128053 | LEVER, Fast Idle | ACT | $11.19 | $10.93 | 1 | |||
| 22 | 12803 | BRACKET, Primer | ACT | $30.49 | $29.87 | 1 | |||
| 23 | 821979 | PUSH NUT | 97877 | SS |
|
$1.70 | $1.66 | 1 | |
| 24 | 12110 | SCREW, (#6-32 x .750) | 79964 | SS |
|
$1.80 | $1.76 | 1 | |
| 25 | 11277 | SPRING, Tension | ACT | $3.69 | $3.59 | 1 | |||
| 26 | 40056110 | SCREW, (M5 x 30) | ACT | $1.80 | $1.76 | 2 | |||
| 26 | 400018 | SCREW, (M5 x 12) | ACT | $1.10 | $1.08 | 2 | |||
| 27 | 79965 | SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.10 | $1.08 | 1 | |||
| 28 | 112731 | LEVER, Primer | ACT | $13.09 | $12.78 | 1 | |||
| 29 | 11280 | CAM BLOCK | ACT | $8.09 | $7.90 | 1 | |||
| 30 | 11278 | CLIP, Retaining | ACT | $6.69 | $6.54 | 1 | |||
| 31 | 12804A1 | BEZEL ASSEMBLY, Choke | ACT | $30.09 | $29.54 | 1 | |||
| 32 | 128022 | PRIMER KNOB | ACT | $17.79 | $17.36 | 1 | |||
| 33 | 40056110 | SCREW, (M5 x 30) | ACT | $1.80 | $1.76 | 1 | |||
| 34 | 400211 | NUT, (M5) Stainless Steel | ACT | $3.59 | $3.50 | 1 | |||
| 35 | 17442 | COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | 47579 | PLUG | ACT | $1.60 | $1.57 | 1 | |||
| 37 | 445541 | IDLE WIRE | ACT | $11.19 | $10.93 | 1 | |||
| 38 | 129701 | DECAL (SLOW/FAST) | 12970 | SS |
|
$5.49 | $5.37 | 1 |
