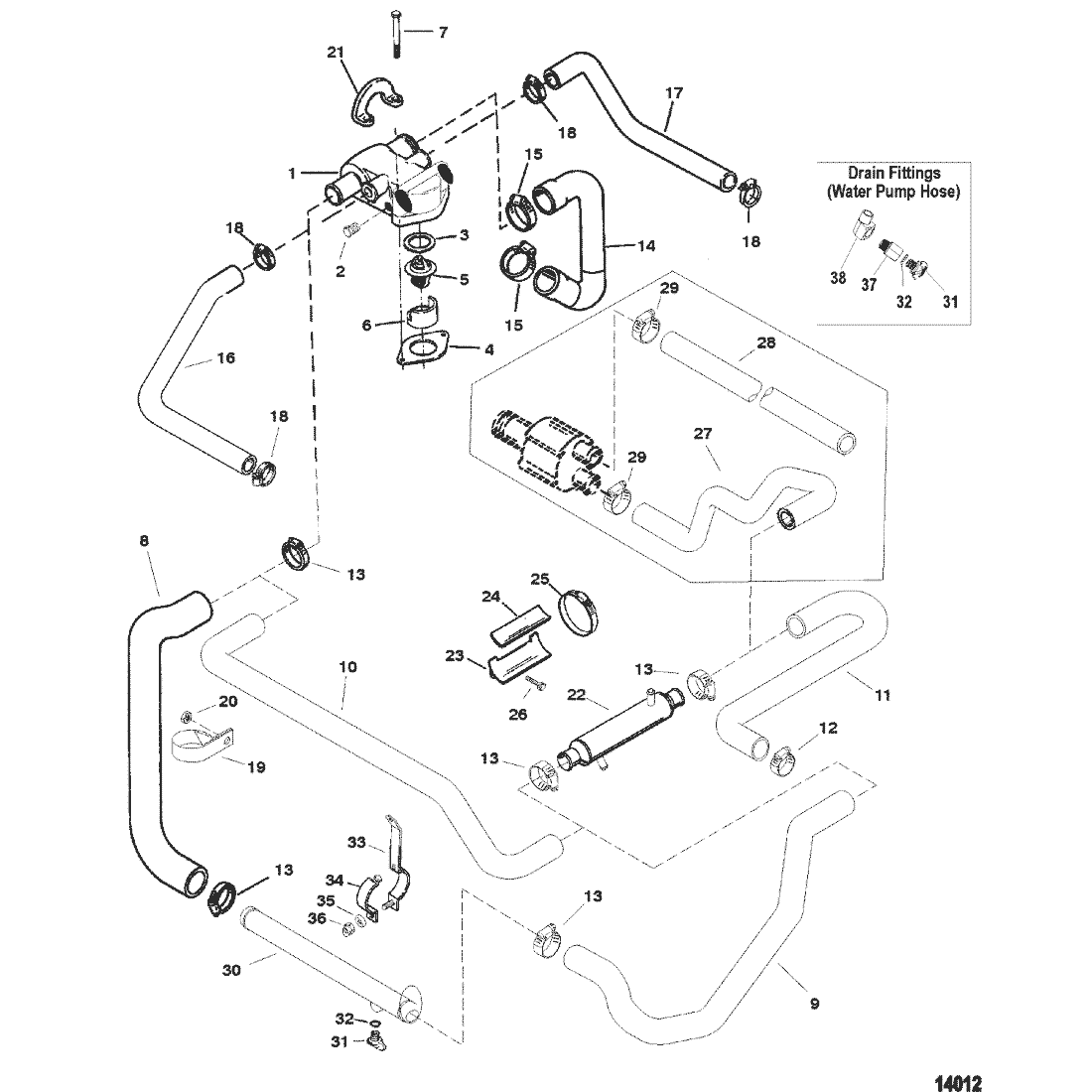

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 860256A3 | HOUSING ASSEMBLY, Thermostat | ACT |
|
$413.99 | $395.52 | 1 | ||
| 1 | 860256A4 | HOUSING ASSEMBLY, Thermostat | ACT |
|
$421.99 | $403.37 | 1 | ||
| 2 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS |
|
$7.99 | $7.81 | 2 | |
| 3 | 8M0238323 | --GASKET | 806871 | SS |
|
$10.20 | $9.95 | 1 | |
| 4 | 530451 | --GASKET | ACT | $5.69 | $5.56 | 1 | |||
| 5 | 8M0109441 | THERMOSTAT, 71°C (160°F) | 807252T2 | SS |
|
$34.49 | $33.72 | 1 | |
| 6 | 8M0214947 | SLEEVE | 806922 | SS |
|
$17.89 | $17.46 | 1 | |
| 7 | 8M0113179 | SCREW, (.375-16 x 3.00) | 98508 | SS |
|
$8.19 | $8.00 | 2 | |
| 8 | 808033 | HOSE, Molded, Thermostat Housing To Hose Extender | ACT |
|
$61.99 | $59.57 | 1 | ||
| 9 | 8600891 | HOSE, Molded, Hose Extender To Power Steering Cooler | ACT |
|
$86.99 | $83.28 | 1 | ||
| 10 | 861512 | HOSE, Thermostat Housing To Power Steering Cooler | ACT |
|
$65.49 | $62.76 | 1 | ||
| 11 | 807661 | HOSE | ACT |
|
$66.99 | $64.29 | 1 | ||
| 12 | 815504212 | CLAMP, Worm Gear | ACT |
|
$5.89 | $5.76 | 1 | ||
| 13 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter) | 815504222 | SS |
|
$5.69 | $5.56 | 5 | |
| 14 | 861590A05 | HOSE, Molded | 87108 | SS |
|
$65.99 | $63.16 | 1 | |
| 14 | 861590A05 | HOSE ASSEMBLY | 861590A2 | SS |
|
$65.99 | $63.16 | 1 | |
| 15 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.89 | $8.68 | 2 | |||
| 16 | 860144 | HOSE, Thermostat Housing To Port Exhaust Manifold | ACT |
|
$63.99 | $61.50 | 1 | ||
| 16 | 862139 | HOSE, Thermostat Housing to Port Exhaust Manifold | ACT |
|
$61.99 | $59.48 | 1 | ||
| 16 | 860144 | HOSE, Thermostat Housing To Port Exhaust Manifold | ACT |
|
$63.99 | $61.50 | 1 | ||
| 16 | 862139 | HOSE, Thermostat Housing to Port Exhaust Manifold | ACT |
|
$61.99 | $59.48 | 1 | ||
| 17 | 807697 | HOSE, Thermostat Housing to Starboard Manifold | ACT | $79.49 | $76.23 | 1 | |||
| 18 | 815504220 | CLAMP, Worm Gear | ACT | $7.59 | $7.42 | 4 | |||
| 19 | 47715 | CLIP | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 29250 | NUT, (.312-24) | ACT | $2.89 | $2.82 | 1 | |||
| 21 | 12552 | LIFTING EYE | ACT | $19.89 | $19.41 | 1 | |||
| 22 | 8M0125855 | COOLER | 861554T | SS |
|
$212.99 | $200.27 | 1 | |
| 23 | 805546A2 | BRACKET, Oil Cooler | ACT |
|
$91.99 | $88.25 | 1 | ||
| 24 | 772233 | --PAD | ACT | $5.99 | $5.86 | 1 | |||
| 25 | 815504224 | CLAMP, Worm Gear | ACT | $5.19 | $5.08 | 1 | |||
| 26 | 816585 | SCREW, (.375-18 x .875) | ACT |
|
$3.39 | $3.30 | 1 | ||
| 26 | 8M2016106 | SCREW, (.312 x 1.25) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 27 | 8080441 | HOSE, Molded | ACT |
|
$92.49 | $88.97 | 1 | ||
| 28 | 8M0062666 | HOSE, (96.00 Inches Bulk) | 86334379 | SS |
|
$220.99 | $207.96 | 1 | |
| 29 | 8M0188622 | CLAMP, Worm Gear (1.98 DIameter) | 815504222 | SS |
|
$5.69 | $5.56 | 2 | |
| 30 | 860315A1 | TUBE, Hose Extender | ACT |
|
$41.49 | $40.58 | 1 | ||
| 31 | 8M0119211 | --PLUG KIT, (.500-13) Royal Blue | 806608A1 | SS |
|
$10.19 | $9.95 | 5 | |
| 32 | 62706 | ----O-RING, (.426 x .070) | ACT | $2.39 | $2.33 | 5 | |||
| 33 | 860418T | BRACKET | ACT | $16.89 | $16.53 | 1 | |||
| 34 | 860417T | CLAMP | ACT | $19.09 | $18.63 | 1 | |||
| 35 | 35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | ACT | $1.80 | $1.76 | 1 | |||
| 36 | 8267088 | NUT, (.250-20) | ACT | $1.70 | $1.66 | 1 | |||
| 37 | 8M0214973 | BUSHING | 860088 | SS |
|
$12.79 | $12.49 | 1 | |
| 38 | 37682 | FITTING, Elbow (45 Degree) | ACT | $17.49 | $17.19 | 1 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR | |
| - | 861246A05 | GASKET SET | 861246A98 | SS |
|
$826.99 | $777.78 | 1 |
