| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

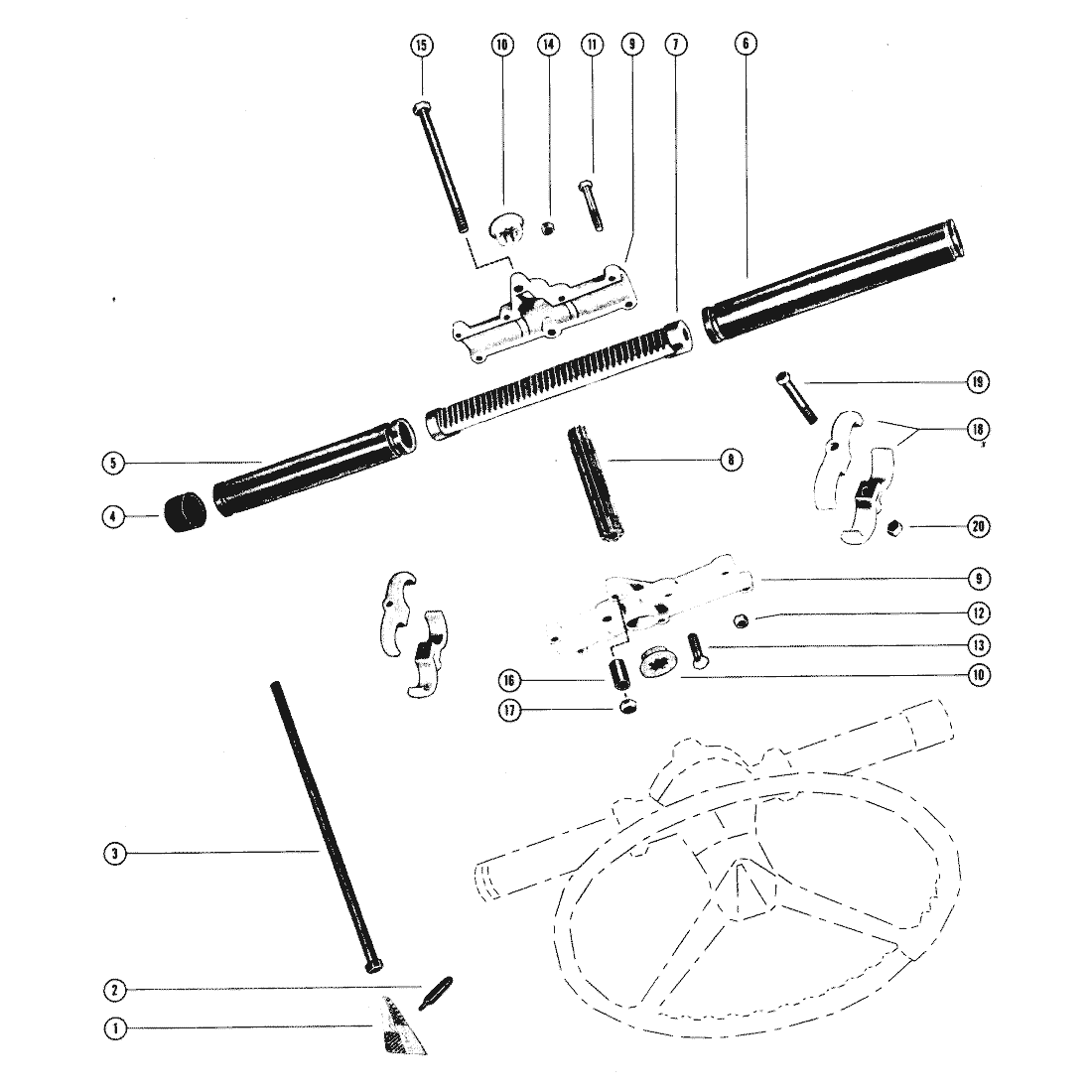

| - | 31217A2 | SUPER RIDE-GUIDE STEERING KIT | 31217A1 | SS |
|
$0.00 | $0.00 | 1, | |
| - | 31217A2 | SUPER RIDE-GUIDE STEERING KIT | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 1 | 29088 | --PLATE, NAME (RIDE-GUIDE) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 2 | 30835 | --TUBE, ADHESIVE CAPSULE - NAME PLATE FASTENING | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 3 | 31222 | --BOLT, STEERING WHEEL TO GEAR RACK HOUSING | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 3 | 35569 | --BOLT, STEERING WHEEL TO GEAR RACK HOUSING | NLA |
|
$0.00 | $0.00 | ,1 | ||
| 4 | 26059 | --CAP, RUBBER - GEAR RACK TUBE (OPEN END) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 5 | 25896 | --TUBE, GEAR RACK (OPEN END) | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 6 | 79440A1 | --TUBE, GEAR RACK (CABLE END) | 25895 | SS |
|
$0.00 | $0.00 | 1,1 | |
| 7 | 25887 | --RACK, GEAR | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 8 | 31221 | --PINION, GEAR RACK TO GEAR RACK | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 9 | 25884 | --HOUSING, GEAR RACK | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 10 | 25901 | --BUSHING, NYLON - GEAR RACK HOUSING | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 11 | 20784 | --SCREW, GEAR RACK HOUSING CLAMPING (1/4") | NLA |
|
$1.14 | $1.12 | 6,6 | ||
| 12 | 8267089 | --NUT, GEAR RACK HOUSING CLAMPING SCREW (1/4") | 20361 | SS |
|
$1.50 | $1.47 | 6,6 | |
| 13 | 24217 | --SCREW, GEAR RACK HOUSING CLAMPING (3/8") | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 14 | 8M0204726 | --NUT, GEAR RACK HOUSING CLAMPING SCREW (3/8") | 20509 | SS |
|
$1.80 | $1.76 | 1,1 | |
| 15 | 31220 | --SCREW, GEAR RACK HOUSING TO BRACKET | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 16 | 31219 | --SPACER, GEAR RACK HOUSING TO BRACKET SCREW | NLA |
|
$0.00 | $0.00 | 1,1 | ||
| 17 | 8M0204726 | --NUT, GEAR RACK HOUSING TO BRACKET SCREW FASTENING | 20509 | SS |
|
$1.80 | $1.76 | 1,1 | |
| 18 | 31218 | --BRACKET, GEAR RACK TUBE TO GEAR RACK TUBE | NLA |
|
$0.00 | $0.00 | 4,4 | ||
| 19 | 22039 | --SCREW, GEAR RACK TUBE BRACKET CLAMPING | NLA |
|
$0.00 | $0.00 | 2,2 | ||
| 20 | 826709111 | --NUT, GEAR RACK TUBE BRACKET CLAMPING SCREW | 20102 | SS |
|
$4.49 | $4.39 | 2,2 |
