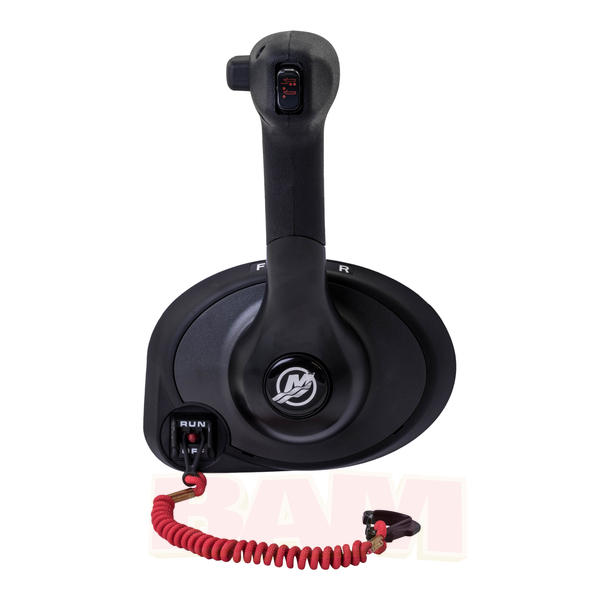

8M0011214 MPC 4000 Panel Mount Gen II Finger Release Inboard/Sterndrive Control
WARNING: Cancer - www.P65Warnings.ca.gov
The Panel Mount control features a black handle and comes with a 4ft. (1.22 m) trim and trailer switch harness with the 4 pin molex connector. All installations require a separate Ignition/Choke assembly and throttle/shift cables to complete the installation. The neutral safety switch leads are 6.5 ft. (1.98 m) and have a bullet connector on the ends. The lanyard switch leads also have bullet style connector ends.
Must use Gen II Throttle/Shift cables part # 897978A__ (choose your size)
The power trim extension harness also needs to be ordered separately:
84‑817659T01 & 84‑881125A1 = 4 pin Molex to traditional Mercury 3 blade P/T connector.
84‑865772T01 & 84‑865772T02 = 4 pin Molex to the Packard 3 pin P/T connector
Fits all current sterndrive and Mercury/Mariner 3.4L outboards with external trim cylinders.
Replaces 858690A3, 858690A7 and 858690A9
