8.2 MAG

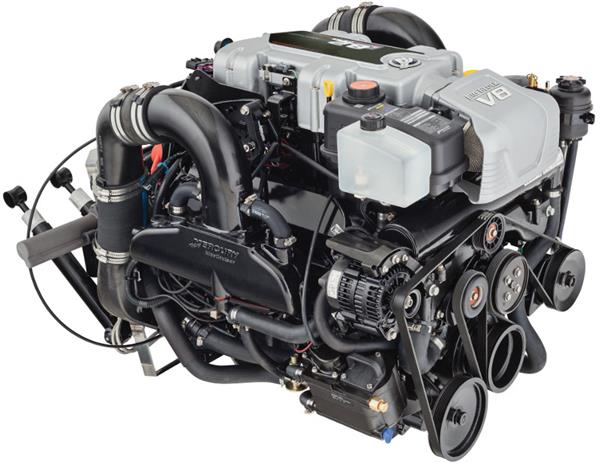

MERCURY® MERCRUISER® 8.2L, 380 HP V-8 Engines Simple. Easy. Powerful. Built for ease – from maintenance to maneuvering. The 8.2L is only available with exhaust catalysts (ECT). The 8.2L comes standard with DTS (digital throttle and shift), closed cooling and 2" risers. Check out our 520 engine which is an alternate and on sale now. See related items at bottom of page.
Manufacturer part number: 40820068V to 40820087V
*
$30,935.00
$28,176.41
Product Shipping specifications = pounds and inches

8.2 MAG ENGINE SPECIFICATIONS

HP / kW
  • 380 / 283
Maximum RPM (WOT)
  • 4400 - 4800
Engine type
  • V-8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X

8.2 MAG ENGINE SPECIFICATIONS

HP / kW
  • 380 / 283
Maximum RPM (WOT)
  • 4400 - 4800
Engine type
  • V-8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X
Products specifications
Propshaft Horsepower 380
Displacement 502 CID / 8.2 L
Maximum RPM (WOT) 4400-4800
Compression Ratio 8.75:1
Fuel Requirement 87 Octane (R+M)/2 (up to 10% Ethanol)
Cooling system Closed cooling Long life 5 year antifreeze
Weight 1250 lbs
*
*
*
*
Products specifications
Propshaft Horsepower 380
Displacement 502 CID / 8.2 L
Maximum RPM (WOT) 4400-4800
Compression Ratio 8.75:1
Fuel Requirement 87 Octane (R+M)/2 (up to 10% Ethanol)
Cooling system Closed cooling Long life 5 year antifreeze
Weight 1250 lbs
Related products
Bravo 1 X drive for sale

Bravo 1 X Sterndrive

$13,528.55 $8,860.23
Bravo One X for Gas Sterndrives with Dual Water Pickup. Designed to handle the power of big block engines. Longer torpedo and deeper skeg for control at all speeds. Gimbal, trim cylinders and prop sold separately. Choose your ratio and see your discounted price.

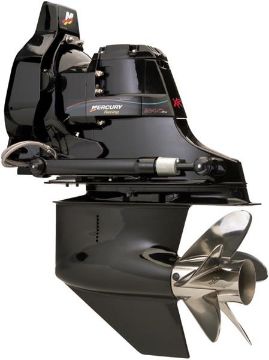

Picture of Bravo 1 XR Diesel Sterndrive
