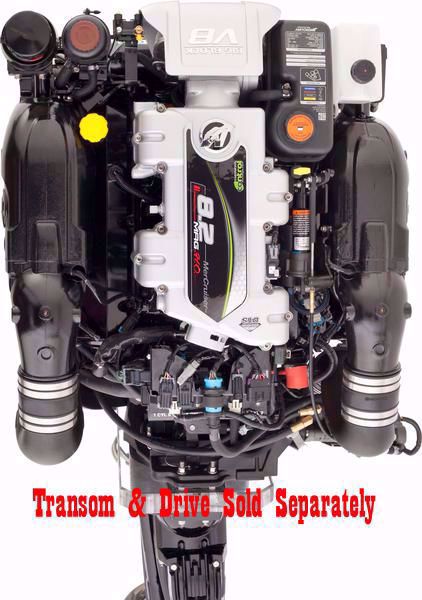

Mercury-Mercruiser 8.2 MAG HO Engine Only

new Mercury-Mercruiser 8.2 MAG 502 HO Engine new Mercury 502 8.2L MAG HO EC Engine
MERCURY® MERCRUISER® 8.2L MAG HO EC 430 HP V-8 Marine Engine Simple. Easy. Powerful. Built for ease – from maintenance to maneuvering. All 8.2 HO's come standard with DTS (digital throttle and shift) and closed cooling. 2" Risers come standard.Transom/Gimbal assembly sold separately. Non-Catalyzed is no longer available.
Manufacturer part number: 40820001V to 40820086V
*
$43,435.00
$40,718.00
Product Shipping specifications = pounds and inches

8.2 MAG HO ENGINE SPECIFICATIONS

HP / kW
  • 430 / 321
Maximum RPM (WOT)
  • 4600 - 5000
Engine type
  • V-8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X

8.2 MAG HO ENGINE SPECIFICATIONS

HP / kW
  • 430 / 321
Maximum RPM (WOT)
  • 4600 - 5000
Engine type
  • V-8
Displacement (L)
  • 8.2
Bore and stroke
  • 4.47 x 4.00" / 113.5 x 101.6 mm
Compression ratio
  • 8.75:1
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Engine control system
  • PCM 09 with SmartCraft CAN capability OBD-M diagnostics Dual oxygen sensors
Fuel delivery system
  • Multi-point Electronic Fuel Injection (MPI)
Air induction
  • High inertia induction system
Ignition
  • Distributorless ignition with knock control
Alternator amp / Watt
  • 65 amp / 917 watt
Water drain system
  • Single point air actuated
Exhaust system
  • Tuned runner exhaust manifolds with 316 stainless steel tubular dry joint elbows
Cooling system
  • Brass sea water pump
  • Closed cooling
  • Long life 5-year antifreeze
Accessory drive system
  • Auto-tensioner
  • Serpentine belt
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 35 x 33 x 24" / 878 x 838 x 610 mm
Weight (engine only)
  • 1,122 lbs / 509 kg
Compatible drives
  • Bravo One X
  • Bravo One XR
  • Bravo Three X
  • Bravo Three XR
  • Bravo Two X
Products specifications
Propshaft Horsepower 430
Displacement 502 CID / 8.2 L
Maximum RPM (WOT) 4600-5000
Compression Ratio 8.75:1
Fuel Requirement Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON
Cooling system Closed cooling Long life 5 year antifreeze
Weight 1250 lbs
*
*
*
*
Products specifications
Propshaft Horsepower 430
Displacement 502 CID / 8.2 L
Maximum RPM (WOT) 4600-5000
Compression Ratio 8.75:1
Fuel Requirement Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON
Cooling system Closed cooling Long life 5 year antifreeze
Weight 1250 lbs
Related products
Bravo 1 X drive for sale

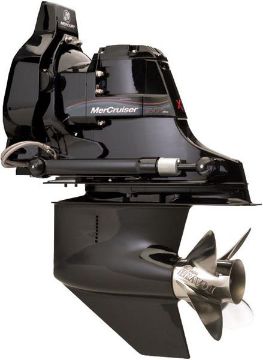

Bravo 1 X Sterndrive

$13,528.55 $8,860.23
Bravo One X for Gas Sterndrives with Dual Water Pickup. Designed to handle the power of big block engines. Longer torpedo and deeper skeg for control at all speeds. Gimbal, trim cylinders and prop sold separately. Choose your ratio and see your discounted price.
Picture of Bravo 1 XR Sterndrive

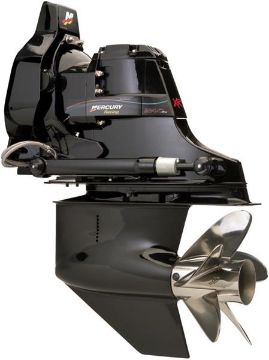

Bravo 1 XR Sterndrive

$0.00
Bravo One XR Sterndrive. Choose from 1.35 or 1.50 ratio below. 1 year factory warranty. Prop, trim cylinders and gimbal housing sold separately. May require payment via Wire/ACH transfer.
Picture of Bravo 2 X Sterndrive

Bravo 2 X Sterndrive

$13,528.55 $11,230.81
Bravo Two X Diesel Sterndrive - Handling the biggest with the best.
Gimbal housing with trim cylinders and props sold separately. See below for specs and discounted pricing. Our stock changes rapidly, so please contact us for availability!
Picture of Bravo 3 X DWP Sterndrive

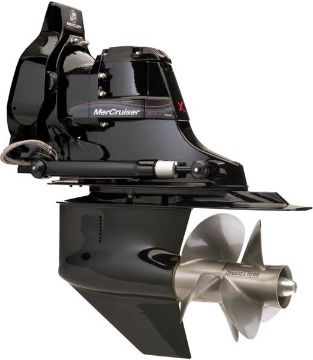

Bravo 3 X DWP Sterndrive
