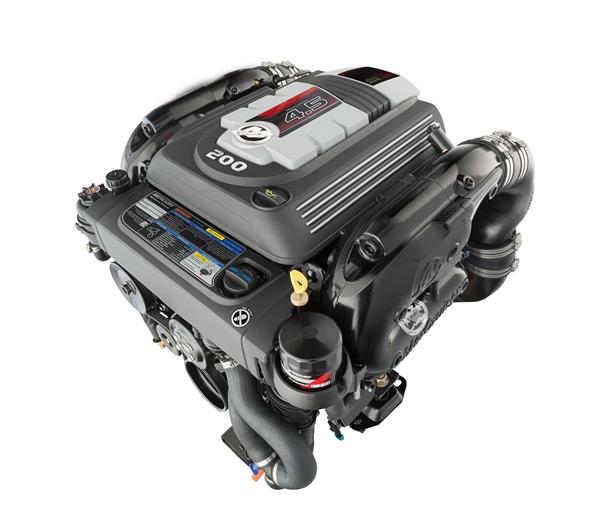

4.5L MPI 200 Alpha

The Next Generation Featuring a host of engineering innovations, the 4.5L series establishes new standards for power-to-weight ratio, driver experience, acceleration, durability, and ease of maintenance.
Manufacturer part number: 40450083A to 40450086A
*
*
Please use the Contact Us tab for pricing & availability
Product Shipping specifications = pounds and inches

SPECIFICATIONS

HP / kW
  • 200 / 149
Maximum RPM (WOT)
  • 4400-4800
Engine type
  • V6, 2-valve/cylinder pushrod
Displacement (L)
  • 4.5
Bore and stroke
  • 4.0 x 3.6" / 102 x 92 mm
Recommended fuel
  • Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Fuel ethanol tolerance
  • Up to 10%
Fuel requirement
  • 90 RON 10% Ethanol Maximum
  • Unleaded Regular 87 Octane Minimum (R+M/2)
Engine control system
  • Mechanical Shifting with Optional SmartCraft DTS
  • Standard SmartCraft with Electronic Throttle Control
Fuel delivery system
  • Computer controlled Multi-Port Electronic Fuel Injection (MPI)
Air induction
  • Performance-Tuned Scroll Intake Manifold
Ignition
  • SmartCraft PCM 112 Digital Inductive
Alternator amp / Watt
  • 70 amp / 882 watt (Belt-Driven)
Water drain system
  • Easy Drain "Season Extender"
Exhaust system
  • Through prop
Cooling system
  • Water cooled with thermostat; FWC available as factory option
Lubrication system
  • Integrated wet sump
Recommended oil
  • NMMA Certified FCW 25W-40 Synthetic Blend
Engine guardian system
  • SmartCraft Engine Guardian
Dimensions (L x W x H)
  • 28 x 30 x 22" / 696 x 740 x 559 mm
Weight (engine only)
  • 761 lbs / 345 kg
Compatible drives
  • Alpha
