Mercury Racing 520 Sterndrive Engine

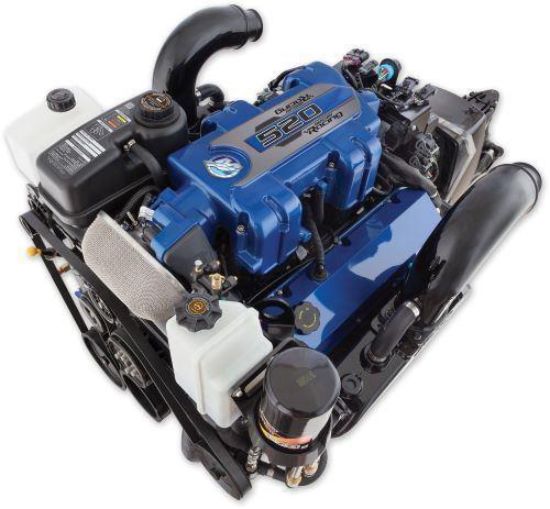

New Mercury Racing 520 Engine Mercury racing 520 HP sterndrive engine packages Picture of Mercury Racing 520 Sterndrive Engine
The Mercury 520 EFI Racing engine is Mercury Racing’s most versatile engine. A great low cost sterndrive engine with 2-year limited factory warranty. We have complete discounted packages with Bravo 1 XR Drives & HP Transoms or XR ITS (integrated transom system) packages.
Please use the Contact Us tab for pricing & availability
Product Shipping specifications = pounds and inches

The 520 EFI is one of the most versatile of Mercury Racing engines in the line-up. The size, drive options, and power makes this a great choice for a variety of vessels from sport boats to cruisers. Standard closed cooling protects the engine from corrosion.  We have discounted prices for packages!

2 year standard factory limited warranty with up to 5 total available!

The naturally aspirated 520 engine provides recreational boaters a cost effective power option that fits nicely, in both value and performance, between the MerCruiser 8.2L MAG HO and Mercury Racing 540. This low-cost sterndrive engine features digital throttle and shift (DTS) and of course, is backed by an unprecedented two-year limited factory warranty.

Applications require through-transom exhaust. Optional X-haust Noise Reducer Kit available.

  • HORSEPOWER: 520 (388 kW)

  • FULL THROTTLE RPM RANGE: 4800-5200

  • DISPLACEMENT LITER/C.I.D: 8.6/523

  • BORE (IN/MM): 4.56/115.8

  • STROKE (IN/MM): 4.00/101.6

  • COMPRESSION RATIO: 8.7:1

  • CYLINDERS: V-8

  • ALTERNATOR (AMP/WATT)65/917

  • IGNITION TYPE: PCM

  • FUEL SYSTEM: Sequential Fuel Injection

  • FUEL REQUIREMENTS: 87 Octane Minimum (R+M/2), (91 RON) Global

  • DRIVE UNIT: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (std. & short), Bravo Three XR; (Integrated Transom System Optional)

  • GEAR RATIO: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (std. & short), 1.35:1, 1.50:1, Bravo Three XR, 1.65:1, 1.81:1 or 2.00:1

  • LENGTH(in/mm): 34.2/869 (Transom mount to front of engine)

  • WIDTH(in/mm): 33.8/858

  • HEIGHT(in/mm): 24.2/615

  • WEIGHT(lbs/kg): 1,218/553 (Lightest available engine package (engine, transom plate and drive)

  • WARRANTY: 2-Year limited factory warranty for recreational boating. 3 Years extra warranty is available.

The 520 EFI is one of the most versatile of Mercury Racing engines in the line-up. The size, drive options, and power makes this a great choice for a variety of vessels from sport boats to cruisers. Standard closed cooling protects the engine from corrosion.  We have discounted prices for packages!

2 year standard factory limited warranty with up to 5 total available!

The naturally aspirated 520 engine provides recreational boaters a cost effective power option that fits nicely, in both value and performance, between the MerCruiser 8.2L MAG HO and Mercury Racing 540. This low-cost sterndrive engine features digital throttle and shift (DTS) and of course, is backed by an unprecedented two-year limited factory warranty.

Applications require through-transom exhaust. Optional X-haust Noise Reducer Kit available.

  • HORSEPOWER: 520 (388 kW)

  • FULL THROTTLE RPM RANGE: 4800-5200

  • DISPLACEMENT LITER/C.I.D: 8.6/523

  • BORE (IN/MM): 4.56/115.8

  • STROKE (IN/MM): 4.00/101.6

  • COMPRESSION RATIO: 8.7:1

  • CYLINDERS: V-8

  • ALTERNATOR (AMP/WATT)65/917

  • IGNITION TYPE: PCM

  • FUEL SYSTEM: Sequential Fuel Injection

  • FUEL REQUIREMENTS: 87 Octane Minimum (R+M/2), (91 RON) Global

  • DRIVE UNIT: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (std. & short), Bravo Three XR; (Integrated Transom System Optional)

  • GEAR RATIO: Bravo One XR, Bravo One XR Sport, Bravo One XR Sport Master (std. & short), 1.35:1, 1.50:1, Bravo Three XR, 1.65:1, 1.81:1 or 2.00:1

  • LENGTH(in/mm): 34.2/869 (Transom mount to front of engine)

  • WIDTH(in/mm): 33.8/858

  • HEIGHT(in/mm): 24.2/615

  • WEIGHT(lbs/kg): 1,218/553 (Lightest available engine package (engine, transom plate and drive)

  • WARRANTY: 2-Year limited factory warranty for recreational boating. 3 Years extra warranty is available.
Products specifications
Propshaft Horsepower 520
Displacement (Liter) 8.6
Maximum RPM (WOT) 4800-5200
Fuel Requirement Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON
Warranty 2 Year
*
*
*
*
Products specifications
Propshaft Horsepower 520
Displacement (Liter) 8.6
Maximum RPM (WOT) 4800-5200
Fuel Requirement Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON
Warranty 2 Year
